Remove/Install Brake Fluid Reservoir - Ar42.10-D-0308TS
Model 907
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on working on clutch operating system | Model 907 | AH25.20-N-0003-01TS | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Extract brake fluid from brake fluid reservoir (1). | Extraction bellows |
|
| 2 | Remove feed hose (2) from clutch master cylinder. | Model 907 |

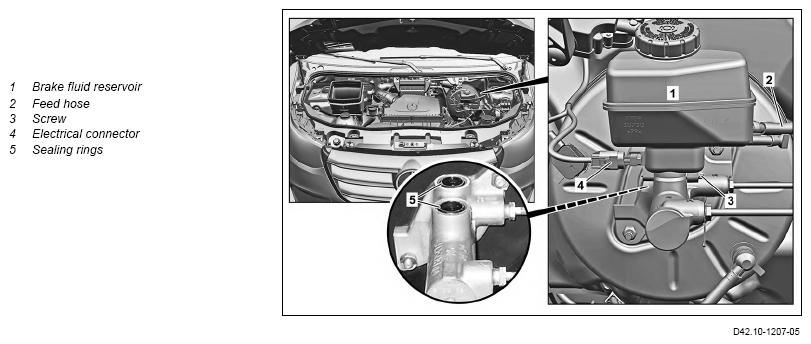

Fig 1 |
| 3 | Disconnect electrical connector (4). | ||
| Clean | |||
| 4 | Clean area surrounding brake fluid reservoir (1) to master brake cylinder. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 5 | Remove bolt (3). | *BA42.10-N-1002-05TS | |
| 6 | Remove brake fluid reservoir (1). | Fig 1 | |
| 7 | Install in the reverse order. | ||
| Bleeding | |||
| 8 | Bleed brake system. | AR42.10-D-0010TS | |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA42.10-N-1002-05TS | Screw/bolt, brake fluid reservoir to master brake cylinder | Nm | 7 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
