Remove/Install Central Locking System Antenna Amplifier - Ar80.20-D-0002TS
Model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove cover for center loudspeaker | AR68.30-D-3446TS | |

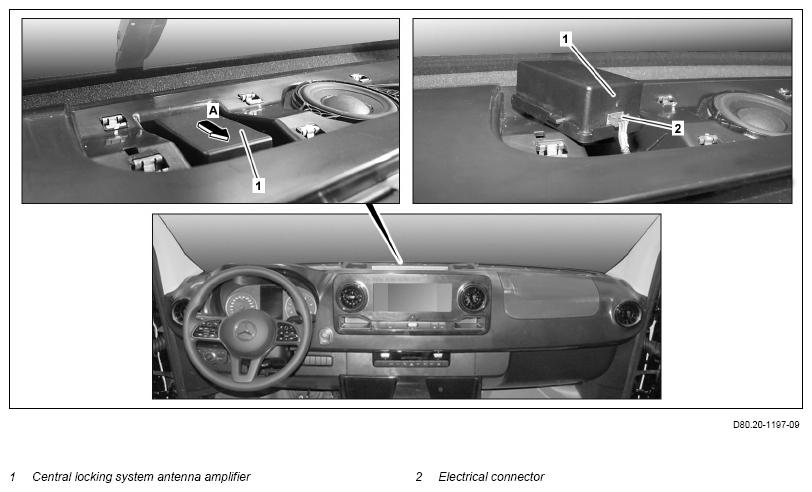

| 3 | Unclip the central locking system antenna amplifier (1) to the rear in the direction of the arrow (arrow A) and move it upwards until the electrical connector (2) can be accessed | wsm://04 201711 01 Operation steps 3 to 4 are shown here. |
Fig 1 |
| 4 | Disconnect electrical connector (2) and remove central locking system antenna amplifier (1) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Carry out a function check of the central locking with transmitter key |
