PARAMETERIZABLE Special Module (PSM) Control Unit Connector Assignment - GF54.21-D-0002-04TSC
Model 907
with code ED5 (Parameterisable special module)
Two electric steps, right and left
Pin assignment for two electric steps, one each on right and left

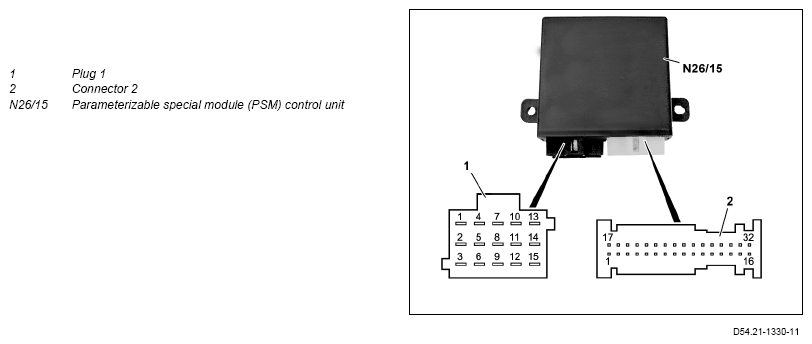

PLUG 1
| Pin no. | Use | Assignment | Function |
|---|---|---|---|
| 1 | Tml. 30_2 | Tml. 30 | Voltage supply |
| 2 | Multifunction output 02 | 10 A, tml. 30_2 | - |
| 3 | Multifunction output 05 | 5 A, tml. 30_2 | - |
| 4 | Tml. 30_2 | Tml. 30 | Voltage supply |
| 5 | Multifunction output 01 | 5 A, tml. 30_2 | - |
| 6 | Multifunction output 18 | 5 A, tml. 30_2 | - |
| 7 | Multifunction output 04 | 10 A, tml. 30_1 | - |
| 8 | Not used | Not used | - |
| 9 | Ground return conductor (maximum 7.5 A) | Tml. 31 | - |
| 10 | Tml. 30_1 | Tml. 30 | Voltage supply |
| 11 | Multifunction output 03 | 5 A, bridge, tml. 30_1 | Input, switch, working speed regulator on/off - High Side (code M53 (Constant rpm control) or code MT4 (Variable electronic rpm governor)) |
| 12 | Multifunction output 19 | 5 A, tml. 30_1 | - |
| 13 | Tml. 30 1 | Tml. 30 | - |
| 14 | Multifunction output 20 | 5 A, bridge, tml. 30_1 | - |
| 15 | Tml. 31 | Tml. 31 | Ground connection |
CONNECTOR 2
| Pin no. | Use | Assignment | Function |
|---|---|---|---|
| 1 | Multifunction output 11 | 0.5 A Low Side | Left sliding door electric step |
| 2 | Multifunction output 14 | 0.5 A Low Side | Left sliding door electric step |
| 3 | Multifunction output 15 | 0.5 A Low Side, travel distance signal (not configurable) | - |
| 4 | Multifunction output 08 | 0.5 A High Side KL30_1 | Function lighting, switch, working speed regulator on/off - High Side (code M53 (Constant rpm control) or code MT4 (Variable electronic rpm governor)) |
| 5 | Multifunction output 09 | 0.5 A High Side KL30_1 | - |
| 6 | Multifunction output 10 | 0.5 A High Side KL30_1 | - |
| 7 | Multifunction input 05 | Low Side | - |
| 8 | Multifunction input 06 | Analog | - |
| 9 | Multifunction input 01 | Analog | Right sliding door electric step and left sliding door electric step |
| 10 | Multifunction input 10 | Analog | - |
| 11 | Multifunction input 07 | Analog | Right sliding door electric step and left sliding door electric step |
| 12 | Not used | Not used | - |
| 13 | Ground return conductor 1 (maximum 1 A) | Tml. 31 | - |
| 14 | PSM CAN shielding (ground connection) | Shielding | Shielding |
| 15 | Ground return conductor 2 (maximum 1 A) | Tml. 31 | - |
| 16 | Body manufacturer CAN (CAN ABH) | (CAN ABH_H) | - |
| 17 | Multifunction output 13 | 1 A Low Side | Right sliding door electric step and left sliding door electric step |
| 18 | Multifunction output 17 | 1 A Low Side | - |
| 19 | Multifunction output 12 | 0.5 A Low Side | Right sliding door electric step and left sliding door electric step |
| 20 | Multifunction output 07 | 1 A High-Side KL30_1 | - |
| 21 | Multifunction output 06 | 1 A High-Side KL30_1 | - |
| 22 | Multifunction output 16 | 0.5 A High Side KL30_1 | - |
| 23 | Multifunction input 04 | High Side | Right sliding door electric step and left sliding door electric step |
| 24 | Multifunction input 08 | Analog | - |
| 25 | Multifunction input 09 | Analog | Right sliding door electric step and left sliding door electric step |
| 26 | Multifunction input 02 | High Side | - |
| 27 | Multifunction input 03 | High Side | - |
| 28 | Interior CAN (CAN B) | (CAN B_L) | - |
| 29 | Interior CAN (CAN B) | (CAN B_H) | - |
| 30 | Peripheral device CAN (CAN AE) | (CAN AE_L) | - |
| 31 | Peripheral device CAN (CAN AE) | (CAN AE_H) | - |
| 32 | Body manufacturer CAN (CAN ABH) | (CAN ABH_L) | - |
