Remove/Install Lockable Stowage Compartment In Stowage Box/Tray Above Windshield - Ar68.30-D-5580TS

Model 907

	Notes on carrying out repair work in the vehicle interior	AH68.00-N-0001-01S
	Remove/install

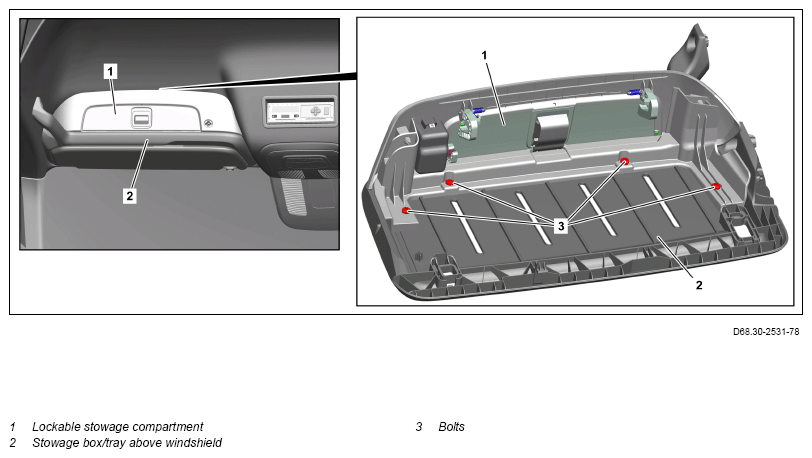

1	Open lockable stowage compartment (1).
2	Remove stowage box/tray above windshield (2) with lockable stowage compartment (1) attached.	AR68.30-D-5577TS
3	Remove screw/bolts (3).
4	Remove lockable stowage compartment (1) from stowage box/tray above windshield (2).
5	Install in the reverse order.
	Check
6	Check opening and closing function of lockable stowage compartment (1).
7	Check locking function of lockable stowage compartment (1).
