Remove/Install Cover For Center Speaker - Ar68.30-D-3446TS
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||

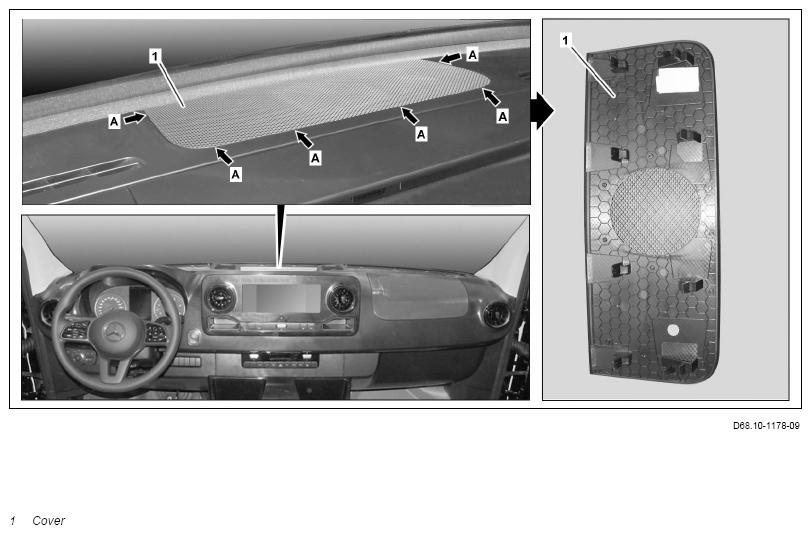

| 1 | Unclip and remove cover (1) from instrument panel (arrows A) | Carefully unclip the cover (1) from the instrument panel. Otherwise, damage can occur to the cover (1) |
|
| Fig 1 | |||
| 2 | Install in the reverse order |
