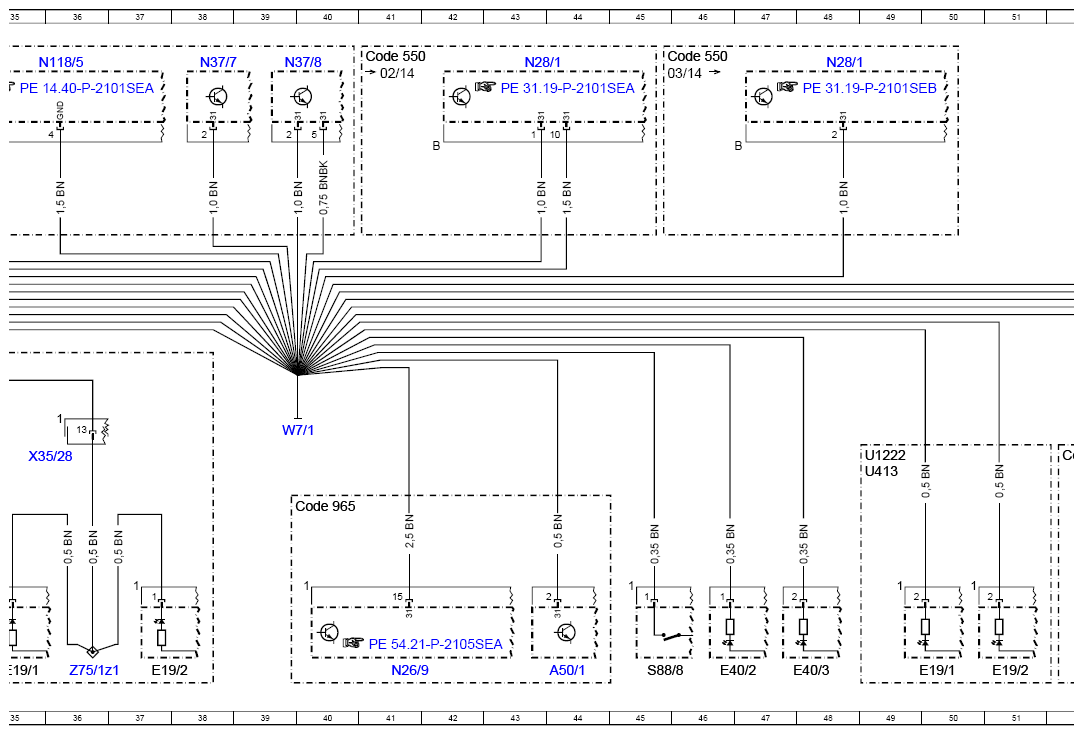

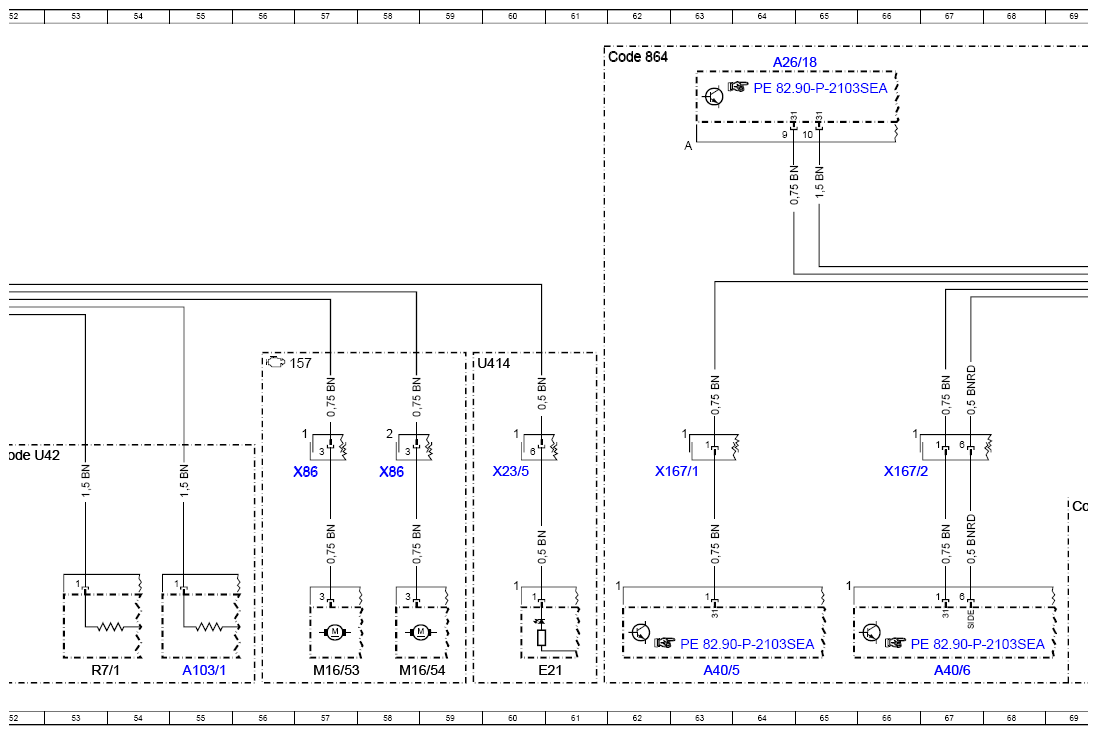

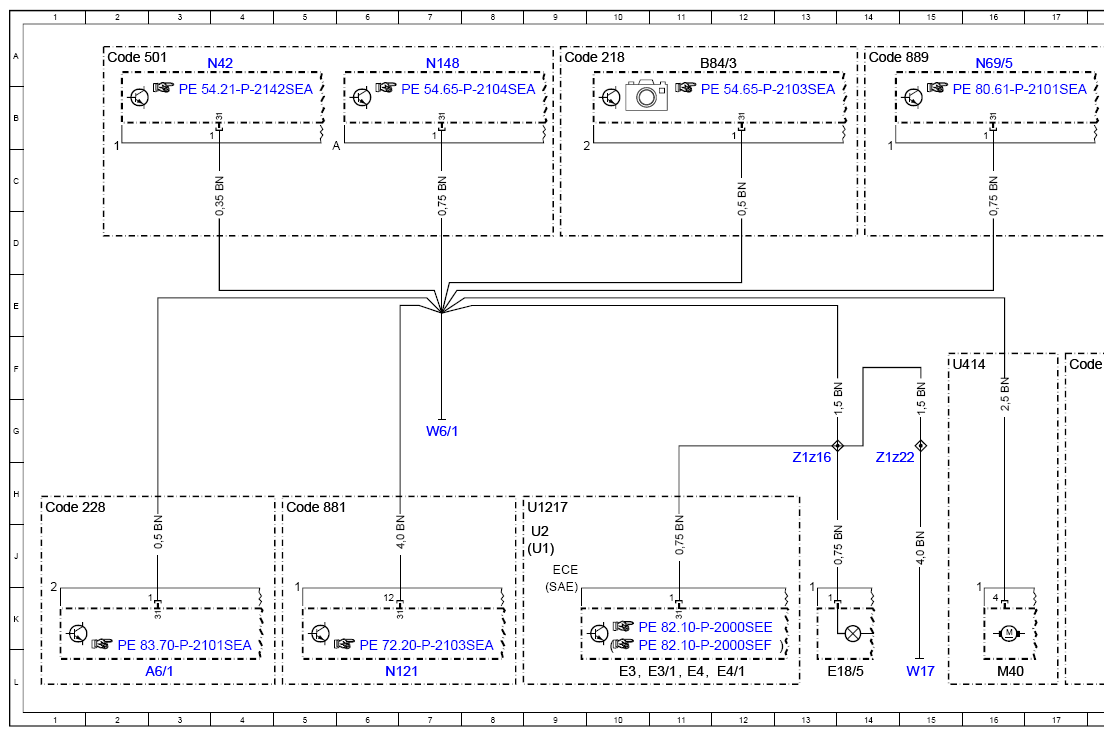

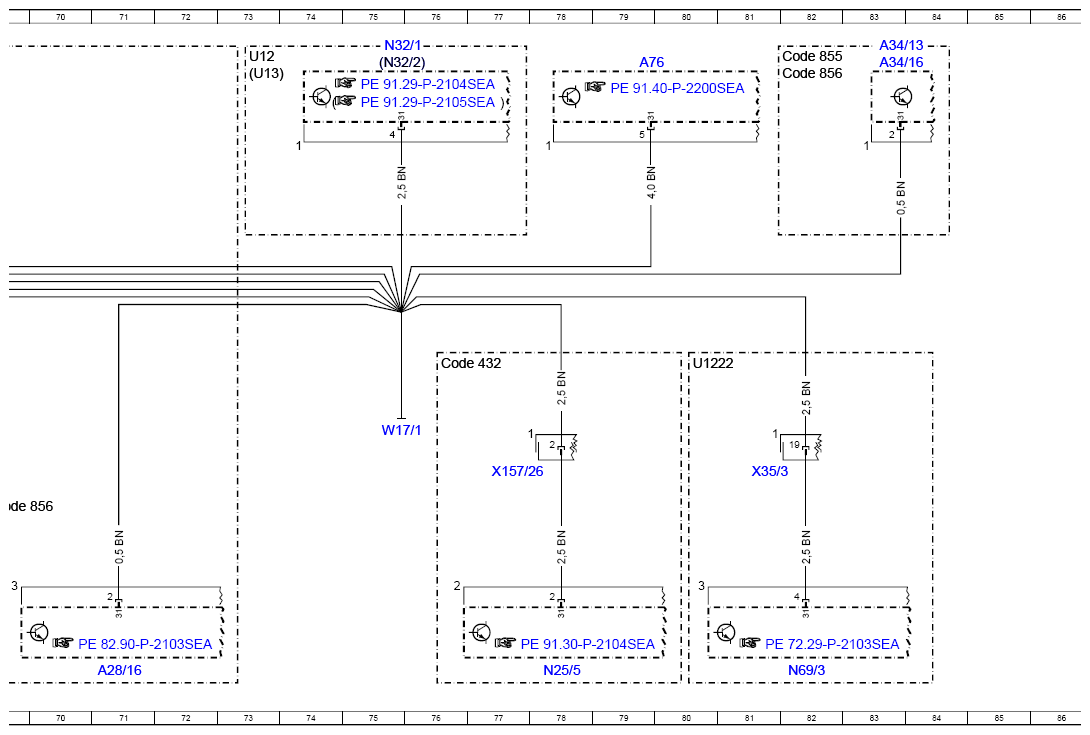

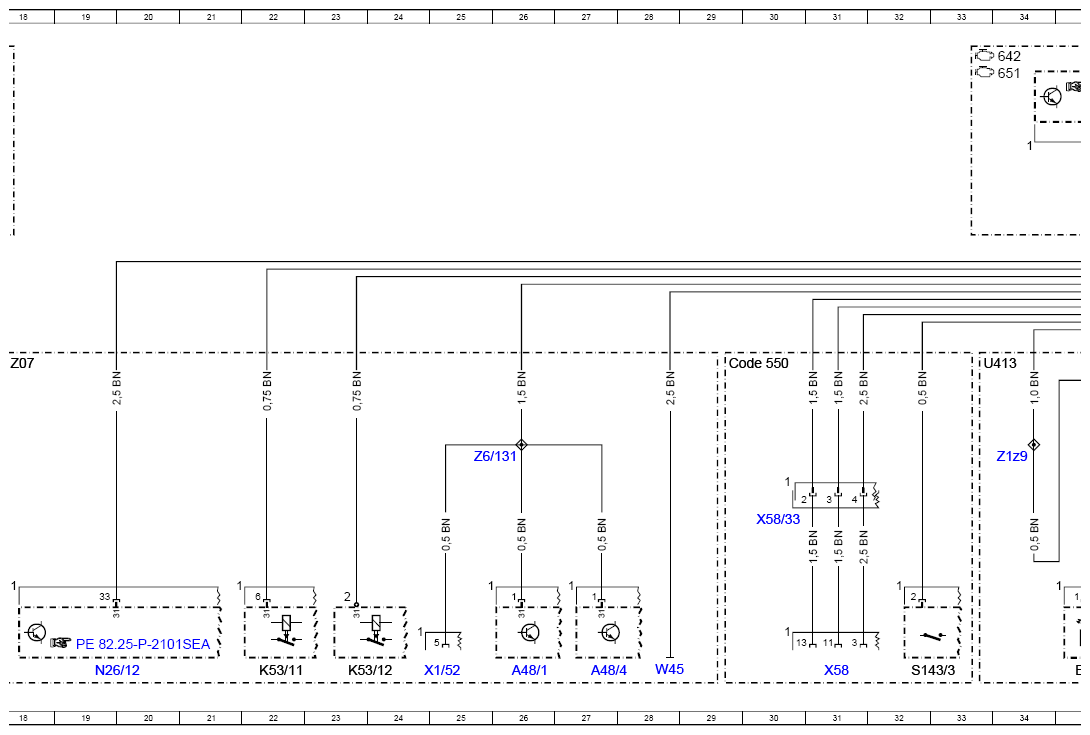

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97SEB
Model 217 up to model year 2018
W6/1, W7/1, W17/1
Model 222 up to model year 2018
W6/1, W7/1, W17/1
| Code: | Designation: | Position: |
|---|---|---|

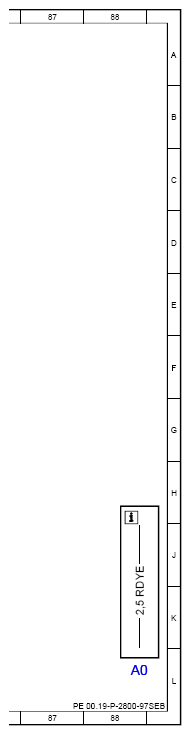

| A0 | Use of wiring diagrams | 88L |
| A103/1 | AdBlue® tank module | 55L |
| A26/18 | Rear entertainment controller unit | 64A |
| A28/16 | Rear cellular telephone system antenna amplifier/compensator | 71L |
| A34/13 | Rear handset cradle | 83A |
| A34/16 | Rear handset | 83A |
| A40/5 | Left rear display | 63L |
| A40/6 | Right rear display | 67L |
| A48/1 | Special signal system operating unit | 26L |
| A48/4 | Guard operating unit | 27L |
| A50/1 | Mirror taximeter | 44L |
| A6/1 | Stationary heater radio remote control receiver | 3L |
| A76 | Left front reversible emergency tensioning retractor | 79A |
| B84/3 | Backup camera | 11A |
| Code 218 | Backup camera | 9A |
| Code 228 | Stationary heater | 1H |
| Code 432 | Left and right front dynamic multicontour seat | 76F |
| Code 501 | 360 degree camera | 2A |
| Code 550 | Trailer hitch | 29F |
| Code 550 | Trailer hitch | 41A |
| Code 550 | Trailer hitch | 45A |
| Code 855 | Telephony in rear passenger compartment | 82A |
| Code 856 | Business telephony in rear passenger compartment | 69H |
| Code 856 | Business telephony in rear passenger compartment | 82A |
| Code 864 | Rear compartment entertainment | 61A |
| Code 881 | Trunk lid control | 5H |
| Code 889 | KEYLESS-GO | 14A |
| Code 965 | Electrical preinstallation/rental vehicle | 39H |
| Code U42 | BlueTEC® diesel exhaust treatment | 52G |
| Code Z07 | Top protection | 17F |
| E18/5 | Left luggage compartment lamp | 14L |
| E19/1 | Left license plate lamp | 35L |
| E19/1 | Left license plate lamp | 50L |
| E19/2 | Right license plate lamp | 37L |
| E19/2 | Right license plate lamp | 51L |
| E21 | Center stop lamp | 60L |
| E3 | Left rear lamp unit | 10L |
| E3/1 | Inner left rear lamp unit | 11L |
| E4 | Right rear lamp unit | 11L |
| E4/1 | Inner right rear lamp unit | 12L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 46L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 48L |
| K53/11 | Emergency start system relay | 22L |
| K53/12 | Emergency start system relay (high current) | 23L |
| M16/53 | Left exhaust flap actuator motor | 57L |
| M16/54 | Right exhaust flap actuator motor | 58L |
| M40 | Multicontour seat pneumatic pump | 16L |
| N118/5 | AdBlue® control unit | 36A |
| N121 | Trunk lid control control unit | 6L |
| N148 | 360° camera control unit | 7A |
| N25/5 | Driver seat heater control unit | 78L |
| N26/12 | PAS [GAS] and special signal system control unit | 19L |
| N26/9 | Special-purpose vehicle multifunction control unit | 41L |
| N28/1 | Trailer recognition control unit | 43A |
| N28/1 | Trailer recognition control unit | 48A |
| N32/1 | Driver seat control unit | 75A |
| N32/2 | Front passenger seat control unit | 75A |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 38A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 39A |
| N42 | Camera cover control unit | 4A |
| N69/3 | Left rear door control unit | 82L |
| N69/5 | KEYLESS-GO control unit | 16A |
| R7/1 | AdBlue® pressure line heating element | 53L |
| S143/3 | Trailer hitch switch | 32L |
| S88/8 | Trunk lid/liftgate external operation switch | 45L |
| U1 | Valid for USA | 9J |
| U12 | Valid for left-hand drive vehicles | 73A |
| U1217 | Valid for model series 217 | 9H |
| U1222 | Valid for model series 222 | 49G |
| U1222 | Valid for model series 222 | 80F |
| U13 | Valid for right-hand drive vehicles | 73A |
| U2 | Valid for all except USA | 9J |
| U413 | Valid for model 217.3 | 33F |
| U413 | Valid for model 217.3 | 49H |
| U414 | Valid for model 217.4 | 15F |
| U414 | Valid for model 217.4 | 59F |
| W17 | Right rear seat ground point | 15L |
| W17/1 | Left rear seat ground point | 75G |
| W45 | Equipment carrier plate ground connection | 28L |
| W6/1 | Left taillamp trunk ground point | 7G |
| W7/1 | Right taillamp trunk ground point | 39G |
| X1/52 | Government vehicle peripheral devices electrical connector | 25L |
| X157/26 | Driver seat heater control unit ambiance illumination electrical connector | 77H |
| X167/1 | Driver-side rear seat entertainment system electrical connector | 63H |
| X167/2 | Passenger-side rear seat entertainment system electrical connector | 66H |
| X23/5 | Electrical connector/soft top compartment lid | 60H |
| X35/28 | Rear bumper parking system electrical connector | 36G |
| X35/3 | Left rear door electrical connector | 81H |
| X58 | Trailer socket | 31L |
| X58/33 | Vehicle interior/trailer hitch electrical connector | 30J |
| X86 | Exhaust flap electrical connector | 57H |
| X86 | Exhaust flap electrical connector | 58H |
| Z1z16 | Circuit 31 connector sleeve | 13G |
| Z1z22 | Circuit 31 connector sleeve | 14G |
| Z1z9 | Circuit 31 connector sleeve | 34G |
| Z6/131 | Operating units terminal 31 connector sleeve | 26G |
| Z75/1z1 | License plate lamp connector sleeve | 36L |
