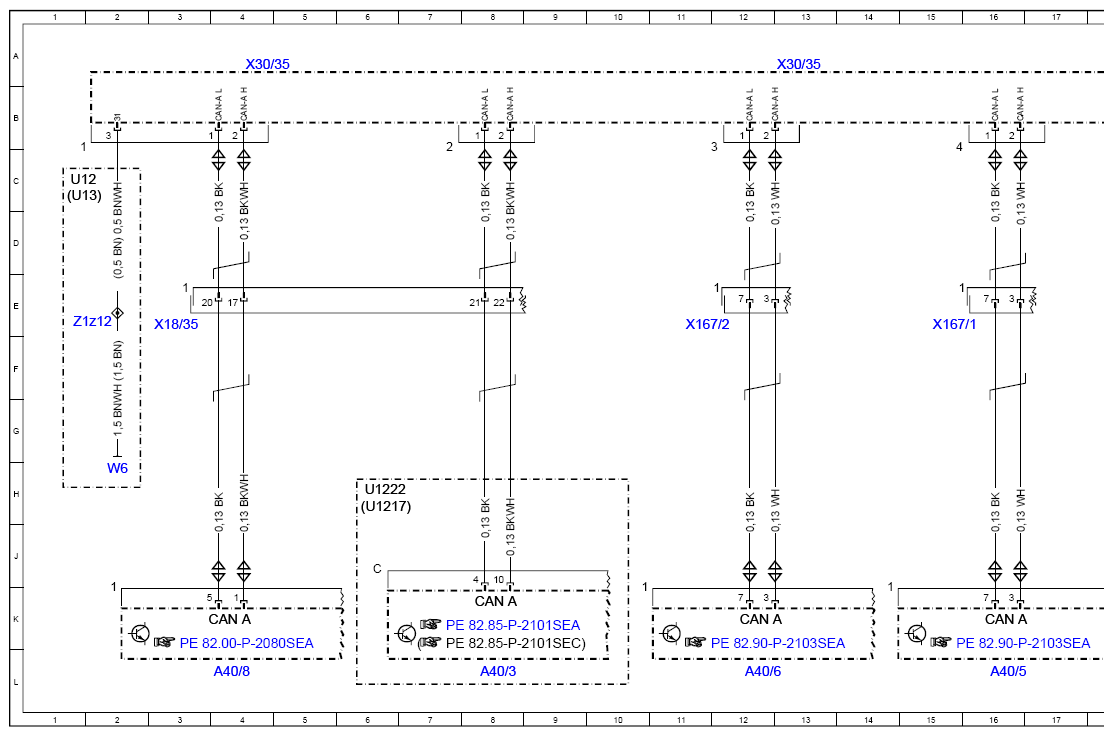

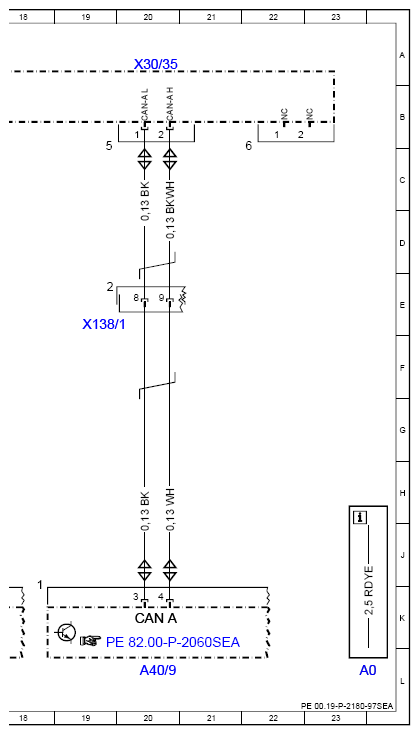

Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97SEA
Model 217 up to model year 2018 Potential distributor X30/35
Model 222 up to model year 2018 Potential distributor X30/35
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A40/3 | COMAND control unit | 8L |
| A40/5 | Left rear display | 16L |
| A40/6 | Right rear display | 12L |
| A40/8 | Audio/COMAND display | 4L |
| A40/9 | Audio/COMAND control panel | 20L |
| CAN A | Telematics CAN | 12K |
| CAN A | Telematics CAN | 16K |
| CAN A | Telematics CAN | 20K |
| CAN A | Telematics CAN | 4K |
| CAN A | Telematics CAN | 8K |
| U12 | Valid for left-hand drive vehicles | 1C |
| U1217 | Valid for model series 217 | 6H |
| U1222 | Valid for model series 222 | 6H |
| U13 | Valid for right-hand drive vehicles | 1C |
| W6 | Left wheel arch trunk ground point | 2H |
| X138/1 | Front center console electrical connector | 19E |
| X167/1 | Driver-side rear seat entertainment system electrical connector | 15E |
| X167/2 | Passenger-side rear seat entertainment system electrical connector | 11E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 3E |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 4A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 13A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 20A |
| Z1z12 | Circuit 31 connector sleeve | 2E |
