Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97SEC
Model 217 up to model year 2018
Z68/27z1
Model 222 up to model year 2018
Z68/27z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A9/5 | Electric refrigerant compressor | 7L |
| Code ME04 | Mild hybrid drive | 5H |
| N22/1 | Climate control control unit | 2L |
| X18/28 | Left cockpit/engine compartment electrical connector | 2E |

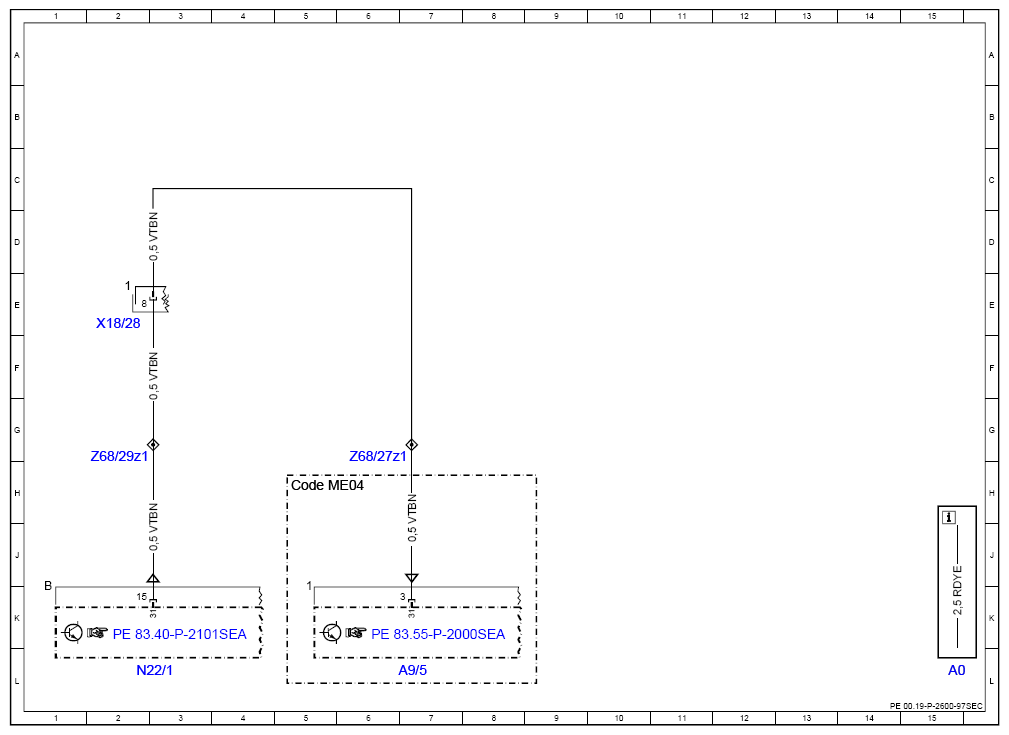

| Z68/27z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 6G |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 2G |
