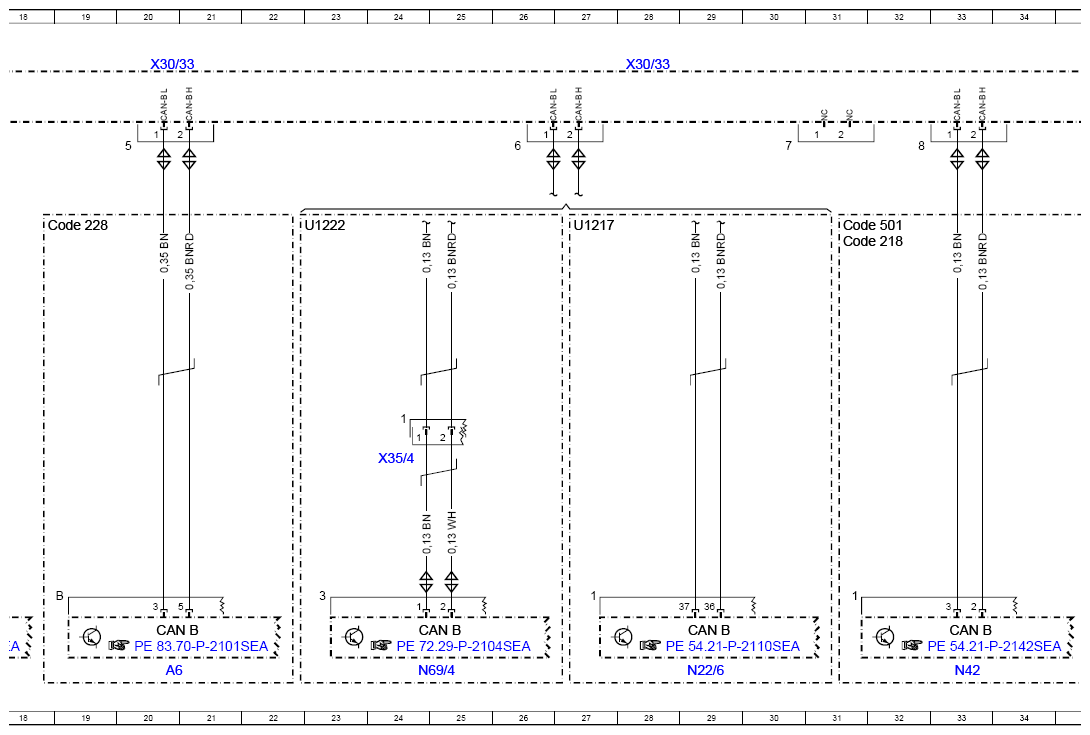

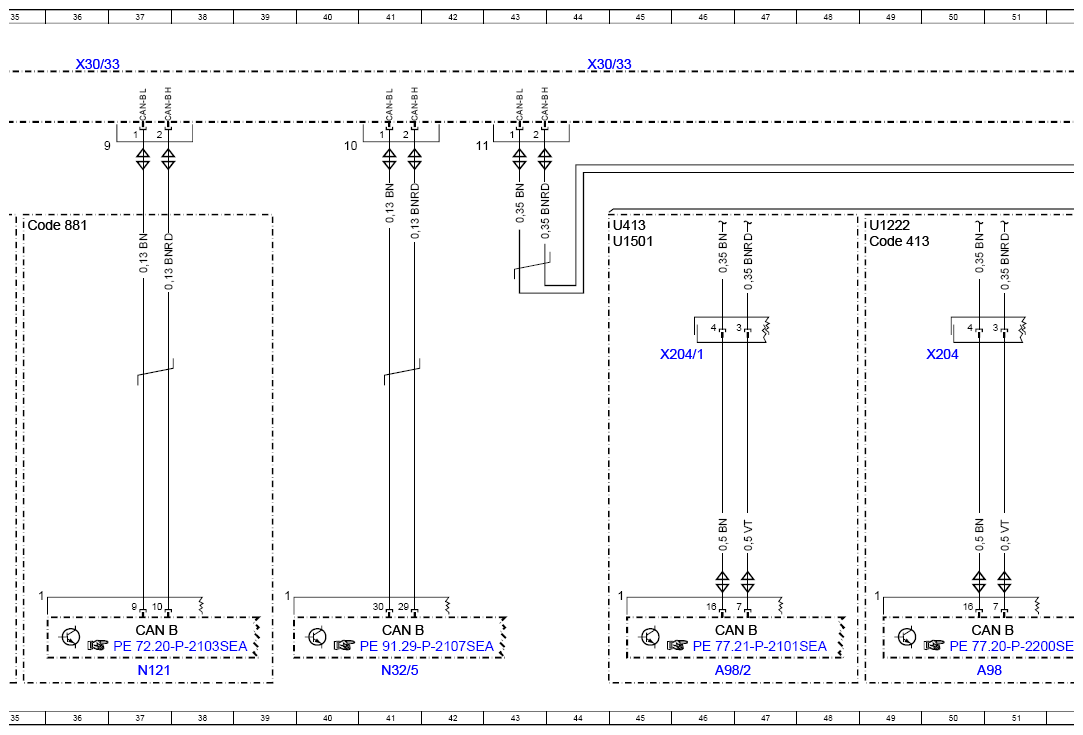

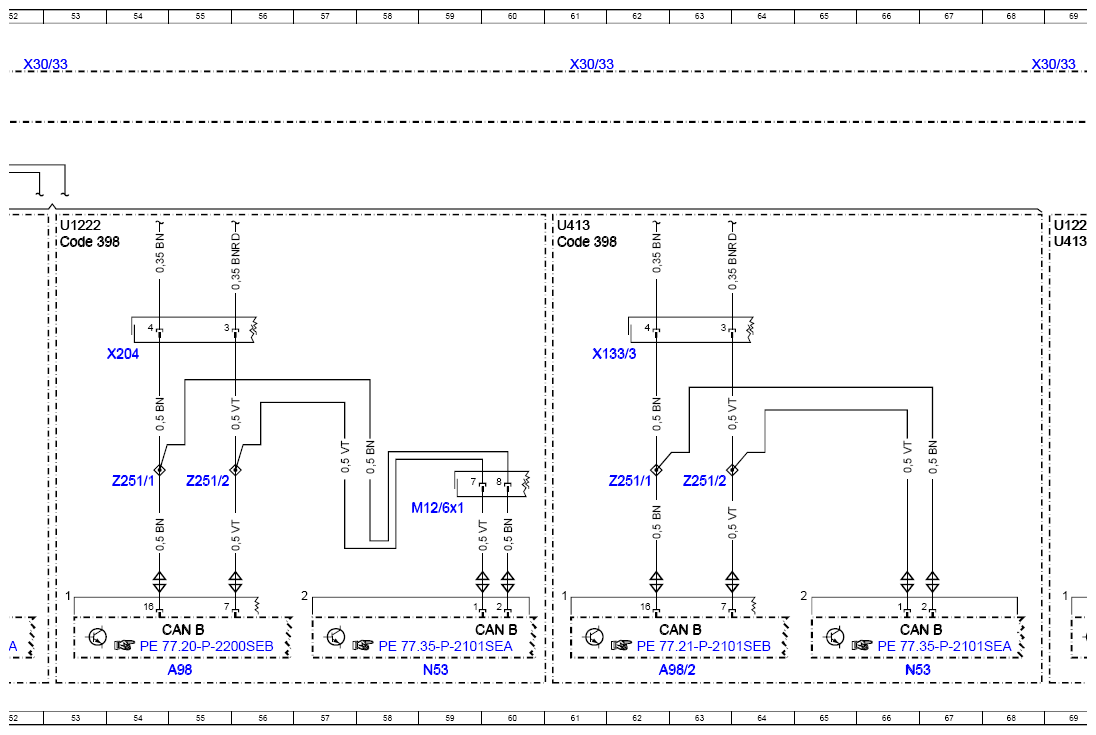

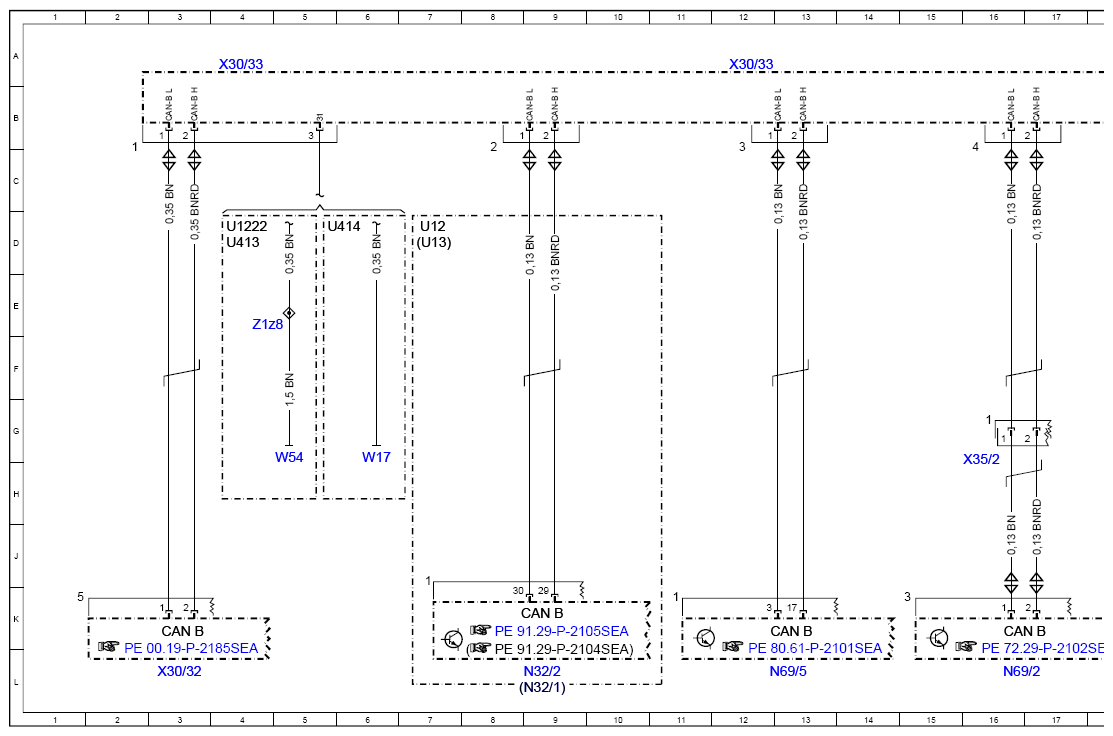

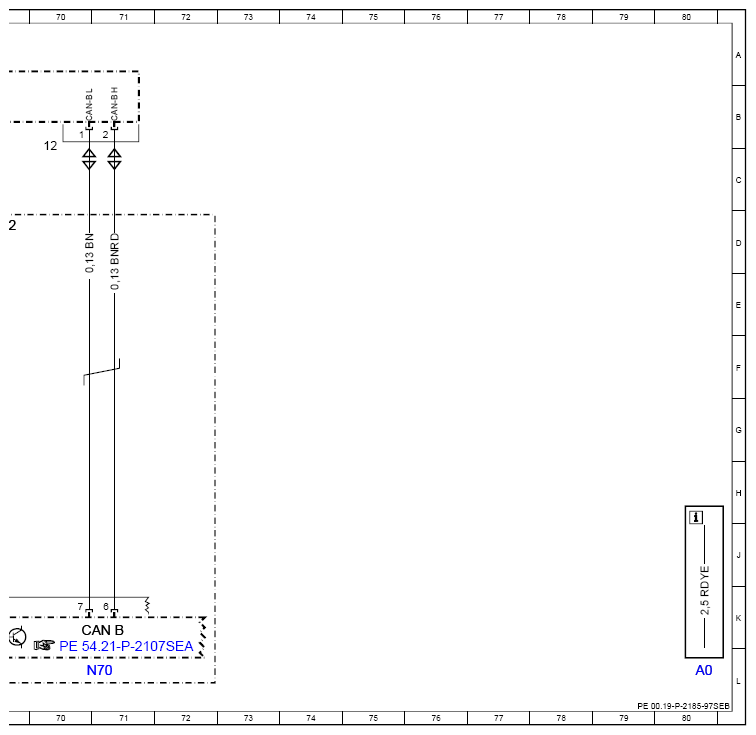

Wiring Diagram Of Interior CAN - PE00.19-P-2185-97SEB
Model 217 up to model year 2018 Potential distributor X30/33, right
Model 222 up to model year 2018 Potential distributor X30/33, right
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A6 | Stationary heater unit | 20L |
| A98 | Panoramic sliding roof control module | 50L |
| A98 | Panoramic sliding roof control module | 55L |
| A98/2 | Panoramic roof roller sun blind control module | 46L |
| A98/2 | Panoramic roof roller sun blind control module | 62L |
| CAN B | Interior CAN | 9K |
| CAN B | Interior CAN | 3K |
| CAN B | Interior CAN | 13K |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 25K |
| CAN B | Interior CAN | 33K |
| CAN B | Interior CAN | 37K |
| CAN B | Interior CAN | 41K |
| CAN B | Interior CAN | 71K |
| CAN B | Interior CAN | 29K |
| CAN B | Interior CAN | 46K |
| CAN B | Interior CAN | 50K |
| CAN B | Interior CAN | 60K |
| CAN B | Interior CAN | 66K |
| CAN B | Interior CAN | 55K |
| CAN B | Interior CAN | 63K |
| Code 218 | Backup camera | 31D |
| Code 228 | Stationary heater | 18D |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 61D |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 53D |
| Code 413 | Panoramic sliding sunroof | 49D |
| Code 501 | 360 degree camera | 31D |
| Code 881 | Trunk lid control | 35D |
| M12/6x1 | Rear panoramic sliding sunroof roller sun blind drive unit electrical connector | 59H |
| N121 | Trunk lid control control unit | 37L |
| N22/6 | Rear control unit | 29L |
| N32/1 | Driver seat control unit | 9L |
| N32/2 | Front passenger seat control unit | 9L |
| N32/5 | Right rear seat control unit | 41L |
| N42 | Camera cover control unit | 33L |
| N53 | MAGIC SKY CONTROL control unit | 59L |
| N53 | MAGIC SKY CONTROL control unit | 66L |
| N69/2 | Right front door control unit | 16L |
| N69/4 | Right rear door control unit | 24L |
| N69/5 | KEYLESS-GO control unit | 13L |
| N70 | Overhead control panel control unit | 71L |
| U12 | Valid for left-hand drive vehicles | 7D |
| U1217 | Valid for model series 217 | 27D |
| U1222 | Valid for model series 222 | 22D |
| U1222 | Valid for model series 222 | 53D |
| U1222 | Valid for model series 222 | 49D |
| U1222 | Valid for model series 222 | 4D |
| U1222 | Valid for model series 222 | 69D |
| U13 | Valid for right-hand drive vehicles | 7D |
| U1501 | Valid without code (398) Panoramic roof with MAGIC SKY CONTROL | 45D |
| U413 | Valid for model 217.3 | 45D |
| U413 | Valid for model 217.3 | 61D |
| U413 | Valid for model 217.3 | 4D |
| U413 | Valid for model 217.3 | 69D |
| U414 | Valid for model 217.4 | 5D |
| W17 | Right rear seat ground point | 6G |
| W54 | Right rear wheel well ground point | 5G |
| X133/3 | MAGIC SKY CONTROL electrical connector | 62F |
| X204 | Panoramic sliding roof electrical connector | 50F |
| X204 | Panoramic sliding roof electrical connector | 54F |
| X204/1 | Panoramic roof roller sun blind electrical connector | 46F |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 3L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 4A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 28A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 36A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 44A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 52A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 68A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 61A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 20A |
| X35/2 | Right front door electrical connector | 16H |
| X35/4 | Right rear door electrical connector | 24H |
| Z1z8 | Circuit 31 connector sleeve | 4E |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 54H |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 62H |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 55H |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 63H |
