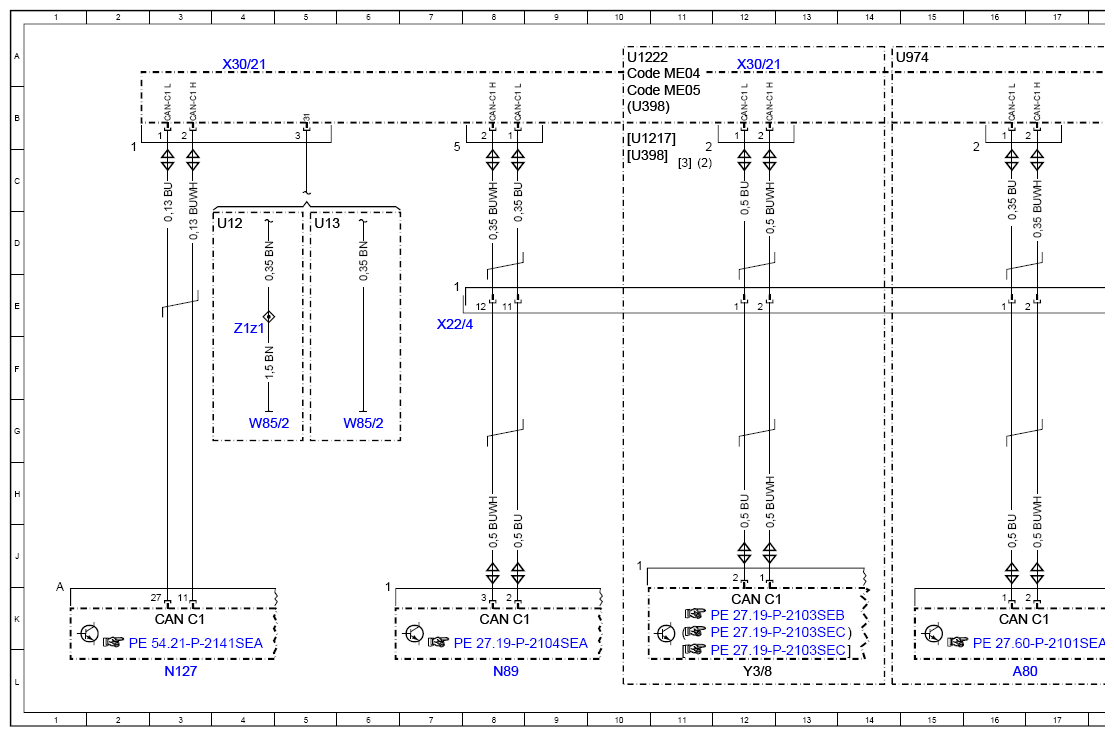

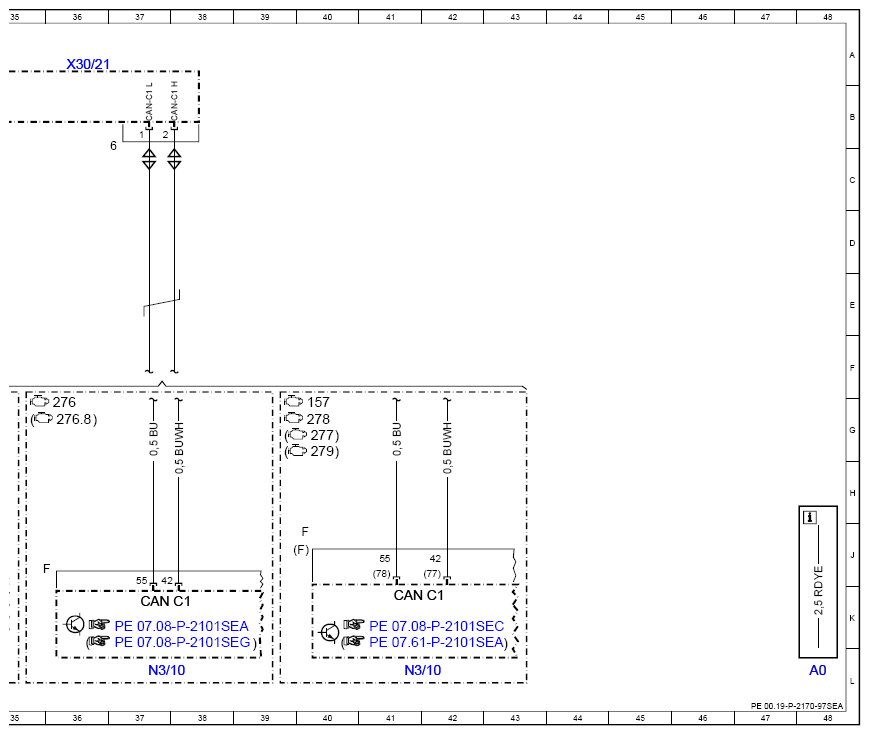

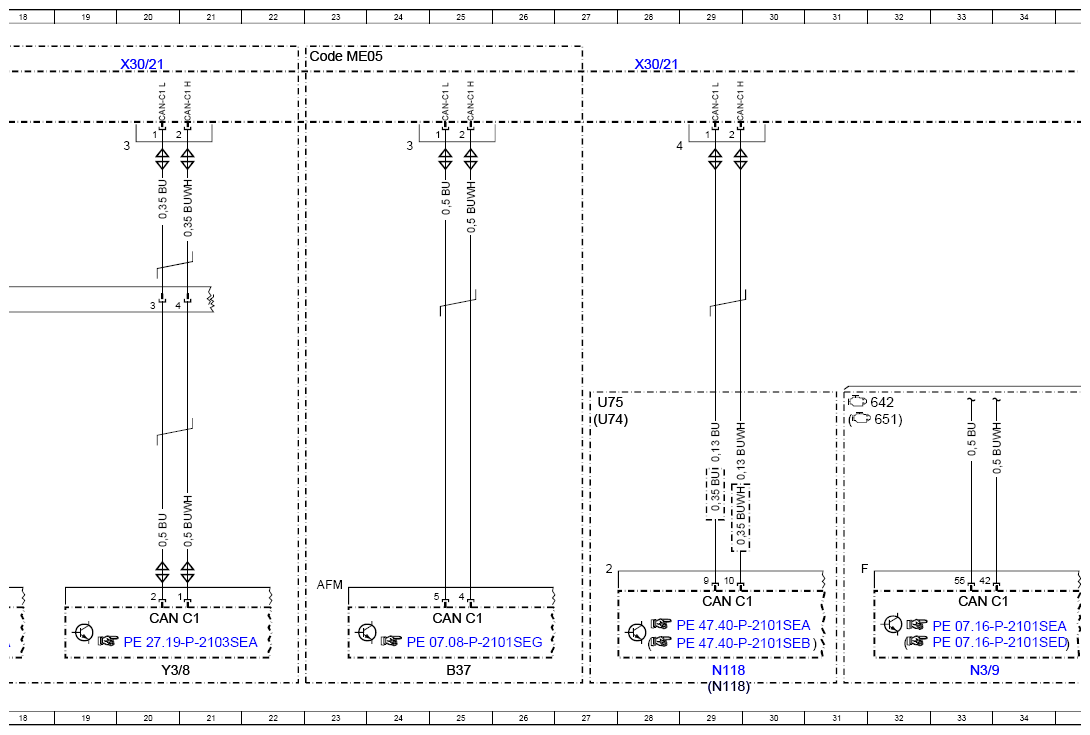

Wiring Diagram Of Drive Train CAN - PE00.19-P-2170-97SEA
Model 217 up to model year 2018 Potential distributor X30/21
Model 222 up to model year 2018 Potential distributor X30/21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A80 | Intelligent servo module for DIRECT SELECT | 16L |
| B37 | Accelerator pedal sensor | 25L |
| CAN C1 | Drive train CAN | 3K |
| CAN C1 | Drive train CAN | 8K |
| CAN C1 | Drive train CAN | 16K |
| CAN C1 | Drive train CAN | 20K |
| CAN C1 | Drive train CAN | 12K |
| CAN C1 | Drive train CAN | 29K |
| CAN C1 | Drive train CAN | 33K |
| CAN C1 | Drive train CAN | 37K |
| CAN C1 | Drive train CAN | 25K |
| CAN C1 | Drive train CAN | 41K |
| Code ME04 | Mild hybrid drive | 10A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 23A |
| N118 | Fuel pump control unit | 29L |
| N118 | Fuel pump control unit | 29L |
| N127 | Drivetrain control unit | 3L |
| N3/10 | ME-SFI [ME] control unit | 37L |
| N3/10 | ME-SFI [ME] control unit | 41L |
| N3/9 | CDI control unit | 33L |
| N89 | Transmission oil auxiliary oil pump control unit | 8L |
| U12 | Valid for left-hand drive vehicles | 4D |
| U1217 | Valid for model series 217 | 10B |
| U1222 | Valid for model series 222 | 10A |
| U13 | Valid for right-hand drive vehicles | 5D |
| U398 | Valid for transmission 725 (NAG3) | 10C |
| U398 | Valid for transmission 725 (NAG3) | 10B |
| U74 | Valid for diesel engines | 27G |
| U75 | Valid for gasoline engines | 27G |
| U974 | Not valid for hybrid drive | 14A |
| W85/2 | Front passenger footwell frame floor assembly ground point | 4G |
| W85/2 | Front passenger footwell frame floor assembly ground point | 6G |
| X22/4 | Transmission/frame floor assembly connecting point | 7E |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 4A |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 12A |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 20A |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 28A |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 36A |
| Y3/8 | Fully integrated transmission control control unit | 12L |
| Y3/8 | Fully integrated transmission control control unit | 20L |
| Z1z1 | Connector sleeve 2 in wiring harness | 4E |
