Use Of Wiring Diagrams - OV00.01-P-1901-03SEB
Model 217, 222
as of model year 2018
Wiring diagrams
The wiring diagrams are assigned to the familiar function groups 00-91.
The circuit diagrams are filed according to PE number in each function group, e.g.:
- PE07.08-P-2101SEJ
- PE07.08-P-2101SEK
The location of electrical connections, ground points and solder points are shown in the following 3 documents:
- GF00.19-P-1005SEA - Location of electrical connectors
- GF00.19-P-2002SEA - Location of ground points
- GF00.19-P-3005SEA - Location of end sleeves
All electrical components are sorted alphabetically and listed according to the abbreviations in the "Search aid for all electrical components" OV00.01-P-1909SEB. A reference is made to the wiring diagrams in which the relevant component is explained completely.
Variants of a component or the subdivision of a component into several wiring diagrams are stated in the third column.
Example:
B1 Engine oil temperature sensor Valid for M176 PE07.08-P-2101SEK
B1 Engine oil temperature sensor Valid for M177 PE07.08-P-2101SEM
Wiring diagram number
Kinds of wiring diagrams
The wiring diagrams are prepared as function schematics, function/system diagrams, control unit diagrams or solder point wiring diagrams, ground wiring diagrams and connector wiring diagrams.
- Function schematics
The control units and electrical components required for the function are shown as symbols. The functional connections are realized by direct lines or by the data bus.
- Function/system diagrams
All the components that are relevant to a function or system are shown in the wiring diagram.
- Control unit diagrams
Control units are represented complete with all connected components. Control units with many connections can be subdivided into several wiring diagrams.
- Solder point wiring diagrams, ground wiring diagrams and connector wiring diagrams
Solder points, ground points and electrical connections, which are not shown completely in any control unit diagram, are shown here complete with all connected components.
Function schematic

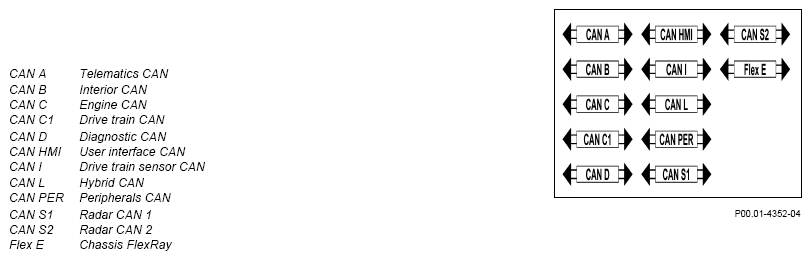

CAN bus and FlexRay display

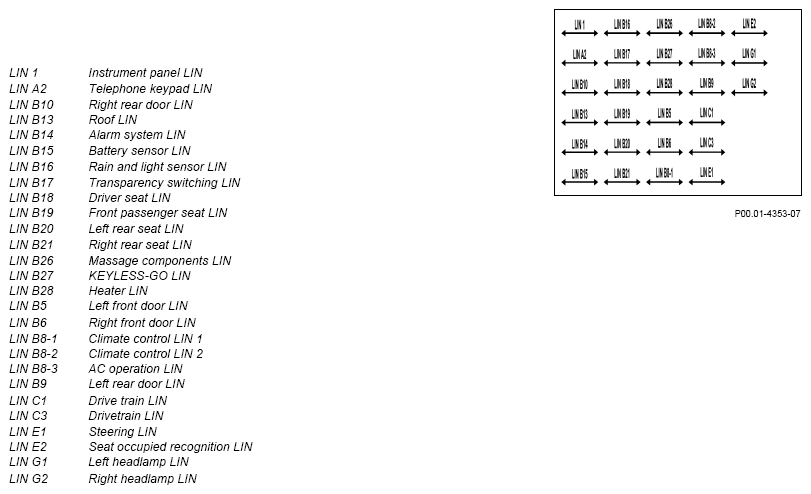

LIN bus presentation
MOST bus presentation
Wire cross-sections of the vehicle may differ from the illustration in the wiring diagrams.
Wire Identification
Wire colors:
BK = Black
BN = Brown
BU = Blue
GN = Green
GY = Gray
OG = Orange
PK = Pink
RD = Red
TR = Transparent
VT = Violet
WH = White
YE = Yellow
The symbol
refers to further wiring diagrams.
Fuse blocks
Components and switches
Variants
The wiring diagrams can contain variants that are framed to identify them and provided with an abbreviation "U..." or "Code...", or are marked with a time limitation, a vehicle model designation, an engine model designation, a transmission model designation or a vehicle identification end number. The variants identified by the abbreviation "U..." or "Code..." are listed in the legends.
The vehicle identification end numbers or time production data stated apply to the market launch of standard production.
Preproduction vehicles can have a lower vehicle identification end number or an earlier production breakpoint.
In case of changes that come up after the market launch of standard production, the variants can be designated with 1 and 2.
Logical combinations of variants are represented as follows:
- »And/or« combination
Validity elements are presented one below the other; the variant is valid if at least one of the validity elements applies.
- »And« combination
Validity elements are presented indented one below the other; the variant is valid if all the validity elements apply.
Signal and terminal designations
The signal and circuit designations used are explained in the section "Abbreviations of signal and circuit designations for wiring diagrams" OV00.01-P-1001-28SEA .
Special features in WIS presentation
In WIS it is possible to select certain areas in the wiring diagram and consequently to switch to other documents or wiring diagrams.
- Selection of electrical connections → Document: Location of line and plug connectors
- Selection of ground points → Document: Location of ground points
- Selection of Z-connector sleeves → Document: Location of Z-connector sleeves (line and plug connectors in wiring harness)
- Selection of PE hands → Reference to further wiring diagrams
- Selection of wiring diagram references without PE hands → Reference to further wiring diagrams
- Selection of component designations A and N → Document: Abbreviations of signal and circuit designations for wiring diagrams
- Selection of component designation A0 → Document: Use of wiring diagrams
Reference to further wiring diagrams (selection of PE hands)
Reference to further wiring diagrams (references without PE hands)
