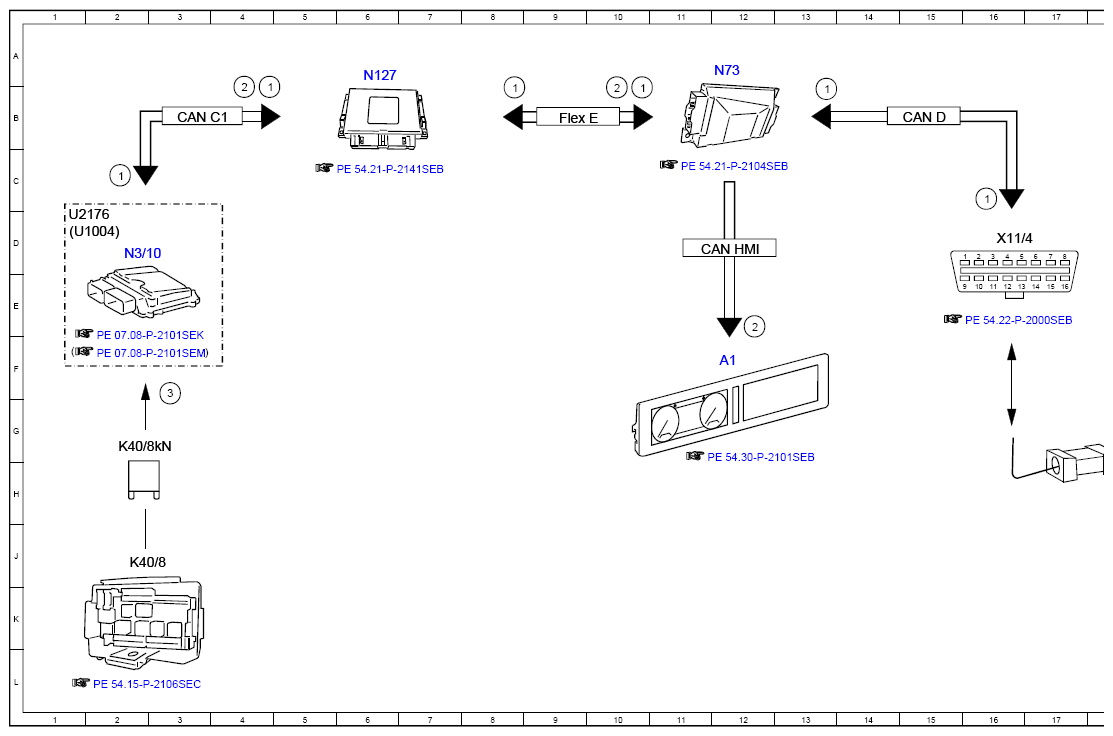

Electrical Function Schematic For European On-Board Diagnosis - PE07.10-P-2725-97SEL
Engine 176.9, 177.9 in model 217
Engine 176.9, 177.9 in model 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine management diagnosis, communication | 13B |
| 1 | Engine management diagnosis, communication | 16C |
| 1 | Engine management diagnosis, communication | 10B |
| 1 | Engine management diagnosis, communication | 2C |
| 1 | Engine management diagnosis, communication | 8B |
| 1 | Engine management diagnosis, communication | 4B |
| 2 | Engine diagnosis indicator lamp, actuation | 12E |
| 2 | Engine diagnosis indicator lamp, actuation | 10B |
| 2 | Engine diagnosis indicator lamp, actuation | 4B |
| 3 | Circuit 87, status | 3F |
| A1 | Instrument cluster | 12F |
| CAN C1 | Drive train CAN | 3B |
| CAN D | Diagnostic CAN | 15B |
| CAN HMI | User interface CAN | 12D |
| Flex E | Chassis FlexRay | 9B |
| K40/8 | Engine fuse and relay module | 2J |
| K40/8kN | Circuit 87M relay | 2G |
| N127 | Drivetrain control unit | 6A |
| N3/10 | ME-SFI [ME] control unit | 2D |
| N73 | Electronic ignition switch control unit | 12A |
| U1004 | Valid for engine 177 | 1D |
| U2176 | Valid for engine 176 | 1D |
| X11/4 | Diagnostic connector | 16D |
