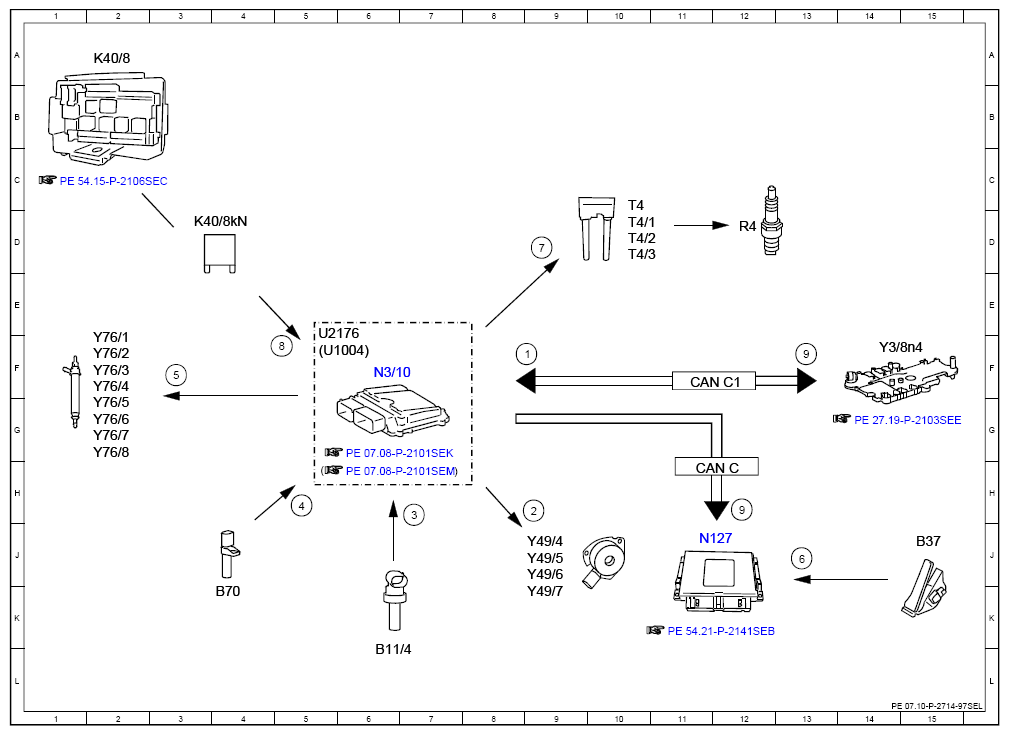

Electrical Function Schematic For Deceleration Fuel Shutoff - PE07.10-P-2714-97SEL
Engine 176.9, 177.9 in model 217
Engine 176.9, 177.9 in model 222
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 9F |
| 2 | Camshaft solenoids, actuation | 9H |
| 3 | Coolant temperature sensor, signal | 7H |
| 4 | Engine speed, signal | 5H |
| 5 | Fuel injectors, actuation | 3F |
| 6 | Accelerator pedal sensor, signal | 13J |
| 7 | Ignition coils, actuation | 9D |
| 8 | Circuit 87, status | 5F |
| 9 | Engine running, signal | 12H |
| 9 | Engine running, signal | 13F |
| B11/4 | Coolant temperature sensor | 6L |
| B37 | Accelerator pedal sensor | 15J |
| B70 | Crankshaft Hall sensor | 4K |
| CAN C | Engine CAN | 11H |
| CAN C1 | Drive train CAN | 11F |
| K40/8 | Engine fuse and relay module | 2A |
| K40/8kN | Circuit 87M relay | 3D |
| N127 | Drivetrain control unit | 11J |
| N3/10 | ME-SFI [ME] control unit | 6F |
| R4 | Spark plugs | 12D |
| T4 | Cylinder 1 + 2 ignition coil | 10C |
| T4/1 | Cylinder 3 + 4 ignition coil | 10D |
| T4/2 | Cylinder 5 + 6 ignition coil | 10D |
| T4/3 | Cylinder 7 + 8 ignition coil | 10D |
| U1004 | Valid for engine 177 | 5F |
| U2176 | Valid for engine 176 | 5F |
| Y3/8n4 | Fully integrated transmission control control unit | 14F |
| Y49/4 | Left intake camshaft solenoid | 9J |
| Y49/5 | Right intake camshaft solenoid | 9J |
| Y49/6 | Left exhaust camshaft solenoid | 9J |
| Y49/7 | Right exhaust camshaft solenoid | 9K |
| Y76/1 | Cylinder 1 fuel injector | 2F |
| Y76/2 | Cylinder 2 fuel injector | 2F |
| Y76/3 | Cylinder 3 fuel injector | 2F |
| Y76/4 | Cylinder 4 fuel injector | 2F |
| Y76/5 | Cylinder 5 fuel injector | 2G |
| Y76/6 | Cylinder 6 fuel injector | 2G |
| Y76/7 | Cylinder 7 fuel injector | 2G |
| Y76/8 | Cylinder 8 fuel injector | 2G |
