Remove/Install Position Sensors Of Camshafts On Left Cylinder Bank - AR15.12-P-2148MNM
Engine 177 in model 217, 222

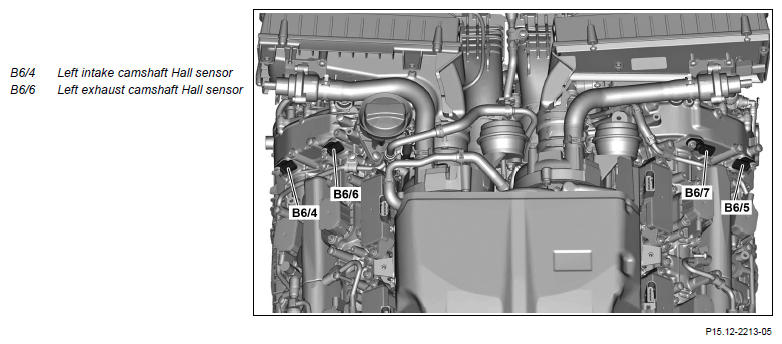

Fig 1: Position Sensors Of Camshafts On Left Cylinder Bank Component Location - Model 217 With Engine 177
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Take coolant expansion reservoir of low-temperature circuit up and out of elastomer bearings and place to one side with lines attached | AR09.41-P-0001MNM | |
| 2 | Remove bracket of purge valves | AR47.30-P-1500MNM | |
| 3 | Release and disconnect electrical connector of left intake camshaft Hall sensor (B6/4) | ||
| 4 | Release and disconnect electrical connector of left exhaust camshaft Hall sensor (B6/6) | ||
| 5 | Remove screw/bolt of left intake camshaft Hal sensor (B6/4) and remove left intake camshaft Hall sensor (B6/4) | *BA15.10-P-1002-03M | |
| 6 | Remove screw/bolt of left exhaust camshaft Hall sensor (B6/6) and remove left exhaust camshaft Hall sensor (B6/6) | *BA15.10-P-1002-03M | |
| 7 | Install in the reverse order | ||
| 8 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 10 | Install upper engine cover |
POSITION SENSOR
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.10-P-1002-03M | Bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
