Remove/Install Right Oil Separator - AR01.20-P-7902MNM
Engine 177 in model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |

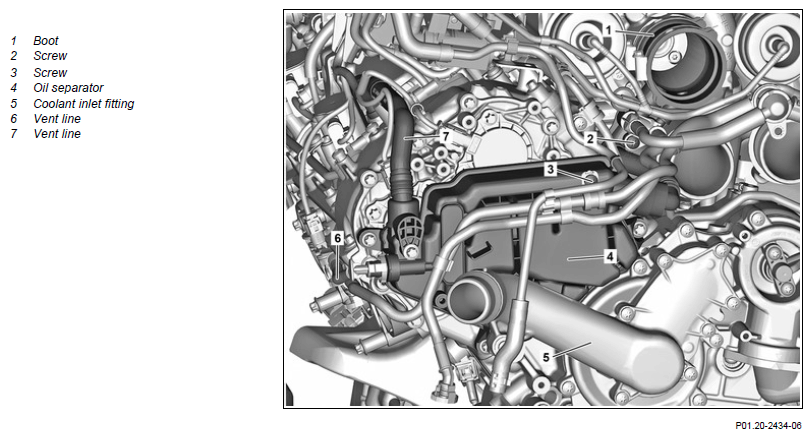

| Remove/install | |||
| 1 | Remove charge air coolers. | AR09.41-P-6817MNM | |
| 2 | Unclip coolant line from oil separator (4). | ||
| 3 | Remove bolt (3). | *BA00.10-P-1002-04A | |
| 4 | Remove screw (2) and remove purge lines from boot (1). | *BA00.10-P-1002-04A | |
| 5 | Remove bleed line (7) from oil separator (4). | ||
| *BA00.10-P-1002-04A | |||
| 6 | Remove bleed line (6) from oil separator (4). | ||
| 7 | Remove coolant inlet fitting (5). | ||
| *BA20.10-P-1005-01ZA | |||
| 8 | Remove boot (1) from exhaust gas turbocharger. | *BA01.20-P-1003-01J | |
| 9 | Remove oil separator (4) together with boot (1). | ||
| *BA01.20-P-1002-01J | |||
| 10 | Install in the reverse order. | ||
| 11 | Check oil level of engine and correct if necessary. | ||
| AP18.00-P-1812DKI |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177.9 | |
|---|---|---|---|
| BA01.20-P-1002-01J | Bolt, oil separator to chain case cover | Nm | 4, 5 |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177.9 | |
|---|---|---|---|
| BA01.20-P-1003-01J | Clamp, boot to exhaust gas turbocharger/air filter | Nm | 1, 5 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA20.10-P-1005-01ZA | Screw, coolant outlet fitting/coolant inlet fitting/coolant fitting to thermostat housing | Nm | 8 |
