Remove/install right water-cooled charge air cooler - AR09.41-P-6828MNL
Engine 176 in model 217, 222
with small lower coolant expansion reservoir for low-temperature circuit
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||

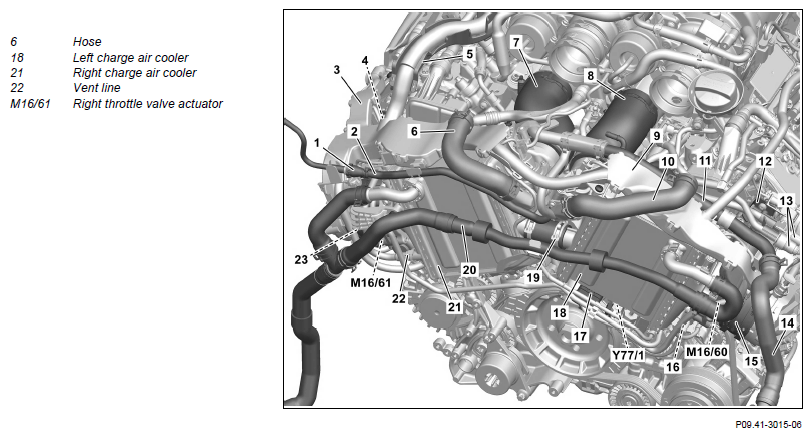

| 1 | Remove left charge air cooler (18) | AR09.41-P-6827MNL | |
| 2 | Remove bleed line (22) from right charge air cooler (21) | ||
| 3 | Remove right charge air cooler (21) | ||
| 4 | Remove right throttle valve actuator (M16/61) | When replacing right charge air cooler (21). | AR07.51-P-1403MNL |
| 5 | Check elastomer bearings of right charge air cooler (21) for damage | If a problem arises ↓ Replace appropriate elastomer bearing. |
|
| 6 | Install in the reverse order |
