Remove/install left charge air temperature sensor (downstream of throttle valve) - AR09.41-P-0041MNL
Engine 176 in model 217, 222

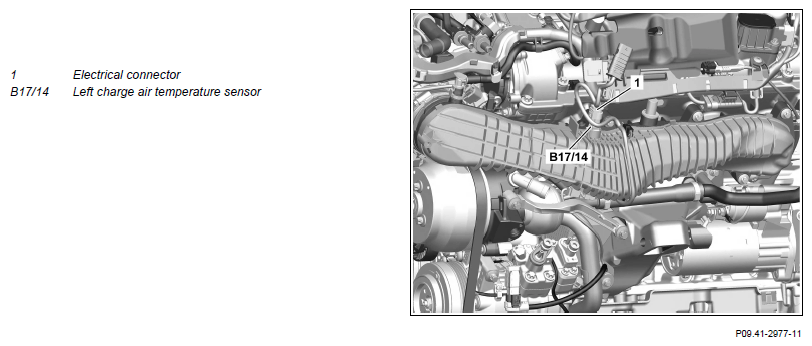

Fig 1: Left Charge Air Temperature Sensor (Downstream Of Throttle Valve) Component Location - Engine 176 In Model 217
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove the top engine compartment cover at the front left | ||
| 2 | Remove left-hand air filter housing | AR09.10-P-1151MNL | |

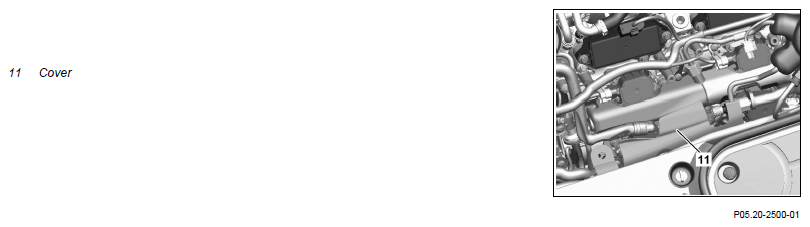

| 3 | Remove cover (11) | ||
| 4 | Remove the charge-air temperature sensor on the left (B17/14) from the charge-air distributor | ||
| 5 | Release and disconnect electrical connection (1) | ||
| 6 | Seal the opening on the charge-air distributor using a suitable plug | Fig 2 | |
| 7 | Check the sealing ring of the charge-air temperature sensor on the left (B17/14) for damage | If damaged ↓ Replace the charge-air temperature sensor on the left (B17/14). |
|
| 8 | Install in the reverse order | ||
| 9 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check engine for proper function |
