Remove/Install Fan Unit - AR20.40-P-5050MNM
Engine 177 in model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove engine suction air ducts | Right engine suction air duct | AR09.10-P-1152MNM |
| Left engine suction air duct | AR09.10-P-1151MNM | ||
| 3.1 | Remove radiator grille | Engine 177 in model 222 | AR88.40-P-4001LF |
| 3.2 | Remove front bumper | Engine 177 in model 217 | AR88.20-P-2000LC |
| 4 | Remove front center reinforcement | AR62.30-P-1570LF | |

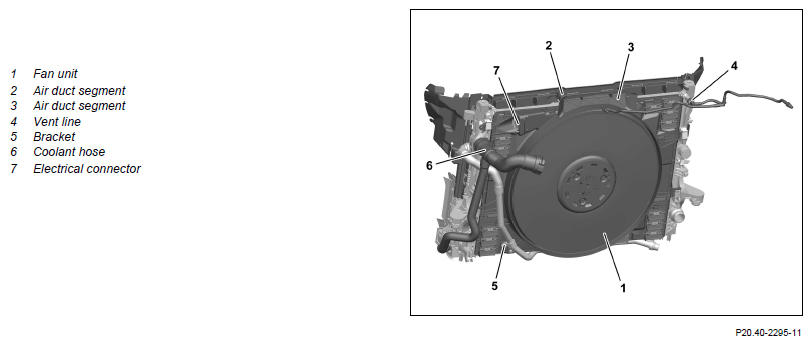

| 5 | Unclip air duct segment (2) with air duct segment (3) and place to one side | ||
| 6 | Drain off coolant | AR20.00-P-1142MNL | |
| 7 | Remove bracket (5) from fan unit (1) | ||
| 8 | Remove coolant hose (6) from cooler | AR20.20-P-7441-01RQ | |
| 9 | Detach bleed line (4) from cooler | AR20.20-P-7441-01RQ | |
| 10 | Release and disconnect electrical connector (7) of fan unit (1) | ||
| 11 | Remove fan unit (1) upward | ||
| 12 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 14 | Install center and front lower engine compartment paneling | AR61.20-P-1105LF | |
| 15 | Install upper engine cover |
