Remove/install right fuel pressure sensor - AR07.04-P-0202MNL

Engine 176 in model 217, 222

Courtesy of MERCEDES-BENZ USA

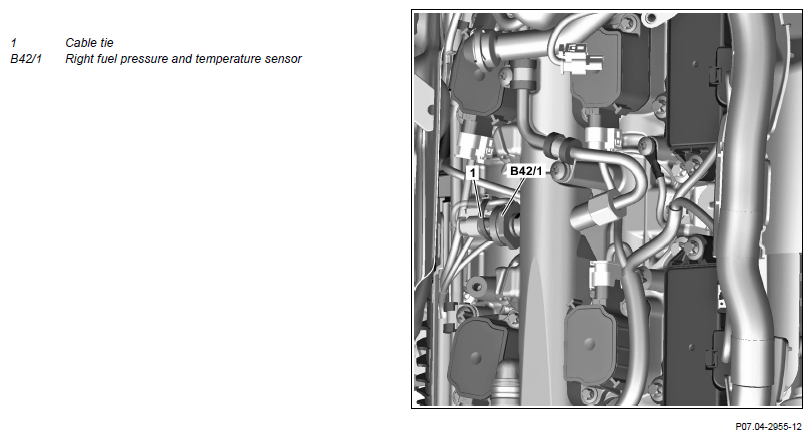

Fig 1: Right Fuel Pressure Sensor Component Location - Engine 176 In Model 217

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove/install
1	Remove right air filter housing	: Only install upper engine cover after the leak test.	AR09.10-P-1152MNL
2	Remove left-hand air filter housing		AR09.10-P-1151MNL
3	Relieve fuel pressure over diagnostic socket		AR07.03-P-1460-01MNL
		Dust protection cap to service connection	*BA07.03-P-1005-01H
		Pressure hose	Fig 3

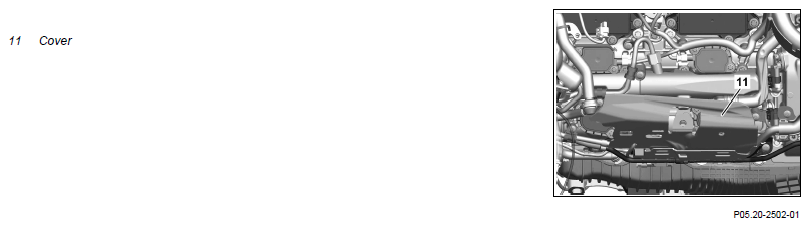

4	Remove cover (11)
5	Remove cable tie (1)	: Replace cable tie (1).
6	Release and disconnect electrical connector on right fuel pressure and temperature sensor (B42/1)
7	Thoroughly clean rail in area of right fuel pressure and temperature sensor (B42/1)	Absolute cleanliness is essential when working on the high-pressure fuel circuit. Use only lint-free cleaning cloths Damage will occur otherwise on the high-pressure fuel circuit. Assembly cleaner	*BR00.45-Z-1028-04A
8	Cover connecting point of right fuel pressure and temperature sensor (B42/1) with suitable rag and carefully and slightly loosen right fuel pressure and temperature sensor (B42/1)	No fuel should flow over the engine. Damage will occur otherwise. Wear oil-resistant, fiber-free gloves lined with rubber. Pressure transducer to fuel distributor	*BA07.52-P-1002-01J
		Box wrench attachment, 27_mm	Fig 2
9	Remove right fuel pressure and temperature sensor (B42/1)	: Use new right fuel pressure and temperature sensor (B42/1), since the right fuel pressure and temperature sensor (B42/1) is only designed to be screwed in once. Leaks can occur otherwise. Collect exuded fuel using a suitable absorbent rag. Box wrench attachment, 27_mm	Fig 2
10	Install in the reverse order
11	Read out and erase fault memory
			AD00.00-P-2000-04B
12	Check fuel high-pressure circuit		AR07.03-P-1010-04MM
			AD00.00-P-2000-04B
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Perform an engine test run and check engine for proper operation and leaktightness
14	Install upper engine cover
