Remove/install left throttle valve actuator - AR07.51-P-1402MNM
Engine 177 in model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Remove charge air cooler | AR09.41-P-6817MNM | |

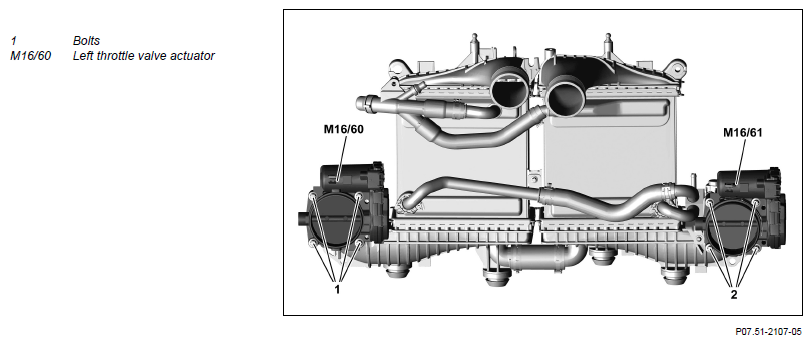

| 2 | Remove screws/bolts (1) and remove left throttle valve actuator (M16/60) from left charge air cooler | ||
| *BA09.41-P-1008-01X | |||
| 3 | Install in the reverse order |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 |
