Remove/Install Right High-Pressure Fuel Line - AR07.03-P-1002MNM

Engine 177 in model 217, 222

MODIFICATION NOTES

30.01.2017 Union nut, fuel line to fuel distributor/fuel system high pressure pump   BA07.03-P-1001-01H

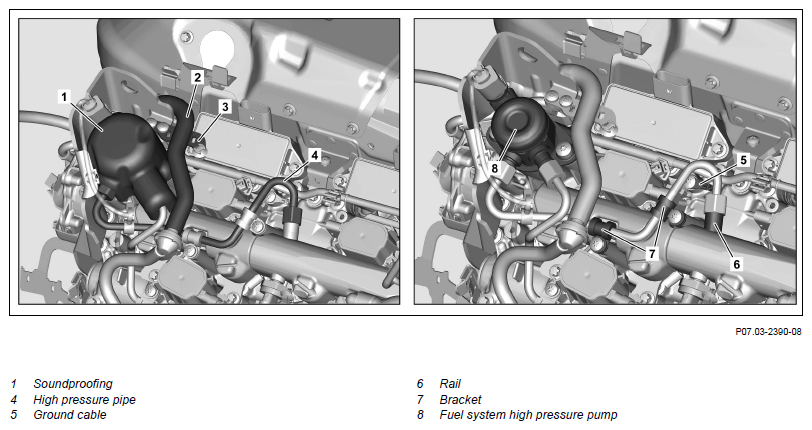

Fig 1: Right High-Pressure Fuel Line Component Location - Engine 177 In Model 217
G15350809Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. AS07.16-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. AS47.00-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
Topical note Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Topical note Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Disconnect battery ground line   AR54.10-P-0003LF
2 Remove bracket for engine management control unit INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR07.08-P-7016MNM
3 Remove soundproofing (1)
4 Unclip electrical line at high-pressure line (4)
5 Remove brackets (7) INSTALLATION IMPORTANT Align brackets (7) before screwing on. Ensure the high-pressure line (4) is routed correctly.
TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket
*BA07.03-P-1004-01H
6 Remove engine suspension lug at rear right   AR01.20-P-5012-02MNE
    TORQUE SPECIFICATION Bolt, heat shield/rear lifting eye to cylinder head *BA01.30-P-1003-01N
    TORQUE SPECIFICATION M6 X 1 *BA00.10-P-1002-04A
7 Remove ground line (5) from cylinder head cover TORQUE SPECIFICATION Bolt, engine wiring harness ground to cylinder head cover *BA15.10-P-1003-05F
8 Clean area around high-pressure line (4) NOTES Thoroughly clean area around high-pressure line (4) at the locations to be separated.
Failure can occur otherwise to the fuel system
Assembly cleaner
*BR00.45-Z-1028-04A
9 Remove coolant expansion reservoir for low-temperature circuit upwards out of the elastomer bearings and place with attached lines to one side   AR09.41-P-0001MNM
10 Relieve fuel pressure over diagnostic socket   AR07.03-P-1460-01MNL
    TORQUE SPECIFICATION Dust protection cap to service connection *BA07.03-P-1005-01H
    SPECIAL TOOL Pressure hose Fig 4
11 Relieve fuel pressure in fuel system high-pressure circuit   AR07.03-P-1460-02MM
12 Remove high-pressure line (4) and close off openings at high-pressure line (4), fuel system high-pressure pump (8) and the rail (6) with suitable stop plugs NOTES Do not kink or bend high-pressure line (4).
Otherwise leaks and damage can occur.
TORQUE SPECIFICATION Union nut, fuel line to fuel distributor/fuel system high-pressure pump
*BA07.03-P-1001-01H
    SPECIAL TOOL Record plug Fig 2
    SPECIAL TOOL Box wrench bit Fig 3
13 Check high-pressure line (4) for damage   AR07.03-P-1010-03MNA
    Assembly cleaner
If a problem arises
↓
replace high-pressure line (4).
*BR00.45-Z-1028-04A
14 Remove brackets (7) from high-pressure line (4) When replacing the high-pressure line (4).
15 Install in the reverse order
16 Check fuel high-pressure circuit
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
      AR07.03-P-1010-04MM
17 Perform an engine test run and check engine for proper operation and leak tightness
18 Install upper engine cover
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6 X 1 Nm 9 13
CYLINDER HEAD

Number Designation Engine 177
BA01.30-P-1003-01N Bolt, heat shield/rear lifting eye to cylinder head M6 Nm 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1001-01H Union nut, fuel line to fuel distributor/fuel system high-pressure pump In case of reusability   Nm 22
For new lines Stage 1 Nm 15
Stage 2 ∠° 90
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1004-01H Bolt, fuel line clamp to engine/bracket Nm 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1005-01H Dust protection cap to service connection Nm 1
GROUND STRAP

Number Designation Engine 177
BA15.10-P-1003-05F Bolt, engine wiring harness ground to cylinder head cover Nm 9
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Box Wrench Bit (000 589 80 03 00)
G11138963Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Pressure Hose (119 589 04 63 00)
G13655973Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
