Remove/install left bypass air switchover valve - AR09.40-P-0007MNM
Engine 177 in model 217, 222
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | ||
| 2 | Remove upper engine cover | ||

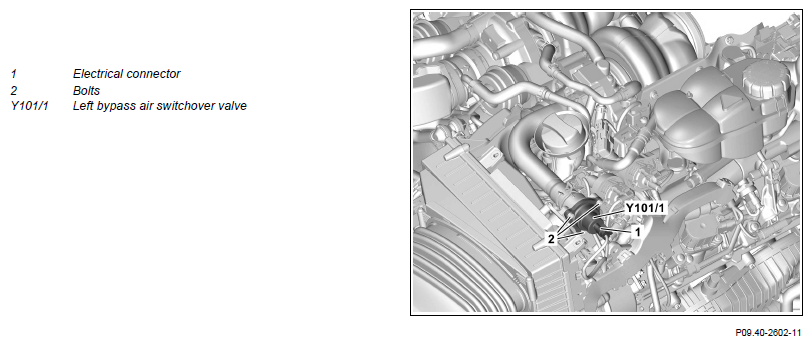

| 3 | Release and disconnect electrical connector (1) of left bypass air switchover valve (Y101/1) | ||
| 4 | Remove screws (2) | *BA09.41-P-1013-01X | |
| 5 | Remove left bypass air switchover valve (Y101/1) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 9 | Install upper engine cover |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.41-P-1013-01X | Bolt, bypass air switchover valve to bypass valve connecting housing | Nm | 8 |
