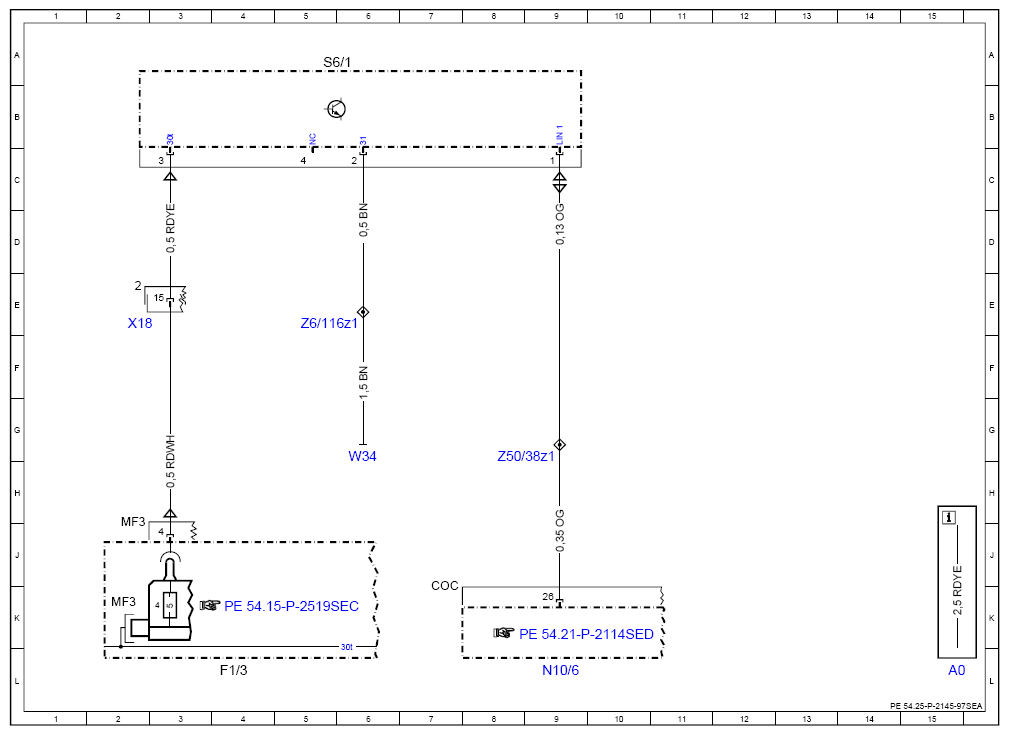

Wiring Diagram For Driver-Side Instrument Panel Button Group - PE54.25-P-2145-97SEA
Model 217, 222 as of model year 2018
Driver-side instrument panel button group S6/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3MF3 | Multiple fuse 3 | 2K |
| N10/6 | Front SAM control unit | 9L |
| S6/1 | Driver-side instrument panel button group | 5A |
| W34 | Left footwell ground point | 6H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2E |
| Z50/38z1 | Instrument panel LIN connector sleeve | 9G |
| Z6/116z1 | Circuit 31 connector sleeve | 5E |
