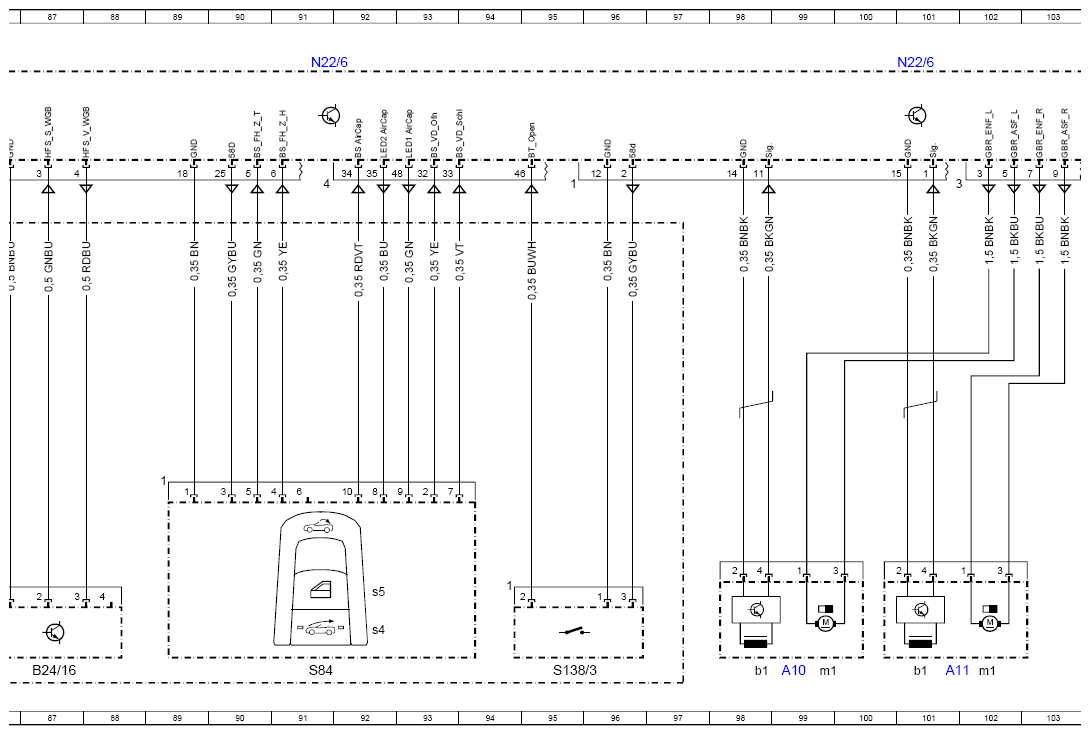

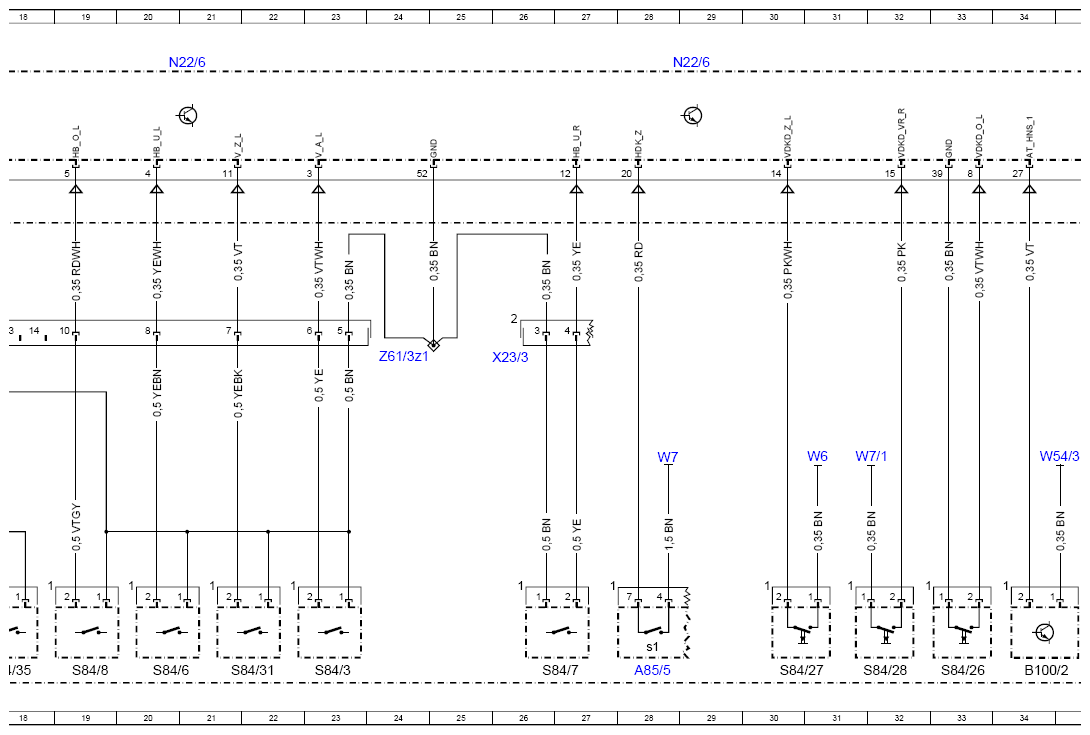

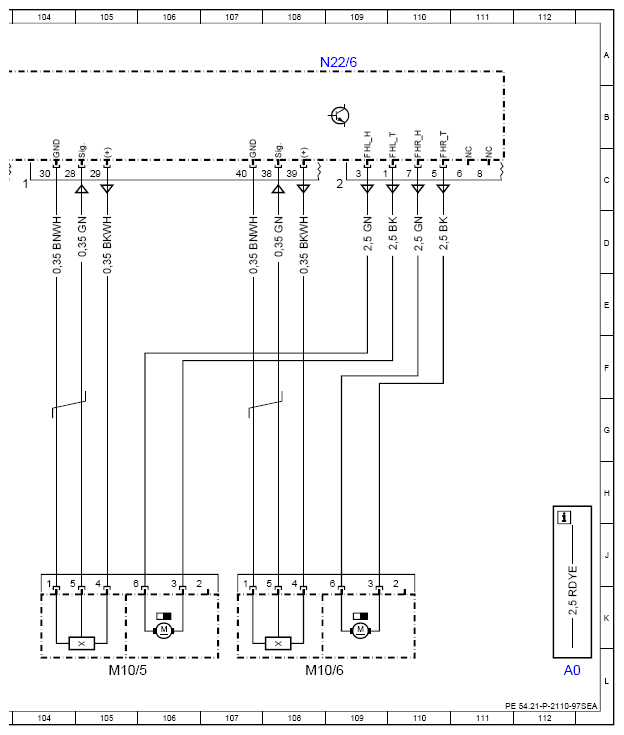

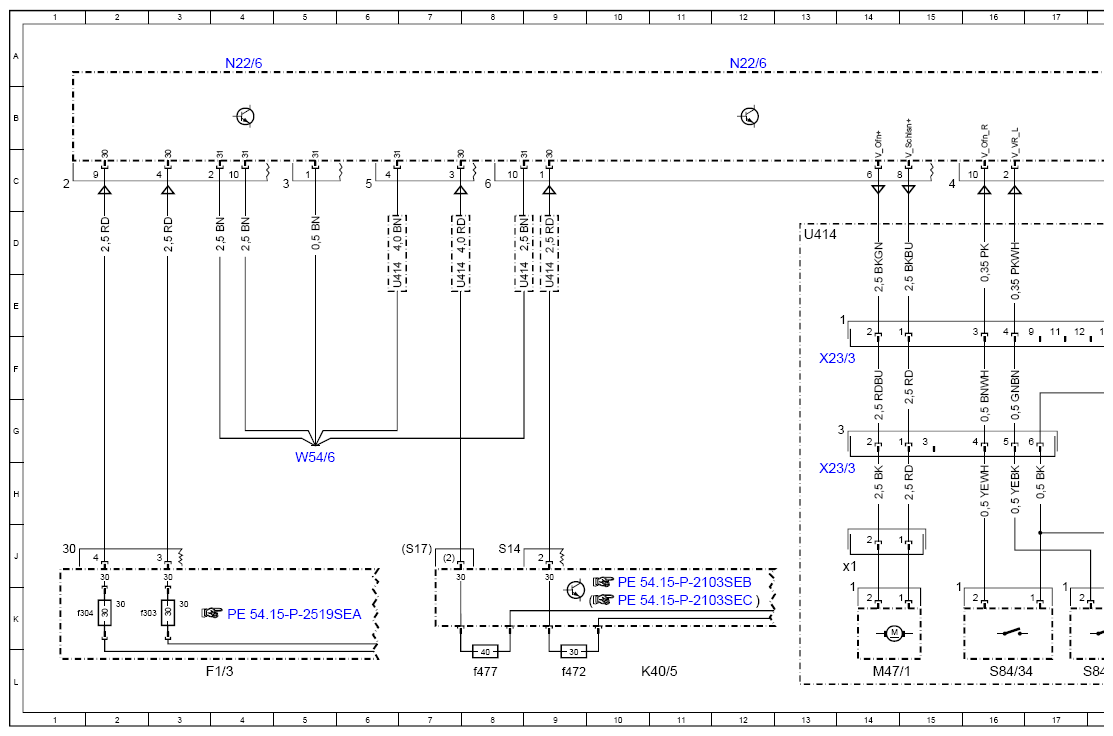

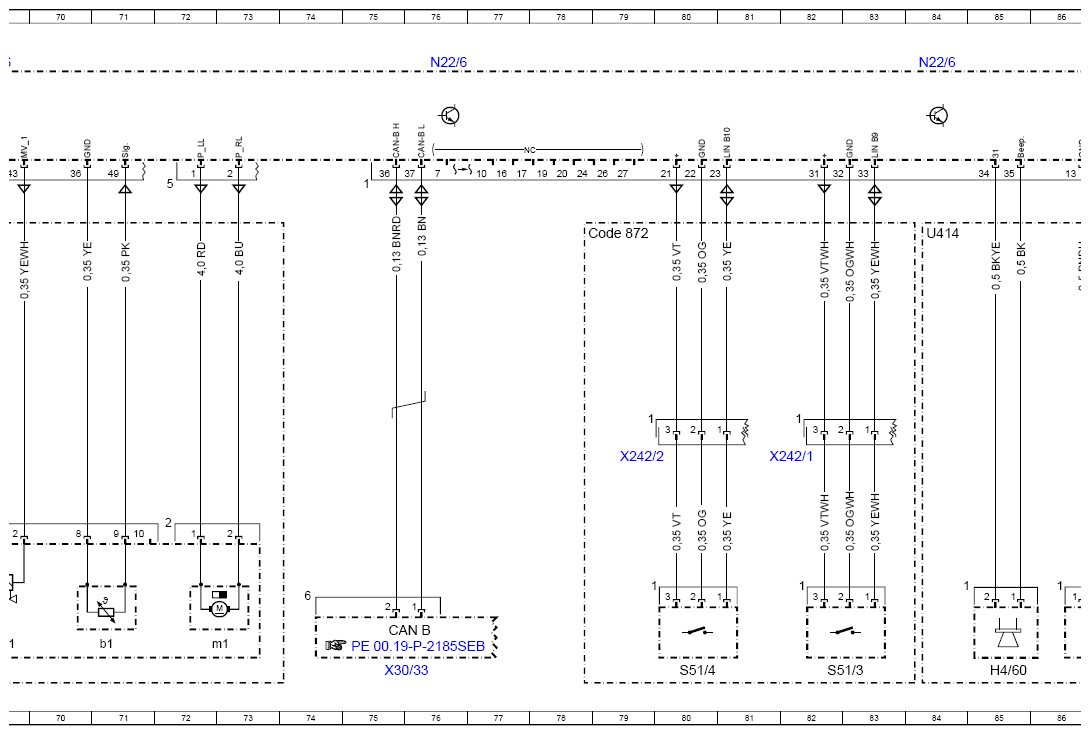

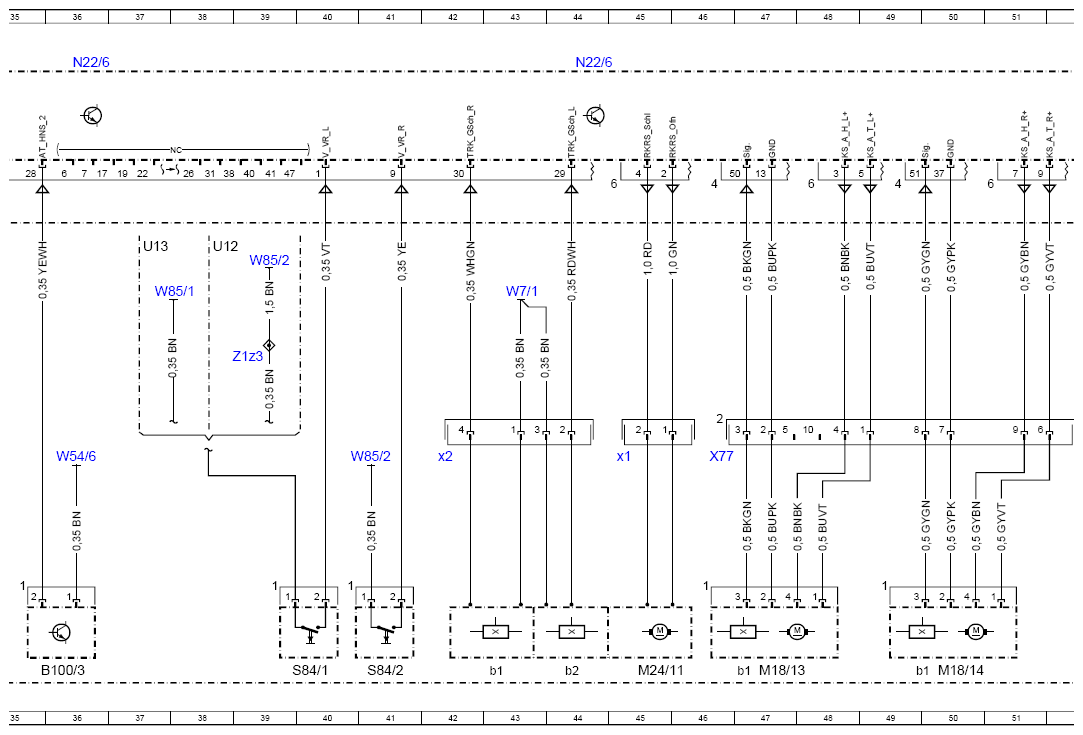

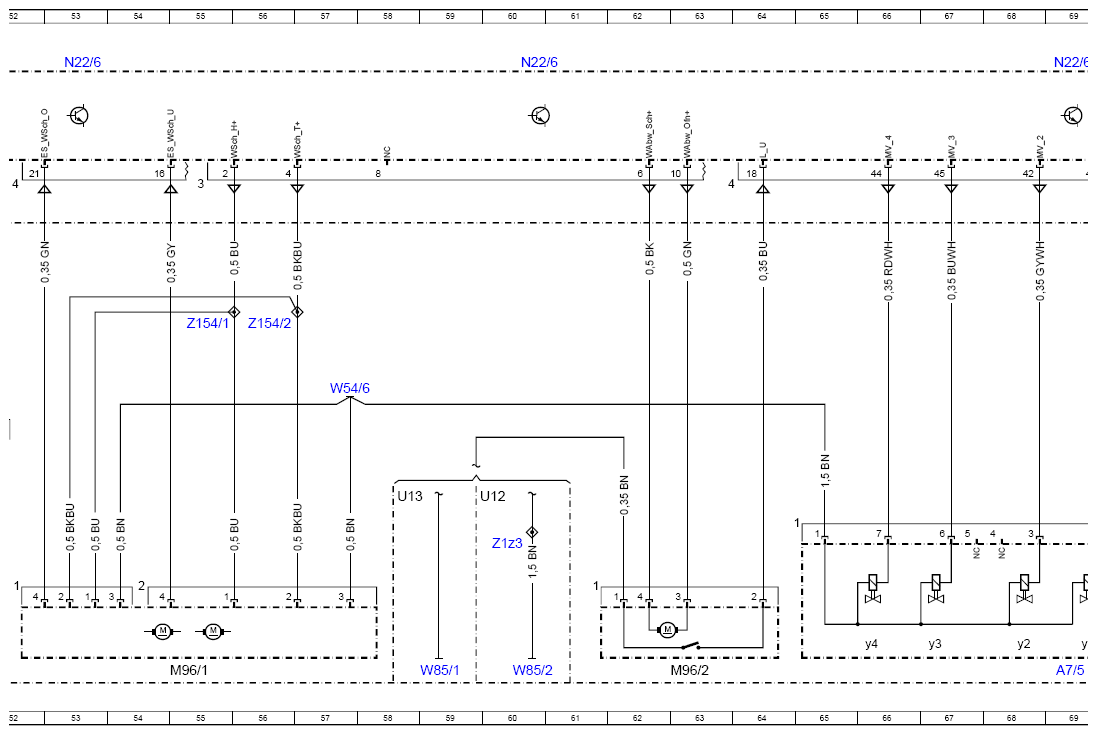

Wiring Diagram Rear Control Unit - PE54.21-P-2110-97SEA
Model 217 up to model year 2018 Control unit N22/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 112L |
| A10 | Seat belt extender on left | 99L |
| A10b1 | Left belt extender Hall sensor | 98L |
| A10m1 | Left belt extender electric motor | 99L |
| A11 | Seat belt extender on right | 101L |
| A11b1 | Right belt extender Hall sensor | 101L |
| A11m1 | Right belt extender electric motor | 102L |
| A7/5 | Soft top control hydraulic unit | 69L |
| A7/5b1 | Temperature sensor | 71K |
| A7/5m1 | Convertible top control hydraulic unit electric motor | 72K |
| A7/5y1 | Solenoid valve 1 | 69K |
| A7/5y2 | Solenoid valve 2 | 68K |
| A7/5y3 | Solenoid valve 3 | 67K |
| A7/5y4 | Solenoid valve 4 | 66K |
| A85/5 | Trunk lid lock | 28L |
| A85/5s1 | Trunk lid lock main catch switch | 28L |
| B100/2 | Left trunk partition Hall sensor | 34L |
| B100/3 | Right trunk partition Hall sensor | 36L |
| B24/16 | Trunk lid position sensor | 87L |
| CAN B | Interior CAN | 75K |
| Code 872 | Left and right rear seat heaters | 78D |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f303 | Fuse 303 | 2K |
| F1/3f304 | Fuse 304 | 1K |
| H4/60 | Trunk lid control warning buzzer | 85L |
| K40/5 | Rear fuse and relay module | 11L |
| K40/5f472 | Fuse 472 | 9L |
| K40/5f477 | Fuse 477 | 8L |
| M10/5 | Left rear power window motor | 105L |
| M10/6 | Right rear power window motor | 108L |
| M18/13 | Left rear seat head restraint height adjustment motor | 47L |
| M18/13b1 | Left rear seat head restraint height adjustment Hall sensor | 47L |
| M18/14 | Right rear seat head restraint height adjustment motor | 50L |
| M18/14b1 | Right rear seat head restraint height adjustment Hall sensor | 49L |
| M24/11 | Trunk partition motor | 45L |
| M24/11b1 | Trunk partition open/closed Hall sensor | 43L |
| M24/11b2 | Trunk partition drive power transmission Hall sensor | 44L |
| M24/11x1 | Trunk partition motor electrical connector 1 | 45H |
| M24/11x2 | Trunk partition motor electrical connector 2 | 42H |
| M47/1 | Front soft top lock motor | 14L |
| M96/1 | Draft stop actuator motor | 55L |
| M96/2 | Wind deflector actuator motor | 63L |
| N22/6 | Rear control unit | 4A |
| N22/6 | Rear control unit | 12A |
| N22/6 | Rear control unit | 20A |
| N22/6 | Rear control unit | 29A |
| N22/6 | Rear control unit | 36A |
| N22/6 | Rear control unit | 44A |
| N22/6 | Rear control unit | 53A |
| N22/6 | Rear control unit | 60A |
| N22/6 | Rear control unit | 69A |
| N22/6 | Rear control unit | 76A |
| N22/6 | Rear control unit | 84A |
| N22/6 | Rear control unit | 91A |
| N22/6 | Rear control unit | 101A |
| N22/6 | Rear control unit | 109A |
| S138/3 | Trunk partition switch | 95L |
| S51/3 | Left rear heated seat switch | 82L |
| S51/4 | Right rear heated seat switch | 80L |
| S84 | Soft top control switch | 91L |
| S84/1 | Left soft top "locked" limit switch | 40L |
| S84/2 | Right soft top "Locked" limit switch | 41L |
| S84/26 | Left soft top compartment lid up limit switch | 33L |
| S84/27 | Left soft top compartment lid locked limit switch | 30L |
| S84/28 | Right soft top compartment lid locked limit switch | 32L |
| S84/3 | Soft top "open" limit switch | 23L |
| S84/31 | Soft top closed limit switch | 21L |
| S84/34 | Soft top lock open limit switch | 16L |
| S84/35 | Soft top lock locked limit switch | 18L |
| S84/6 | Left soft top bow locked down limit switch | 20L |
| S84/7 | Right soft top bow locked down limit switch | 26L |
| S84/8 | Soft top bow up limit switch | 19L |
| S84s4 | Draft stop and wind deflector button | 92K |
| S84s5 | Power windows central operating switch | 92K |
| U12 | Valid for left-hand drive vehicles | 38D |
| U12 | Valid for left-hand drive vehicles | 59H |
| U13 | Valid for right-hand drive vehicles | 37D |
| U13 | Valid for right-hand drive vehicles | 58H |
| U414 | Valid for model 217.4 | 8E |
| U414 | Valid for model 217.4 | 7E |
| U414 | Valid for model 217.4 | 9E |
| U414 | Valid for model 217.4 | 9E |
| U414 | Valid for model 217.4 | 13D |
| U414 | Valid for model 217.4 | 84D |
| W54/3 | Left rear wheel well ground point | 34H |
| W54/6 | Right rear wheel well ground point 2 | 5H |
| W54/6 | Right rear wheel well ground point 2 | 36H |
| W54/6 | Right rear wheel well ground point 2 | 57F |
| W6 | Left wheel arch trunk ground point | 31H |
| W7 | Right wheelhouse trunk ground point | 28H |
| W7/1 | Right taillamp trunk ground point | 31H |
| W7/1 | Right taillamp trunk ground point | 43E |
| W85/1 | Driver footwell frame floor assembly ground point | 37E |
| W85/1 | Driver footwell frame floor assembly ground point | 59L |
| W85/2 | Front passenger footwell frame floor assembly ground point | 41H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 39D |
| W85/2 | Front passenger footwell frame floor assembly ground point | 60L |
| X23/3 | Soft top/vehicle interior electrical connector | 14H |
| X23/3 | Soft top/vehicle interior electrical connector | 14F |
| X23/3 | Soft top/vehicle interior electrical connector | 26F |
| X242/1 | Left rear sidewall cover electrical connector | 82H |
| X242/2 | Right rear sidewall cover electrical connector | 79H |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 75L |
| X77 | Rear backrest head restraint release electrical connector | 46H |
| Z154/1 | Draft stop UP connector sleeve | 55E |
| Z154/2 | Draft stop DOWN connector sleeve | 56E |
| Z1z3 | Circuit 31 connector sleeve | 39F |
| Z1z3 | Circuit 31 connector sleeve | 60J |
| Z61/3z1 | Hall sensor ground connection connector sleeve | 24F |
