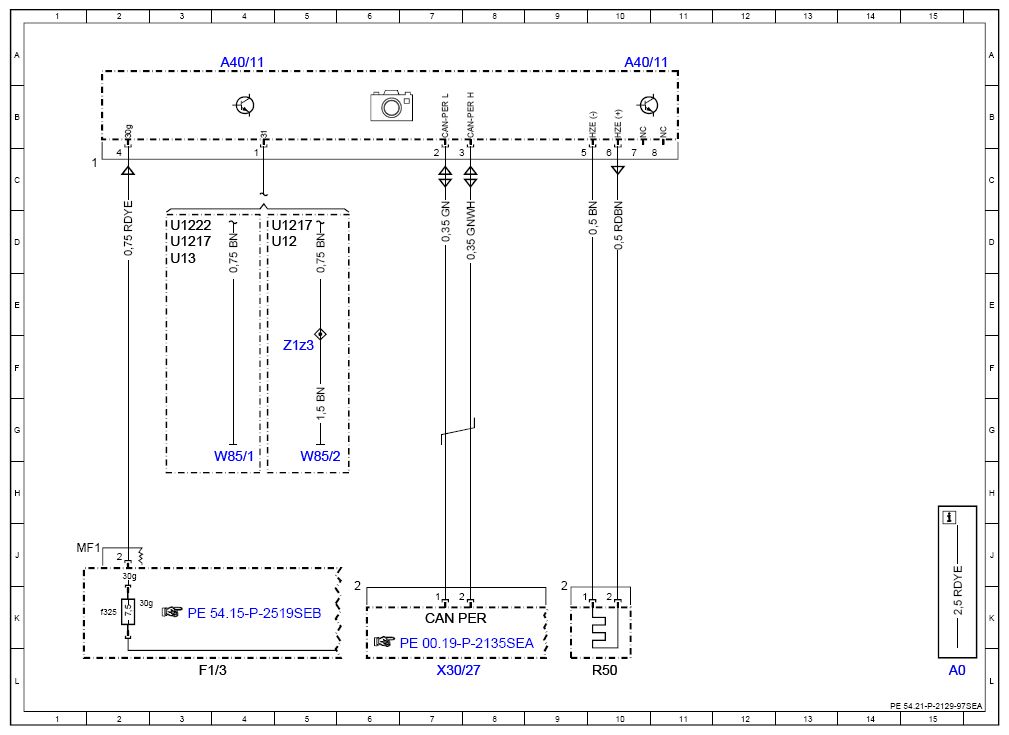

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97SEA
Model 217 up to model year 2018 with code 513 (Traffic Sign Assist) with code 608 (Adaptive Highbeam Assist) with code 610 (Night view assist) with code 628 (Adaptive Highbeam Assist Plus) Control unit A40/11
Model 222 up to model year 2018 with code 513 (Traffic Sign Assist) with code 608 (Adaptive Highbeam Assist) with code 610 (Night view assist) with code 628 (Adaptive Highbeam Assist Plus) Control unit A40/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A40/11 | Mono multifunction camera | 4A |
| A40/11 | Mono multifunction camera | 10A |
| CAN PER | Peripherals CAN | 7K |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f325 | Fuse 325 | 2K |
| R50 | Auxiliary heater heating element | 10L |
| U12 | Valid for left-hand drive vehicles | 4D |
| U1217 | Valid for model series 217 | 3D |
| U1217 | Valid for model series 217 | 4D |
| U1222 | Valid for model series 222 | 3D |
| U13 | Valid for right-hand drive vehicles | 3D |
| W85/1 | Driver footwell frame floor assembly ground point | 4G |
| W85/2 | Front passenger footwell frame floor assembly ground point | 5G |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
| Z1z3 | Circuit 31 connector sleeve | 5F |
