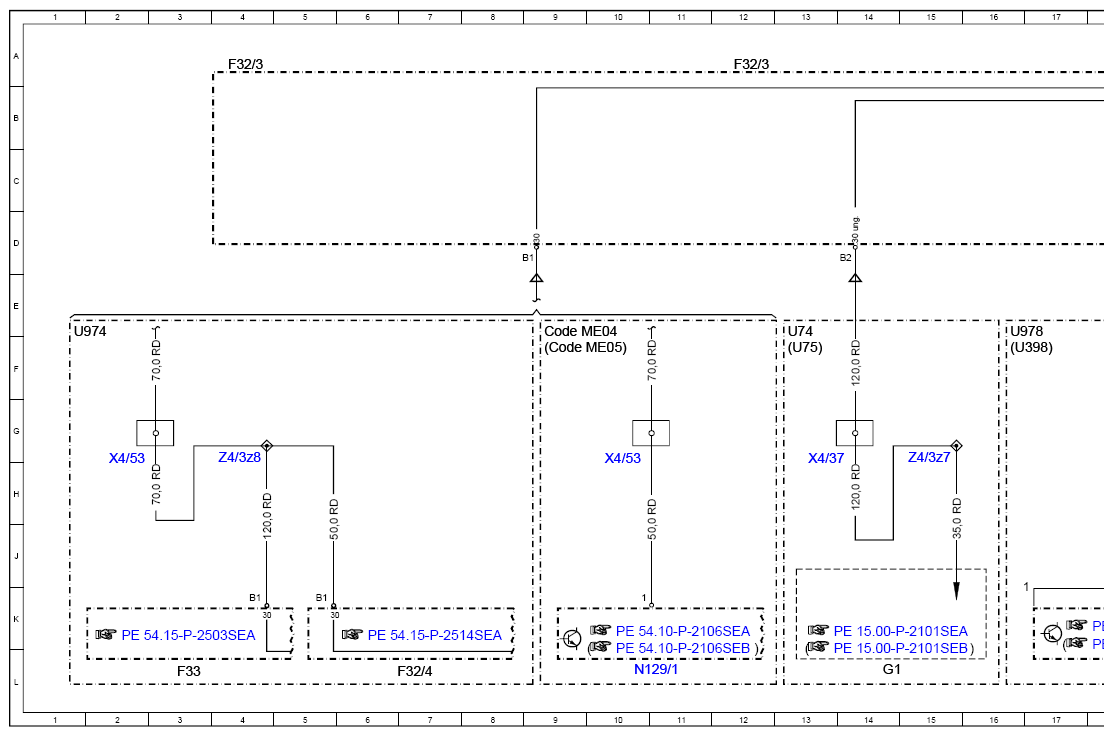

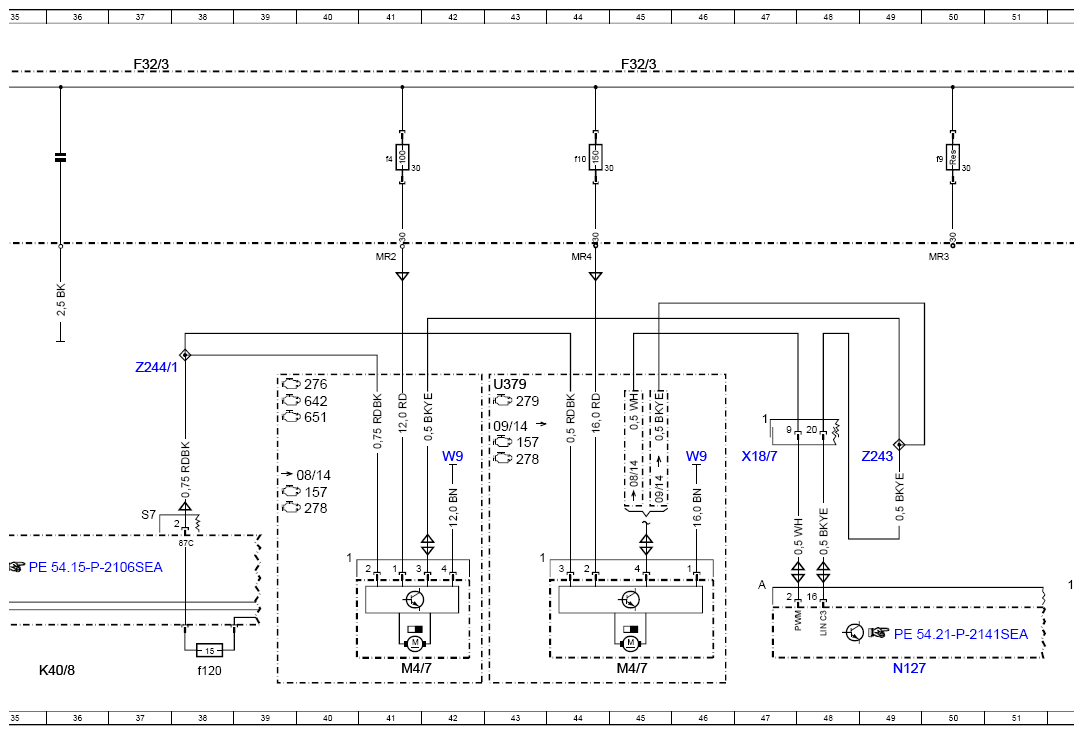

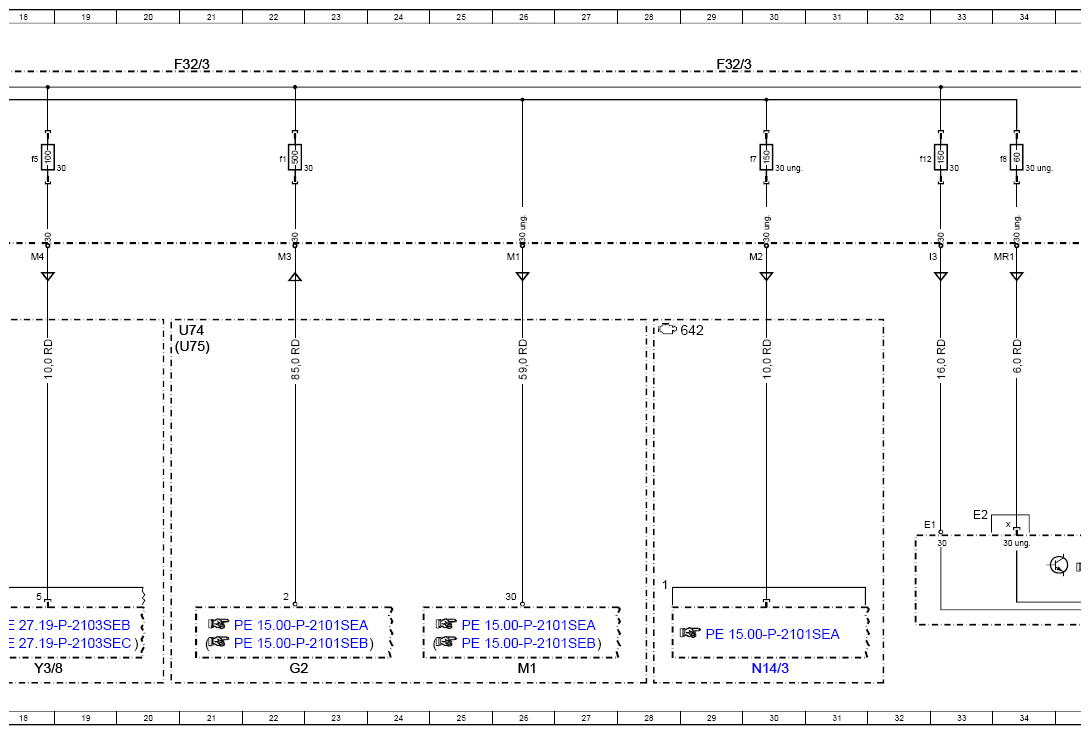

Wiring Diagram, Engine Compartment Pre-Fuse Box (F32/3) - PE54.15-P-2513-97SEA
Model 217 up to model year 2018
Model 222 up to model year 2018
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| Code ME04 | Mild hybrid drive | 9E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 9F |
| F32/3 | Engine compartment prefuse box | 4A |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3 | Engine compartment prefuse box | 21A |
| F32/3 | Engine compartment prefuse box | 37A |
| F32/3 | Engine compartment prefuse box | 29A |
| F32/3 | Engine compartment prefuse box | 45A |
| F32/3 | Engine compartment prefuse box | 52A |
| F32/3f1 | Fuse 1 | 22C |
| F32/3f10 | Fuse 10 | 44C |
| F32/3f11 | Fuse 11 | 55C |
| F32/3f12 | Fuse 12 | 32C |
| F32/3f3 | Fuse 3 | 52C |
| F32/3f4 | Fuse 4 | 41C |
| F32/3f5 | Fuse 5 | 18C |
| F32/3f6 | Fuse 6 | 53C |
| F32/3f7 | Fuse 7 | 30C |
| F32/3f8 | Fuse 8 | 34C |
| F32/3f9 | Fuse 9 | 50C |
| F32/4 | Vehicle interior prefuse box | 7L |
| F33 | Rear prefuse box | 3L |
| G1 | On-board electrical system battery | 14L |
| G2 | Alternator | 22L |
| K40/8 | Engine fuse and relay module | 36L |
| K40/8f120 | Fuse 120 | 38L |
| M1 | Starter | 26L |
| M4/7 | Fan motor | 41L |
| M4/7 | Fan motor | 45L |
| N127 | Drivetrain control unit | 49L |
| N129/1 | Power electronics control unit | 10L |
| N14/3 | Glow output stage | 30L |
| N68 | Electrical power steering control unit | 54L |
| U379 | Not valid for rear door roller sun blinds | 43F |
| U398 | Valid for transmission 725 (NAG3) | 16F |
| U74 | Valid for diesel engines | 13E |
| U74 | Valid for diesel engines | 20E |
| U75 | Valid for gasoline engines | 13F |
| U75 | Valid for gasoline engines | 20F |
| U974 | Not valid for hybrid drive | 1E |
| U978 | Valid for hybrid drive | 16E |
| W9 | Left front ground point (at lamp unit) | 42G |
| W9 | Left front ground point (at lamp unit) | 46G |
| X18/7 | Vehicle interior and engine compartment electrical connector | 47H |
| X4/37 | Left terminal 30 terminal block (without backup) | 13H |
| X4/53 | Right terminal 30 terminal block | 2H |
| X4/53 | Right terminal 30 terminal block | 10H |
| Y3/8 | Fully integrated transmission control control unit | 18L |
| Z243 | Drivetrain LIN connector sleeve | 49G |
| Z244/1 | Connector sleeve, circuit 87/C1 | 37F |
| Z4/3z7 | Tml. 30 connector sleeve | 15G |
| Z4/3z8 | Tml. 30 connector sleeve | 4G |
