Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97SEB
Model 217 up to model year 2018 Fuse box F1/3, Sheet 2
Model 222 up to model year 2018 Fuse box F1/3, Sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| A105 | Touchpad | 67L |
| A2/155 | Telephone, stationary heater and Remote Park-Pilot antenna changeover switch | 110L |
| A40/11 | Mono multifunction camera | 48L |
| A40/12 | Head-up display | 60L |
| A40/13 | Stereo multifunction camera | 48L |
| A40/3 | COMAND control unit | 12L |
| A40/8 | Audio/COMAND display | 37L |
| A40/9 | Audio/COMAND control panel | 64L |
| A50/6 | Dedicated Short-Range Communications control unit | 45L |
| A9/5 | Electric refrigerant compressor | 76L |
| A98 | Panoramic sliding roof control module | 29L |
| A98 | Panoramic sliding roof control module | 25L |
| A98/2 | Panoramic roof roller sun blind control module | 20L |
| A98/2 | Panoramic roof roller sun blind control module | 33L |
| B98/1 | Rear passenger compartment CO2 sensor | 102L |
| Code 1U6 | Refrigerant R744 | 100E |
| Code 233 | DISTRONIC PLUS | 78E |
| Code 386 | Comfort telephony | 108E |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 27F |
| Code 398 | Panoramic roof with MAGIC SKY CONTROL | 31F |
| Code 413 | Panoramic sliding sunroof | 23F |
| Code 448 | Touchpad | 66H |
| Code 463 | Head-up display | 58E |
| Code 487 | MAGIC BODY CONTROL | 6E |
| Code 489 | AIRMATIC | 6F |
| Code 498 | Japan version | 43H |
| Code 582 | Air conditioning in rear | 97E |
| Code B24 | Radio remote control for stationary heater | 108F |
| Code ME04 | Mild hybrid drive | 74K |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 74K |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 104E |
| Code P21 | AIR-BALANCE package | 55E |
| F1/3 | Right A-pillar fuse box | 4A |
| F1/3 | Right A-pillar fuse box | 12A |
| F1/3 | Right A-pillar fuse box | 20A |
| F1/3 | Right A-pillar fuse box | 28A |
| F1/3 | Right A-pillar fuse box | 36A |
| F1/3 | Right A-pillar fuse box | 44A |
| F1/3 | Right A-pillar fuse box | 53A |
| F1/3 | Right A-pillar fuse box | 60A |
| F1/3 | Right A-pillar fuse box | 68A |
| F1/3 | Right A-pillar fuse box | 77A |
| F1/3 | Right A-pillar fuse box | 84A |
| F1/3 | Right A-pillar fuse box | 92A |
| F1/3 | Right A-pillar fuse box | 100A |
| F1/3 | Right A-pillar fuse box | 109A |

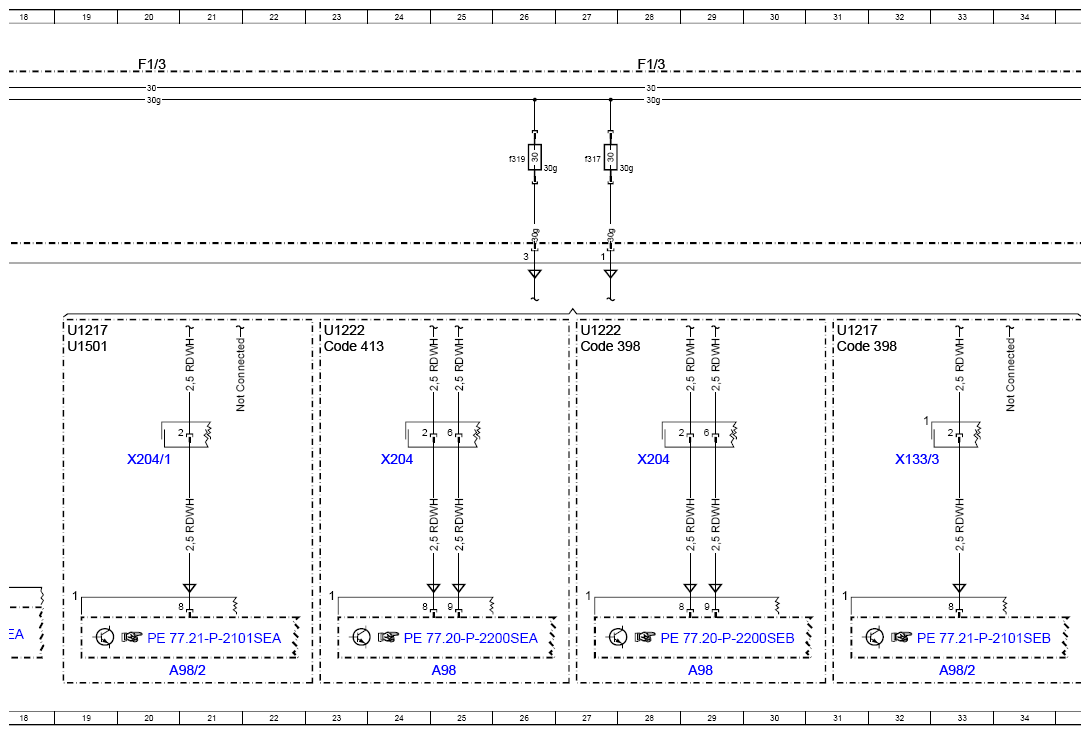

| F1/3f317 | Fuse 317 | 27C |

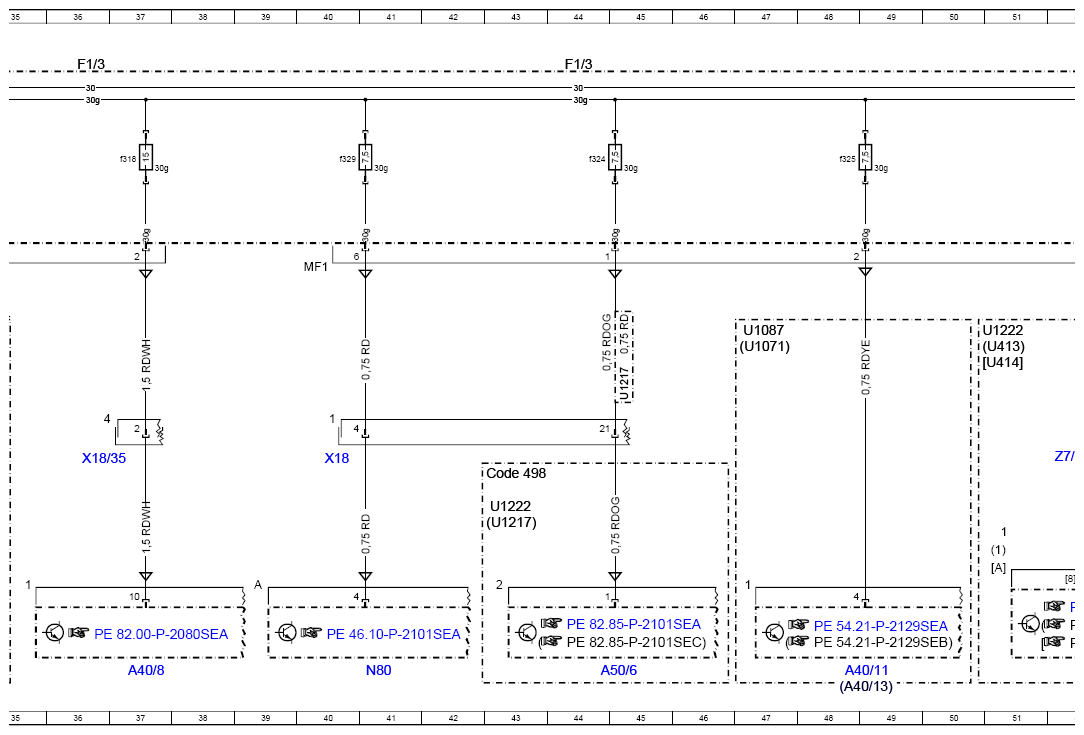

| F1/3f318 | Fuse 318 | 37C |
| F1/3f319 | Fuse 319 | 26C |

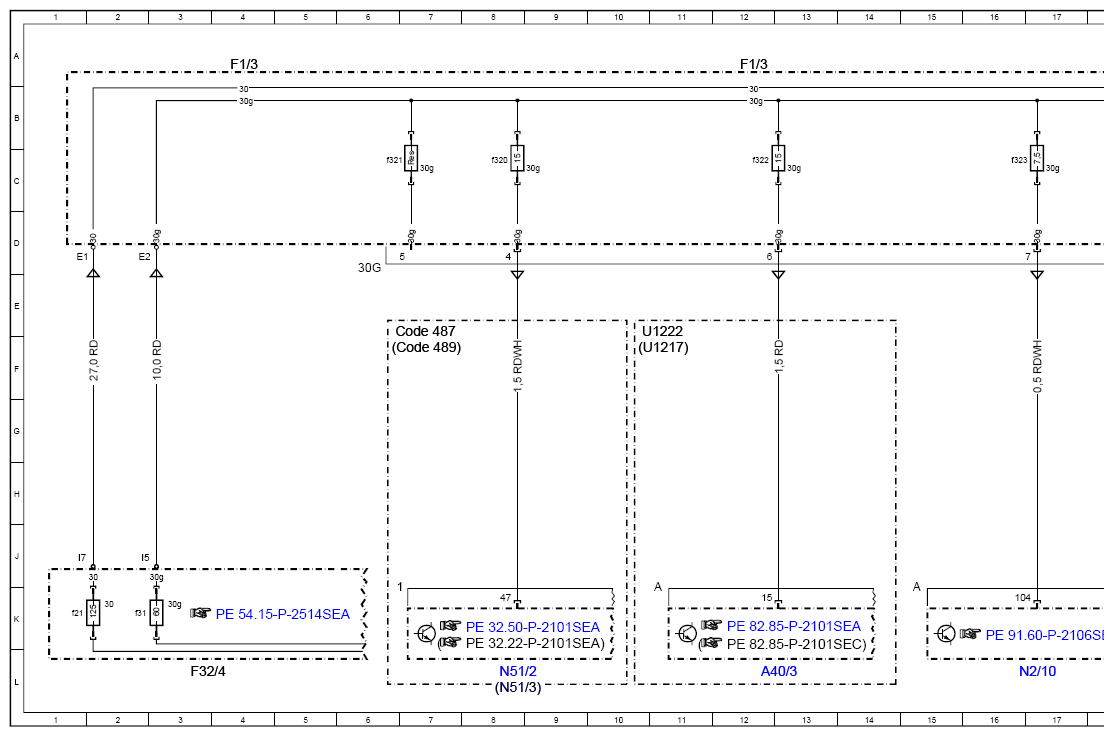

| F1/3f320 | Fuse 320 | 8C |
| F1/3f321 | Fuse 321 | 6C |
| F1/3f322 | Fuse 322 | 12C |
| F1/3f323 | Electrical fuse 323 | 16C |
| F1/3f324 | Fuse 324 | 44C |
| F1/3f325 | Fuse 325 | 48C |

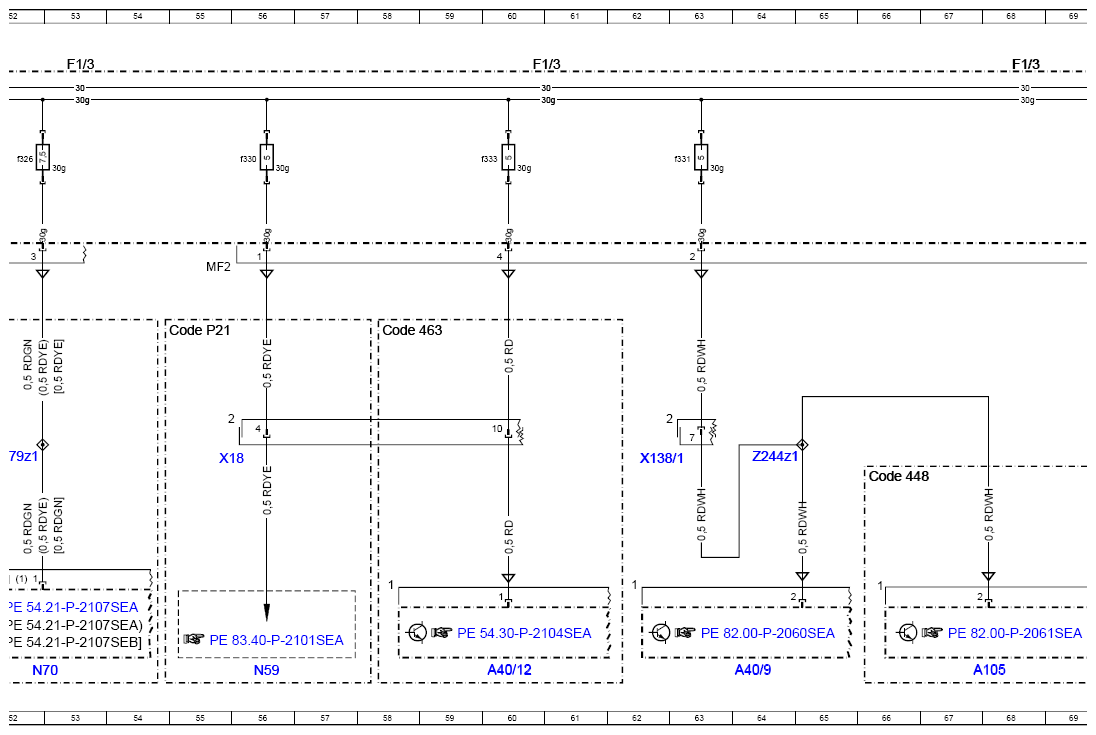

| F1/3f326 | Fuse 326 | 52C |
| F1/3f329 | Electrical fuse 329 | 40C |
| F1/3f330 | Fuse 330 | 56C |
| F1/3f331 | Fuse 331 | 63C |
| F1/3f332 | Fuse 332 | 71C |
| F1/3f333 | Fuse 333 | 60C |

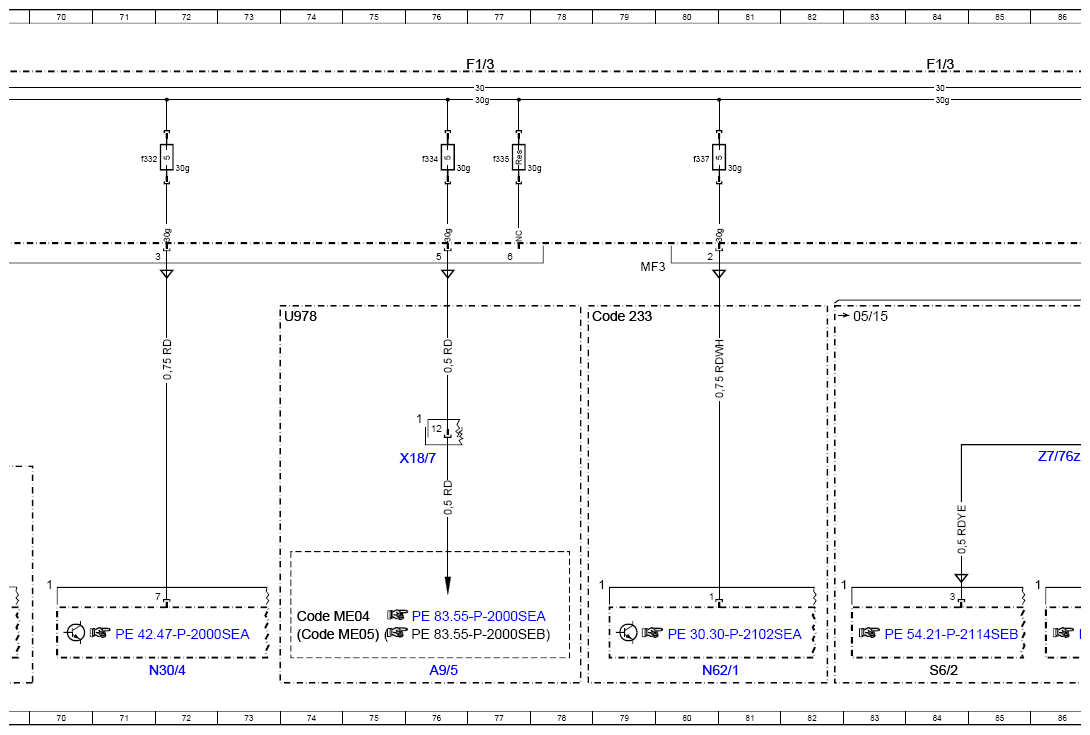

| F1/3f334 | Fuse 334 | 76C |
| F1/3f335 | Fuse 335 | 77C |

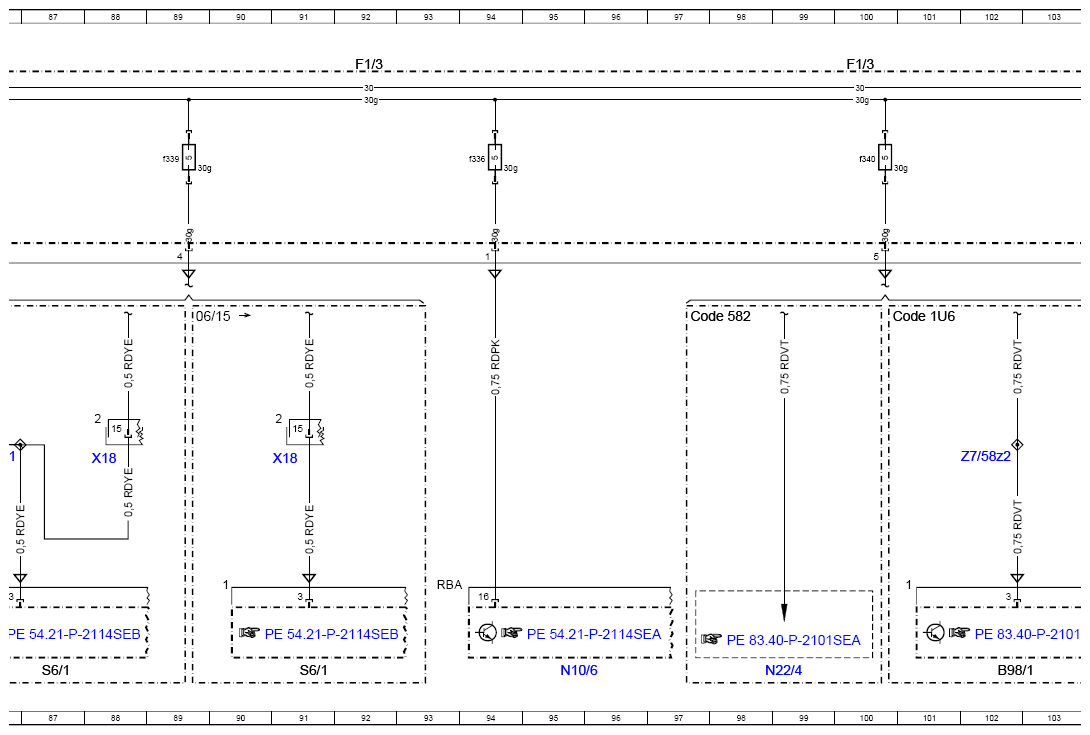

| F1/3f336 | Fuse 336 | 94C |
| F1/3f337 | Fuse 337 | 80C |
| F1/3f339 | Fuse 339 | 89C |
| F1/3f340 | Fuse 340 | 100C |

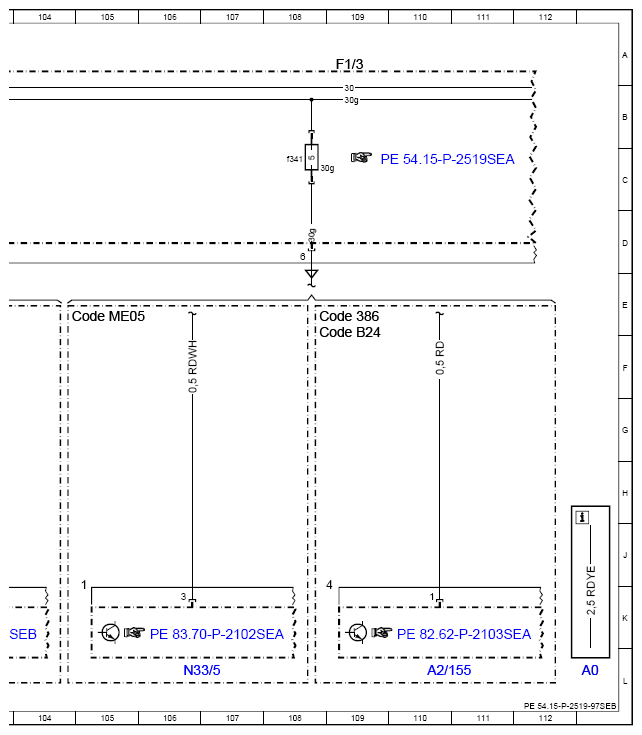

| F1/3f341 | Fuse 341 | 108C |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f21 | Fuse 21 | 1K |
| F32/4f31 | Fuse 31 | 2K |
| N10/6 | Front SAM control unit | 95L |
| N2/10 | Supplemental restraint system control unit | 17L |
| N22/4 | Rear air conditioning operating unit | 99L |
| N30/4 | Electronic Stability Program control unit | 72L |
| N33/5 | High-voltage PTC heater | 106L |
| N51/2 | Active Body Control control unit | 8L |
| N51/3 | AIRMATIC control unit | 8L |
| N59 | Perfume atomizer generator | 56L |
| N62/1 | Radar sensors control unit | 80L |
| N70 | Overhead control panel control unit | 52L |
| N80 | Steering column module control unit | 41L |
| S6/1 | Driver-side instrument panel button group | 91L |
| S6/1 | Driver-side instrument panel button group | 87L |
| S6/2 | Center instrument panel button group | 84L |
| U1071 | Valid for stereo multifunction camera | 47F |
| U1087 | Valid for mono multifunction camera | 47E |
| U1217 | Valid for model series 217 | 45G |
| U1217 | Valid for model series 217 | 43J |
| U1217 | Valid for model series 217 | 10F |
| U1217 | Valid for model series 217 | 19E |
| U1217 | Valid for model series 217 | 31E |
| U1222 | Valid for model series 222 | 43H |
| U1222 | Valid for model series 222 | 10E |
| U1222 | Valid for model series 222 | 23E |
| U1222 | Valid for model series 222 | 27E |
| U1222 | Valid for model series 222 | 50E |
| U1501 | Valid without code (398) Panoramic roof with MAGIC SKY CONTROL | 19F |
| U413 | Valid for model 217.3 | 50F |
| U414 | Valid for model 217.4 | 50F |
| U978 | Valid for hybrid drive | 74E |
| X133/3 | MAGIC SKY CONTROL electrical connector | 32H |
| X138/1 | Front center console electrical connector | 62H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 40H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 56H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 88H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 91H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 36H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 76H |
| X204 | Panoramic sliding roof electrical connector | 24H |
| X204 | Panoramic sliding roof electrical connector | 28H |
| X204/1 | Panoramic roof roller sun blind electrical connector | 20H |
| Z244z1 | Touchpad terminal 30g connector sleeve | 64G |
| Z7/58z2 | Tml. 30 connector sleeve | 102G |
| Z7/76z1 | Cockpit circuit 30G connector sleeve | 86G |
| Z7/79z1 | Circuit 30g connector sleeve | 52G |
