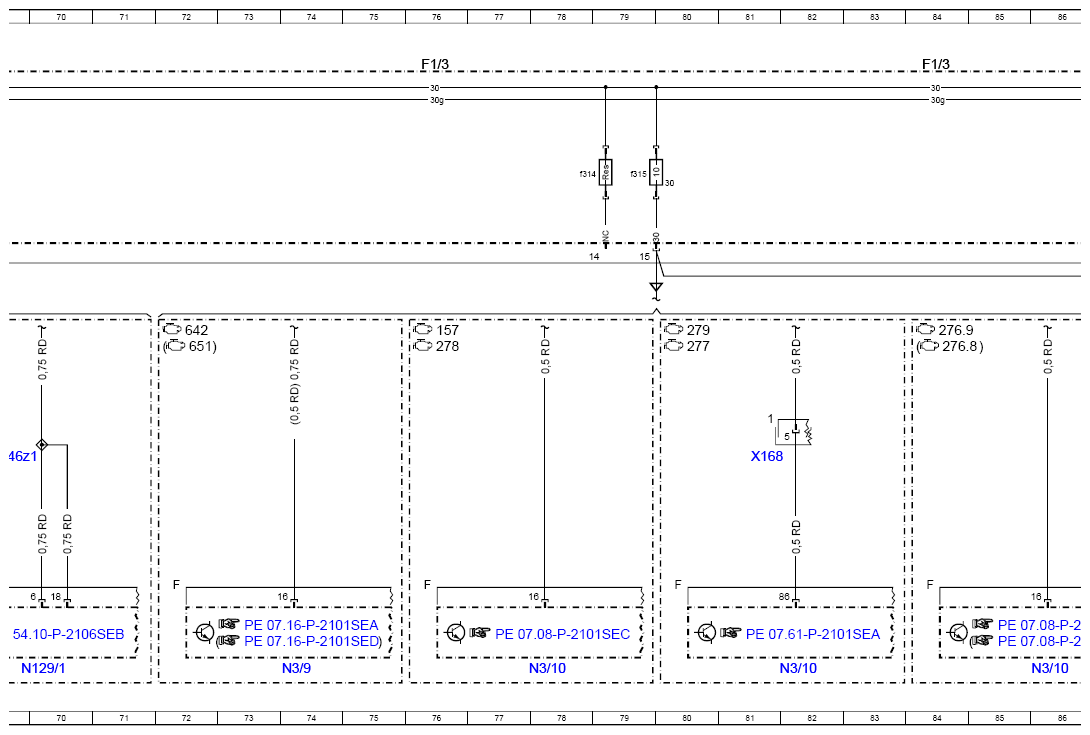

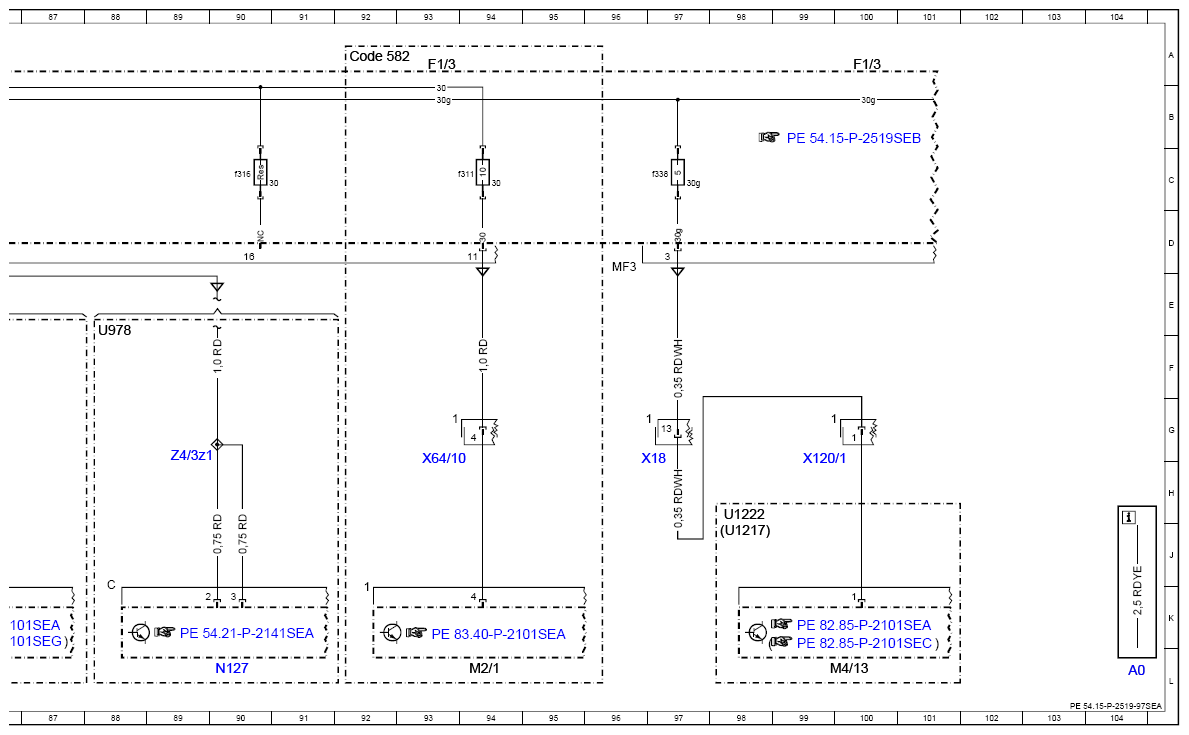

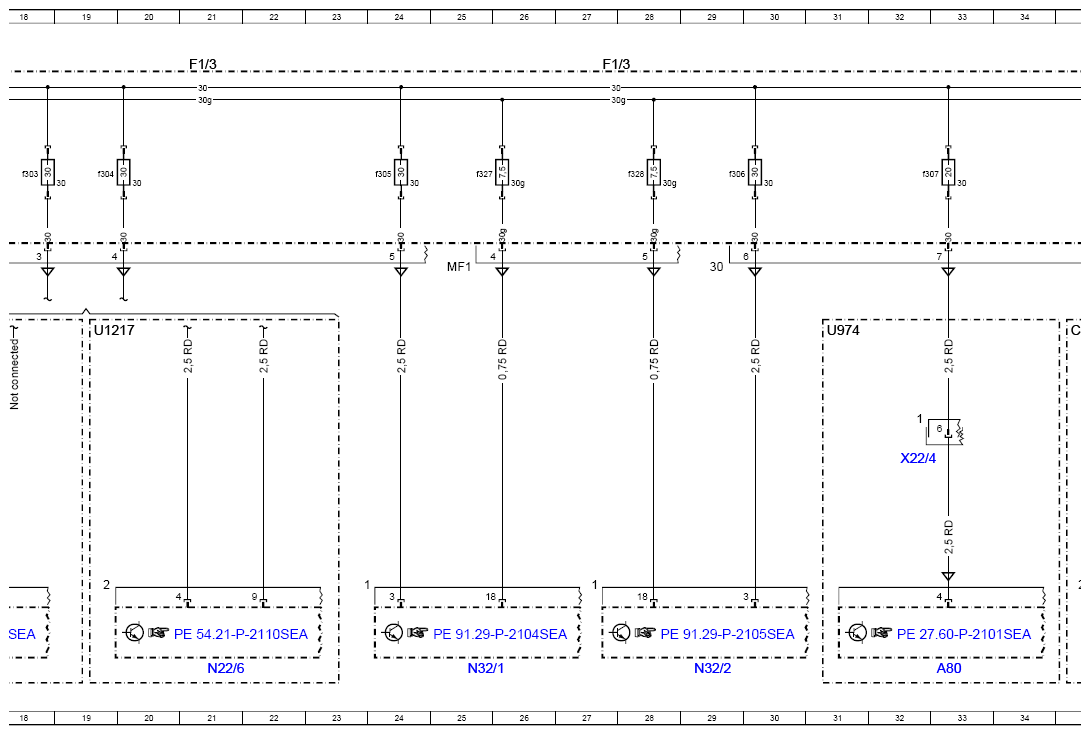

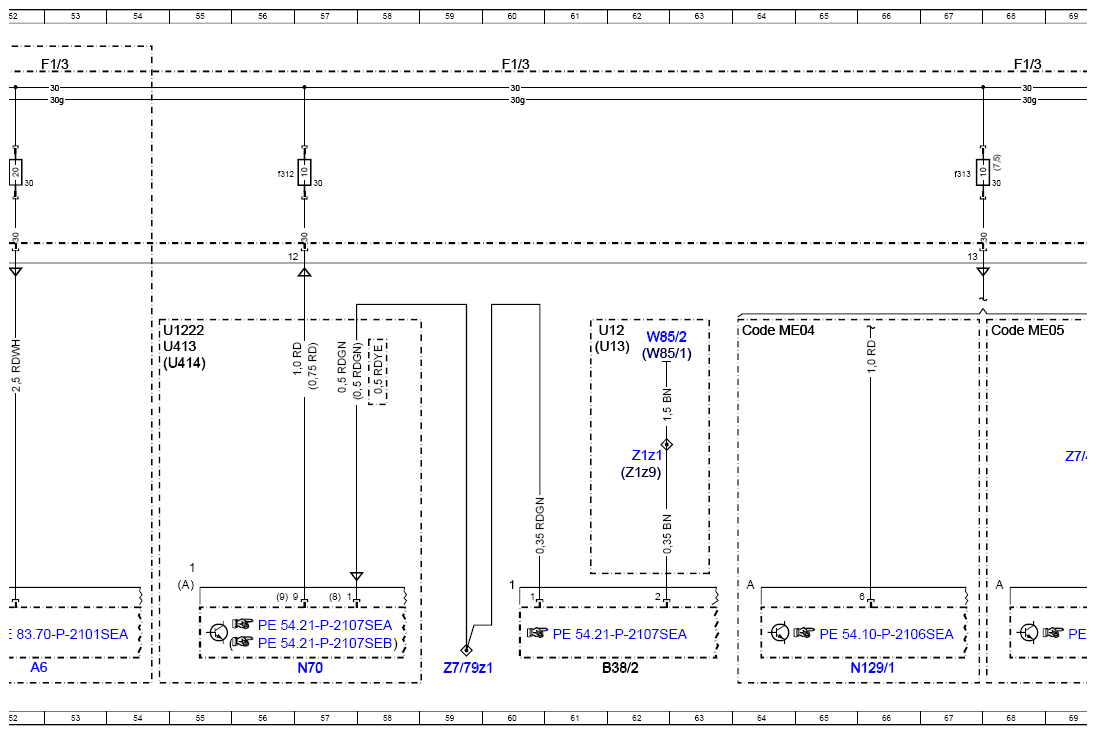

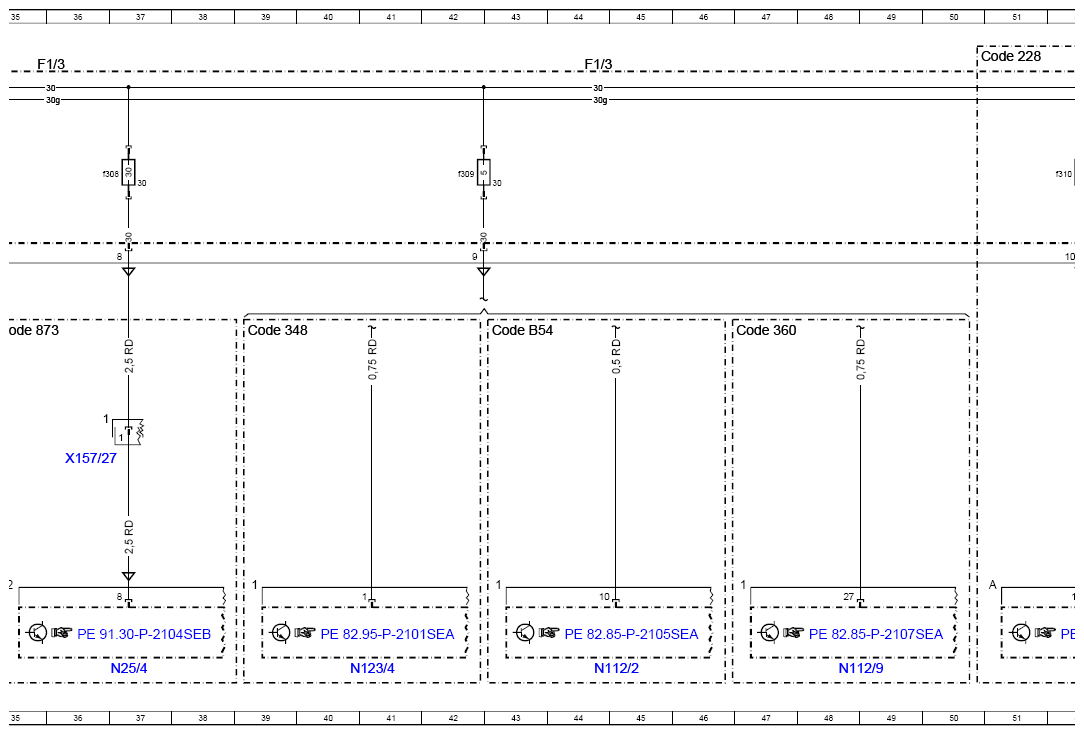

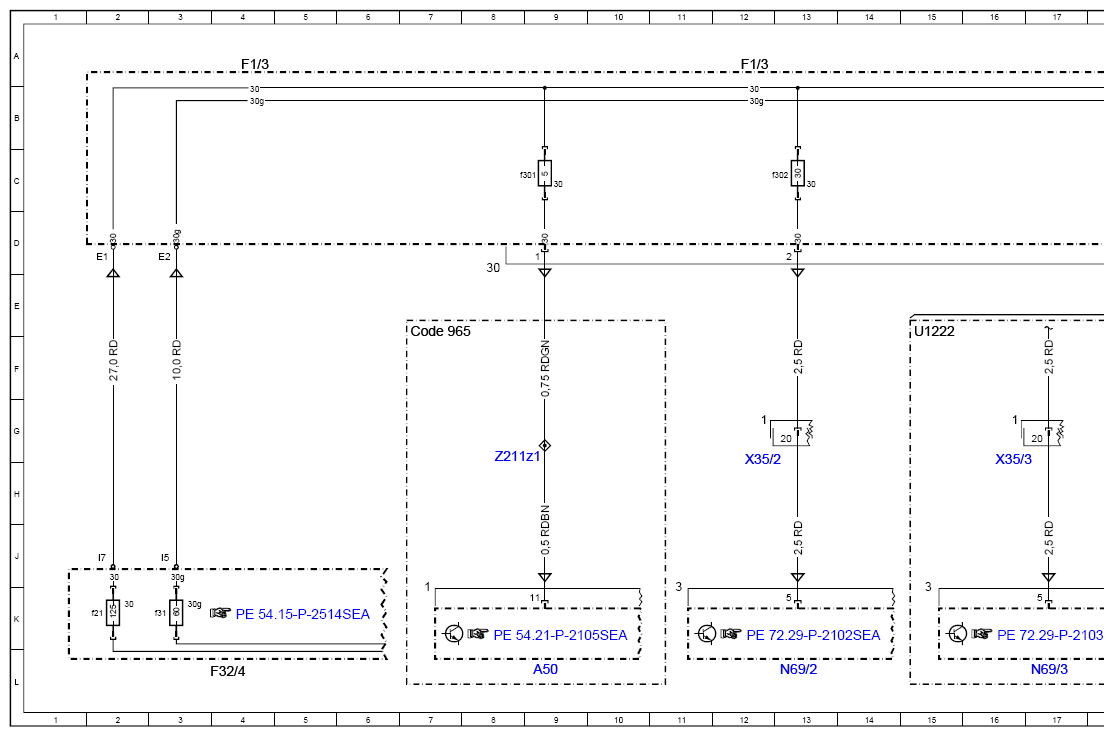

Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97SEA
Model 217 up to model year 2018 Fuse box F1/3, Sheet 1
Model 222 up to model year 2018 Fuse box F1/3, Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 104L |
| A50 | Taximeter | 9L |
| A6 | Stationary heater unit | 52L |
| A80 | Intelligent servo module for DIRECT SELECT | 33L |
| B38/2 | Rain/light sensor with additional functions | 62L |
| Code 228 | Stationary heater | 50A |
| Code 348 | Emergency call/assistance system | 39E |
| Code 360 | HERMES UMTS | 47E |
| Code 582 | Air conditioning in rear | 92A |
| Code 873 | Right and left front seat heaters | 35E |
| Code 965 | Electrical preinstallation/rental vehicle | 7E |
| Code B54 | Live Traffic Information | 43E |
| Code ME04 | Mild hybrid drive | 64E |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 68E |
| F1/3 | Right A-pillar fuse box | 53A |
| F1/3 | Right A-pillar fuse box | 4A |
| F1/3 | Right A-pillar fuse box | 12A |
| F1/3 | Right A-pillar fuse box | 21A |
| F1/3 | Right A-pillar fuse box | 27A |
| F1/3 | Right A-pillar fuse box | 35A |
| F1/3 | Right A-pillar fuse box | 44A |
| F1/3 | Right A-pillar fuse box | 60A |
| F1/3 | Right A-pillar fuse box | 68A |
| F1/3 | Right A-pillar fuse box | 76A |
| F1/3 | Right A-pillar fuse box | 84A |
| F1/3 | Right A-pillar fuse box | 93A |
| F1/3 | Right A-pillar fuse box | 100A |
| F1/3f301 | Fuse 301 | 8C |
| F1/3f302 | Fuse 302 | 13C |
| F1/3f303 | Fuse 303 | 18C |
| F1/3f304 | Fuse 304 | 19C |
| F1/3f305 | Fuse 305 | 24C |
| F1/3f306 | Fuse 306 | 29C |
| F1/3f307 | Fuse 307 | 32C |
| F1/3f308 | Fuse 308 | 36C |
| F1/3f309 | Fuse 309 | 42C |
| F1/3f310 | Fuse 310 | 52C |
| F1/3f311 | Fuse 311 | 93C |
| F1/3f312 | Fuse 312 | 56C |
| F1/3f313 | Fuse 313 | 67C |
| F1/3f314 | Fuse 314 | 78C |
| F1/3f315 | Fuse 315 | 79C |
| F1/3f316 | Fuse 316 | 90C |
| F1/3f327 | Fuse 327 | 25C |
| F1/3f328 | Fuse 328 | 28C |
| F1/3f338 | Fuse 338 | 97C |
| F32/4 | Vehicle interior prefuse box | 4L |
| F32/4f21 | Fuse 21 | 2K |
| F32/4f31 | Fuse 31 | 3K |
| M2/1 | Rear blower motor | 94L |
| M4/13 | COMAND fan motor | 100L |
| N112/2 | Telematics services communication module | 44L |
| N112/9 | HERMES control unit | 48L |
| N123/4 | Emergency call system control unit | 41L |
| N127 | Drivetrain control unit | 90L |
| N129/1 | Power electronics control unit | 66L |
| N129/1 | Power electronics control unit | 70L |
| N22/6 | Rear control unit | 21L |
| N25/4 | Front passenger seat heater control unit | 37L |
| N3/10 | ME-SFI [ME] control unit | 86L |
| N3/10 | ME-SFI [ME] control unit | 78L |
| N3/10 | ME-SFI [ME] control unit | 82L |
| N3/9 | CDI control unit | 74L |
| N32/1 | Driver seat control unit | 25L |
| N32/2 | Front passenger seat control unit | 29L |
| N69/2 | Right front door control unit | 13L |
| N69/3 | Left rear door control unit | 17L |
| N70 | Overhead control panel control unit | 57L |
| U12 | Valid for left-hand drive vehicles | 61E |
| U1217 | Valid for model series 217 | 19E |
| U1217 | Valid for model series 217 | 98J |
| U1222 | Valid for model series 222 | 15E |
| U1222 | Valid for model series 222 | 98H |
| U1222 | Valid for model series 222 | 54E |
| U13 | Valid for right-hand drive vehicles | 61F |
| U413 | Valid for model 217.3 | 54F |
| U414 | Valid for model 217.4 | 54F |
| U974 | Not valid for hybrid drive | 31E |
| U978 | Valid for hybrid drive | 88E |
| W85/1 | Driver footwell frame floor assembly ground point | 62F |
| W85/2 | Front passenger footwell frame floor assembly ground point | 62F |
| X120/1 | External fan electrical connector, Audio/COMAND display | 99H |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 36H |
| X168 | ME-SFI [ME]/CDI control unit vehicle interior wiring harness electrical connector | 81H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 97H |
| X22/4 | Transmission/frame floor assembly connecting point | 32H |
| X35/2 | Front passenger door electrical connector | 12H |
| X35/3 | Left rear door electrical connector | 16H |
| X64/10 | Booster blower intermediate connector | 93H |
| Z1z1 | Connector sleeve 2 in wiring harness | 62G |
| Z1z9 | Circuit 31 connector sleeve | 62H |
| Z211z1 | Circuit 30 supply line connector sleeve | 8G |
| Z4/3z1 | Tml. 30 connector sleeve | 89G |
| Z7/46z1 | Tml. 30 connector sleeve | 69G |
| Z7/79z1 | Circuit 30g connector sleeve | 59L |
