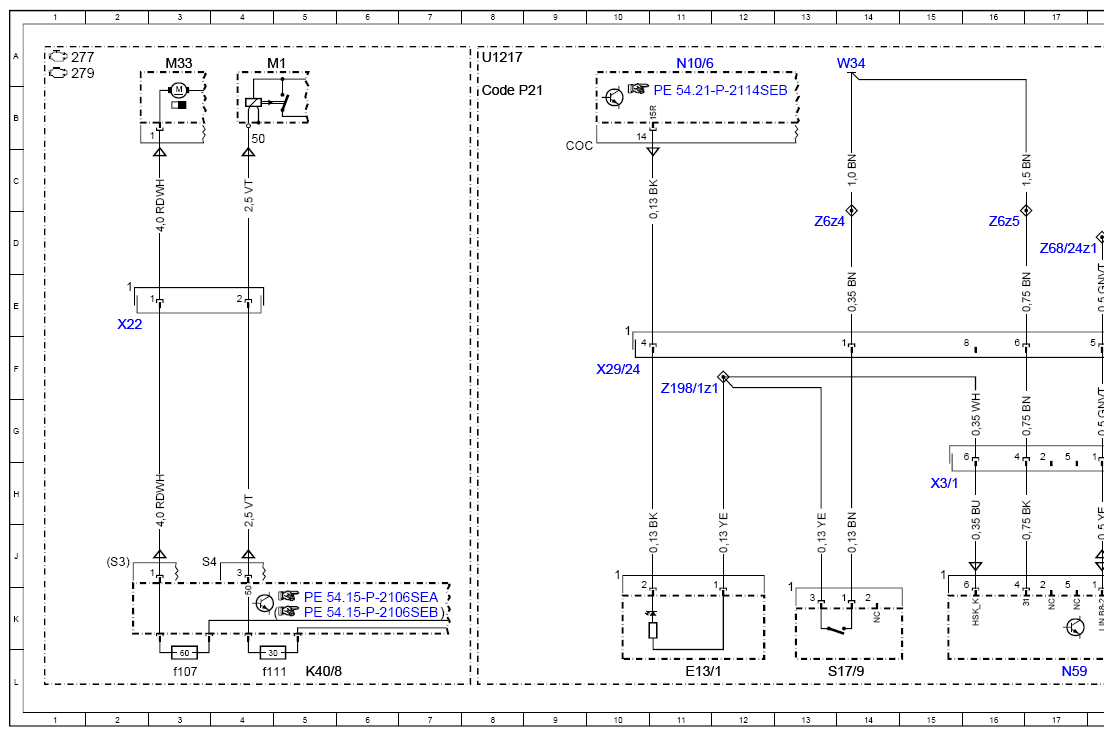

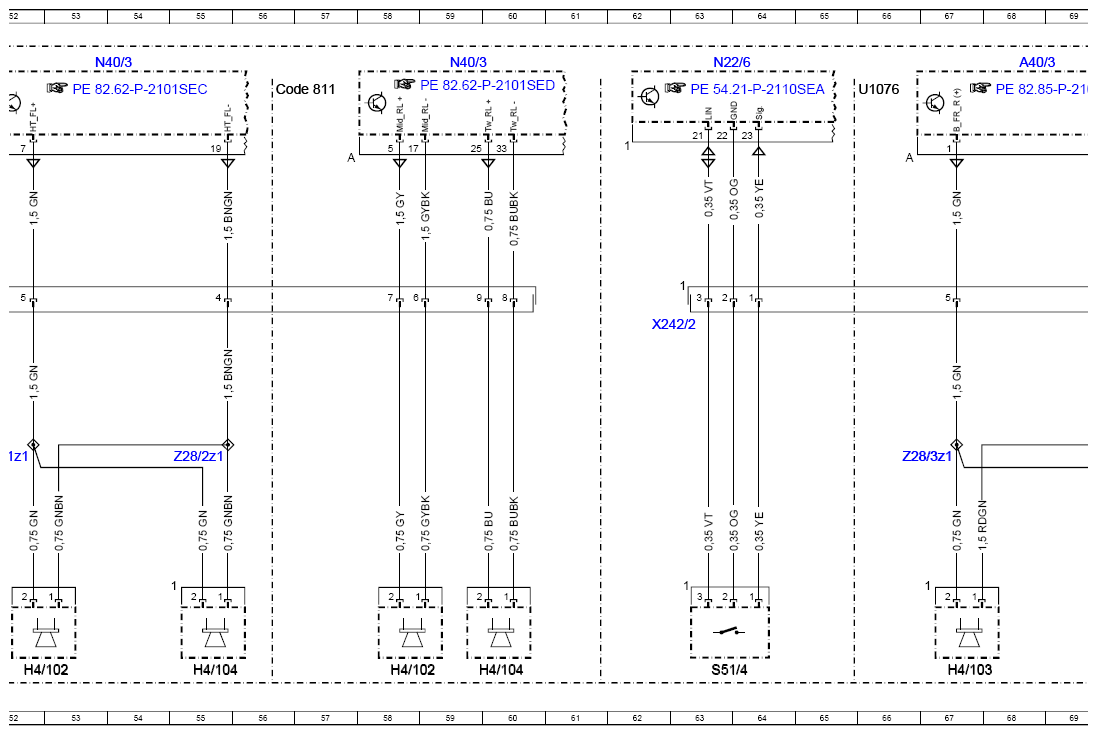

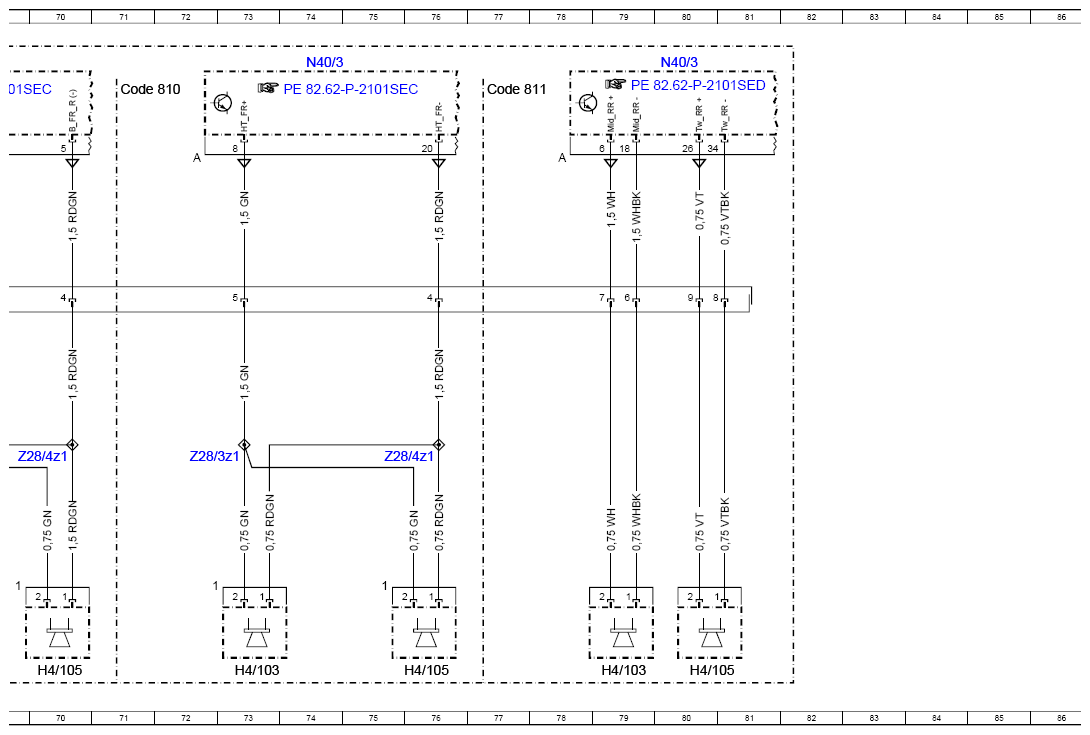

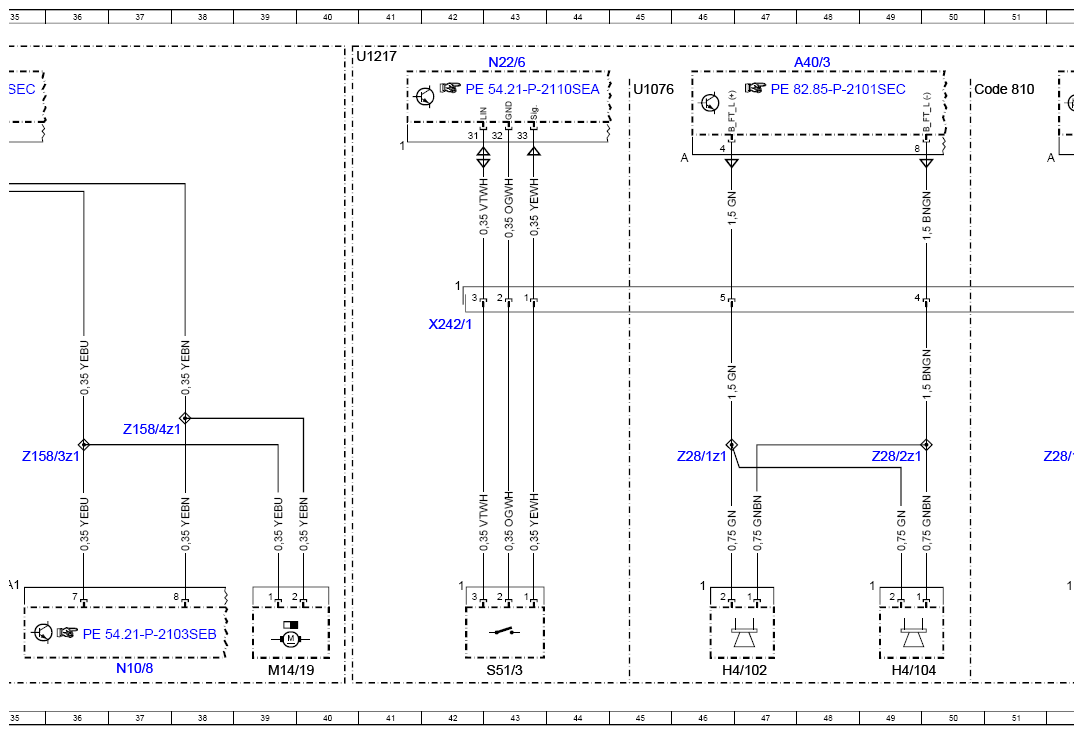

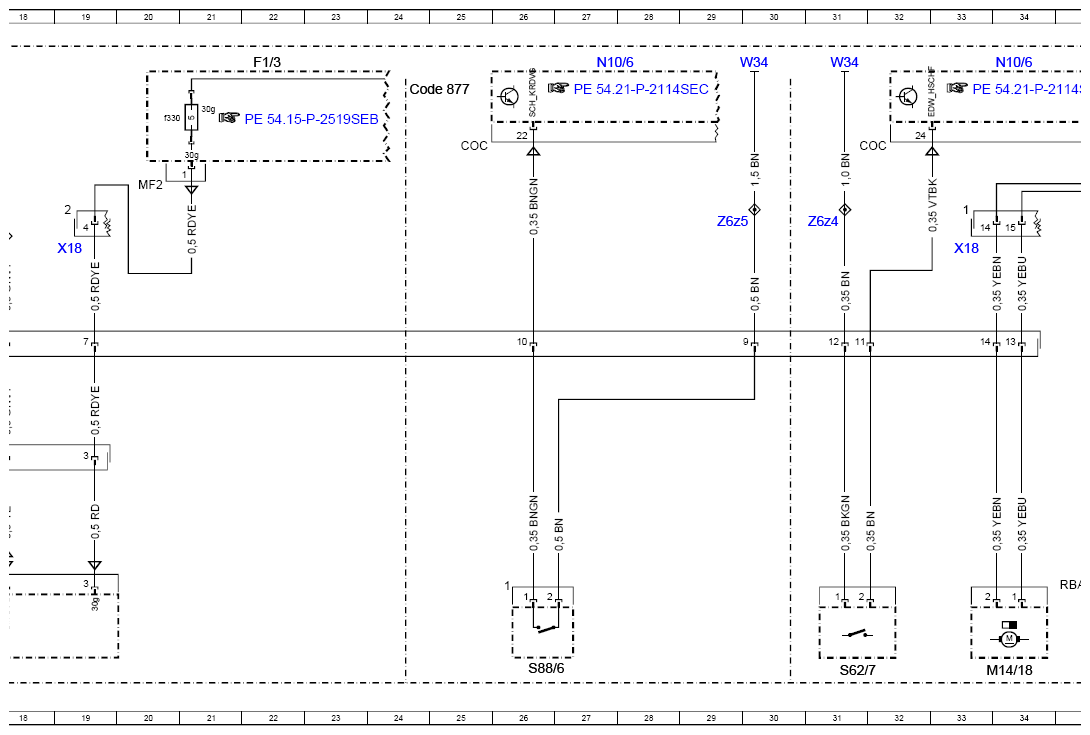

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEO
Model 217 up to model year 2018 X22(1), X29/24(1), X3/1, X242/1, X242/2
Model 222 up to model year 2018 X22(1), X29/24(1), X3/1, X242/1, X242/2
| Code: | Designation: | Position: |
|---|---|---|

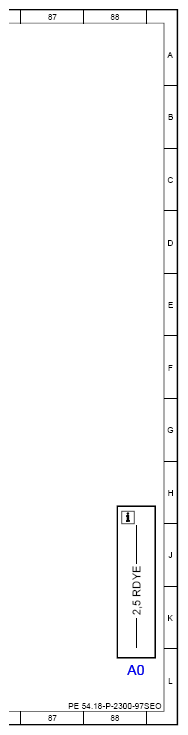

| A0 | Use of wiring diagrams | 88L |
| A40/3 | COMAND control unit | 48A |
| A40/3 | COMAND control unit | 68A |
| Code 810 | Sound system | 50B |
| Code 810 | Sound system | 71B |
| Code 811 | Advanced sound system | 56B |
| Code 811 | Advanced sound system | 77B |
| Code 877 | Ambiance illumination | 24B |
| Code P21 | AIR-BALANCE package | 8B |
| E13/1 | Glove box lamp | 11L |
| F1/3 | Right A-pillar fuse box | 22A |
| F1/3f330 | Fuse 330 | 20B |
| H4/102 | Left rear sidewall cover midrange speaker | 58L |
| H4/102 | Left rear sidewall cover midrange speaker | 46L |
| H4/102 | Left rear sidewall cover midrange speaker | 52L |
| H4/103 | Right rear sidewall cover midrange speaker | 67L |
| H4/103 | Right rear sidewall cover midrange speaker | 79L |
| H4/103 | Right rear sidewall cover midrange speaker | 73L |
| H4/104 | Left rear sidewall cover tweeter | 49L |
| H4/104 | Left rear sidewall cover tweeter | 55L |
| H4/104 | Left rear sidewall cover tweeter | 60L |
| H4/105 | Right rear sidewall cover tweeter | 70L |
| H4/105 | Right rear sidewall cover tweeter | 76L |
| H4/105 | Right rear sidewall cover tweeter | 80L |
| K40/8 | Engine fuse and relay module | 5L |
| K40/8f107 | Fuse 107 | 3L |
| K40/8f111 | Fuse 111 | 4L |
| M1 | Starter | 4A |
| M14/18 | Glove compartment central locking actuator motor | 34L |
| M14/19 | Stowage compartment central locking actuator motor | 39L |
| M33 | Electric air pump | 3A |
| N10/6 | Front SAM control unit | 11A |
| N10/6 | Front SAM control unit | 27A |
| N10/6 | Front SAM control unit | 34A |
| N10/8 | Rear SAM control unit | 37L |
| N22/6 | Rear control unit | 43A |
| N22/6 | Rear control unit | 63A |
| N40/3 | Sound system amplifier control unit | 53A |
| N40/3 | Sound system amplifier control unit | 59A |
| N40/3 | Sound system amplifier control unit | 80A |
| N40/3 | Sound system amplifier control unit | 74A |
| N59 | Perfume atomizer generator | 17L |
| S17/9 | Glove box lamp switch | 14L |
| S51/3 | Left rear heated seat switch | 43L |
| S51/4 | Right rear heated seat switch | 63L |
| S62/7 | Glove compartment anti-theft alarm system switch | 31L |
| S88/6 | Separate trunk lid lock switch | 26L |
| U1076 | Valid without code (810) Sound system or without code (811) Advanced Sound System | 45B |
| U1076 | Valid without code (810) Sound system or without code (811) Advanced Sound System | 65B |
| U1217 | Valid for model series 217 | 8A |
| U1217 | Valid for model series 217 | 40A |
| W34 | Left footwell ground point | 14A |
| W34 | Left footwell ground point | 30A |
| W34 | Left footwell ground point | 31A |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 19D |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 33D |
| X22 | Starter/air pump electrical connector | 2E |
| X242/1 | Left rear sidewall cover electrical connector | 42E |
| X242/2 | Right rear sidewall cover electrical connector | 63E |
| X29/24 | Cockpit glove compartment electrical connector | 10F |
| X3/1 | Scent generator electrical connector | 15H |
| Z158/3z1 | Connector sleeve 1 for glove compartment/stowage compartment central locking motors | 36G |
| Z158/4z1 | Connector sleeve 2 for glove compartment/stowage compartment central locking motors | 37G |
| Z198/1z1 | Glove compartment illumination and aromatization connector sleeve | 11F |
| Z28/1z1 | Left rear speaker group connector sleeve (+ signal) | 52G |
| Z28/1z1 | Left rear speaker group connector sleeve (+ signal) | 46G |
| Z28/2z1 | Left rear speaker group connector sleeve (- signal) | 49G |
| Z28/2z1 | Left rear speaker group connector sleeve (- signal) | 55G |
| Z28/3z1 | Right rear speaker group connector sleeve (+ signal) | 72G |
| Z28/3z1 | Right rear speaker group connector sleeve (+ signal) | 67G |
| Z28/4z1 | Right rear speaker group connector sleeve (- signal) | 70G |
| Z28/4z1 | Right rear speaker group connector sleeve (- signal) | 76G |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 17D |
| Z6z4 | Circuit 31 connector sleeve | 13D |
| Z6z4 | Circuit 31 connector sleeve | 31D |
| Z6z5 | Circuit 31 connector sleeve | 16D |
| Z6z5 | Circuit 31 connector sleeve | 29D |
