Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEN
Model 217 up to model year 2018 X167/2(1), X172/1(1)
Model 222 up to model year 2018 X167/2(1), X172/1(1)
| Code: | Designation: | Position: |
|---|---|---|

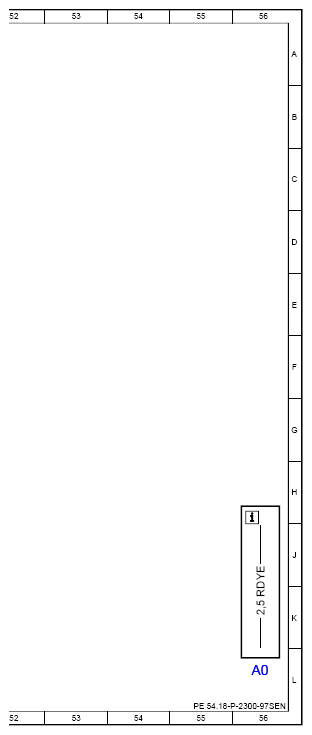

| A0 | Use of wiring diagrams | 56L |

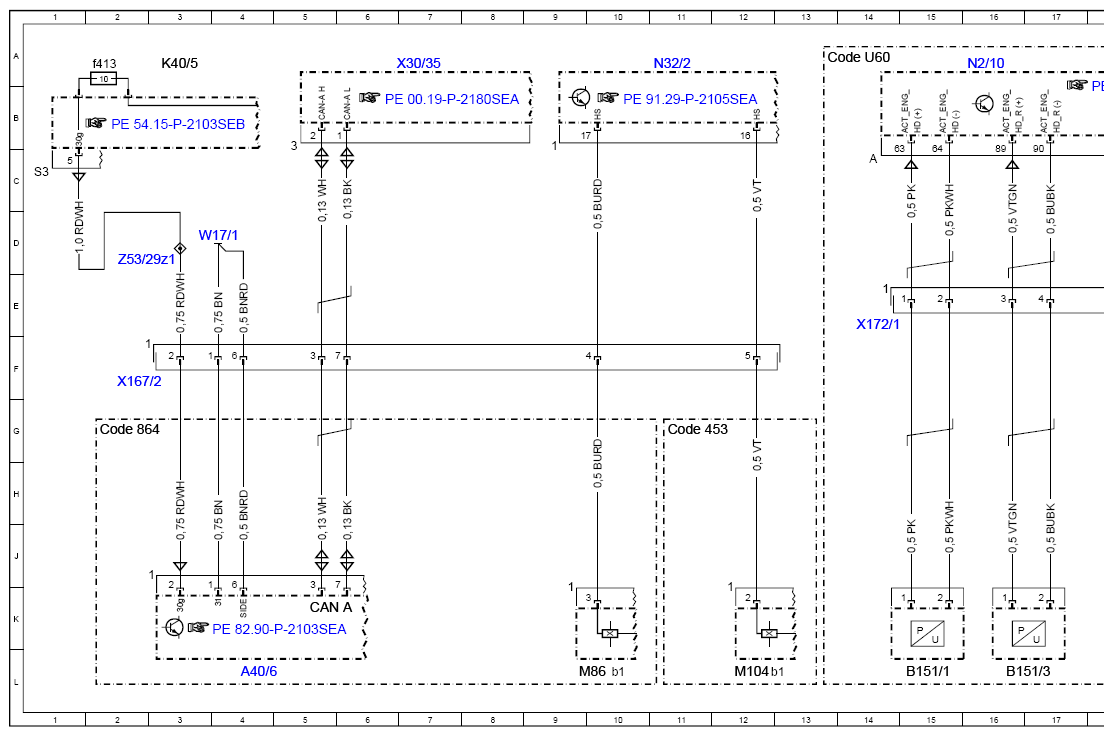

| A40/6 | Right rear display | 4L |

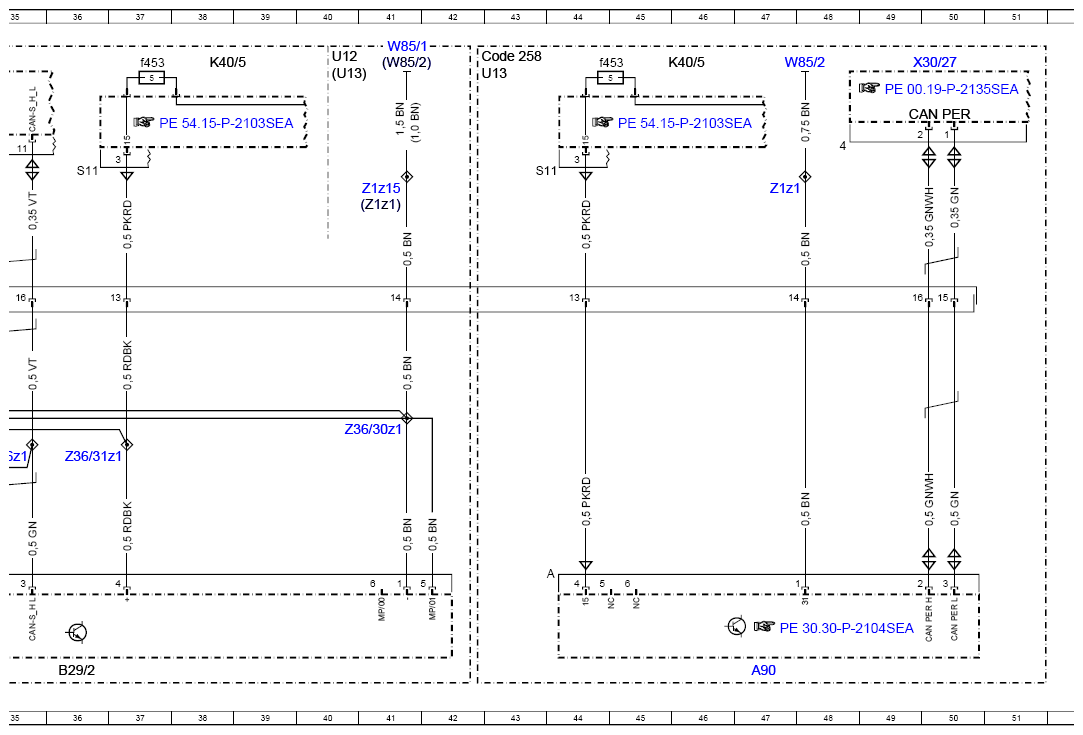

| A90 | COLLISION PREVENTION ASSIST controller unit | 47L |
| B151/1 | Left front bumper pedestrian protection sensor | 15L |
| B151/3 | Right front bumper pedestrian protection sensor | 16L |
| B29/2 | Left front bumper radar sensor | 36L |
| B29/3 | Right front bumper radar sensor | 32L |

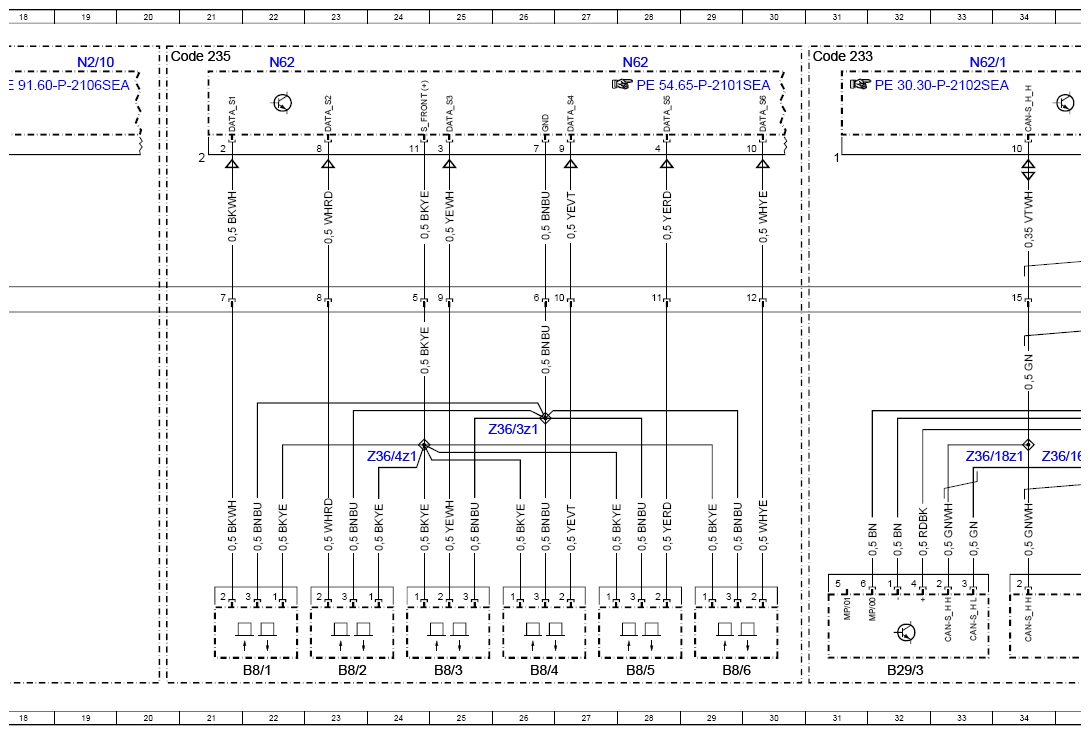

| B8/1 | Outer left front parking system distance sensor | 22L |
| B8/2 | Center left front parking system distance sensor | 23L |
| B8/3 | Inner left front parking system distance sensor | 25L |
| B8/4 | Inner right front parking system distance sensor | 26L |
| B8/5 | Center right front parking system distance sensor | 28L |
| B8/6 | Outer right front parking system distance sensor | 29L |
| CAN A | Telematics CAN | 5K |
| CAN PER | Peripherals CAN | 50B |
| Code 233 | DISTRONIC PLUS | 31A |
| Code 235 | Active Park Assist | 20A |
| Code 258 | COLLISION PREVENTION ASSIST | 42A |
| Code 453 | Rear reclining seats | 11G |
| Code 864 | Rear compartment entertainment | 2G |
| Code U60 | Pedestrian protection | 13A |
| K40/5 | Rear fuse and relay module | 3A |
| K40/5 | Rear fuse and relay module | 38A |
| K40/5 | Rear fuse and relay module | 46A |
| K40/5f413 | Fuse 413 | 2A |
| K40/5f453 | Fuse 453 | 37A |
| K40/5f453 | Fuse 453 | 44A |
| M104 | Footrest adjustment actuator motor | 12L |
| M104b1 | Footrest adjustment Hall sensor | 12L |
| M86 | Screen adjustment actuator motor | 10L |
| M86b1 | Screen adjustment Hall sensor | 10L |
| N2/10 | Supplemental restraint system control unit | 16A |
| N2/10 | Supplemental restraint system control unit | 19A |
| N32/2 | Front passenger seat control unit | 11A |
| N62 | Parking system control unit | 28A |
| N62 | Parking system control unit | 22A |
| N62/1 | Radar sensors control unit | 33A |
| U12 | Valid for left-hand drive vehicles | 40A |
| U13 | Valid for right-hand drive vehicles | 40A |
| U13 | Valid for right-hand drive vehicles | 42A |
| W17/1 | Left rear seat ground point | 3D |
| W85/1 | Driver footwell frame floor assembly ground point | 41A |
| W85/2 | Front passenger footwell frame floor assembly ground point | 41A |
| W85/2 | Front passenger footwell frame floor assembly ground point | 47A |
| X167/2 | Passenger-side rear seat entertainment system electrical connector | 2F |
| X172/1 | Front bumper radar sensors electrical connector | 14E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 50A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 7A |
| Z1z1 | Connector sleeve 2 in wiring harness | 41C |
| Z1z1 | Connector sleeve 2 in wiring harness | 47C |
| Z1z15 | Circuit 31 connector sleeve | 41C |
| Z36/16z1 | Front sensor CAN (low) connector sleeve | 35G |
| Z36/18z1 | Front sensor CAN (high) connector sleeve | 34G |
| Z36/30z1 | Front radar sensors ground line connector sleeve | 41G |
| Z36/31z1 | Front radar sensors power supply connector sleeve | 36G |
| Z36/3z1 | Front parking system sensors ground line connector sleeve | 26G |
| Z36/4z1 | Front parking system sensors positive line connector sleeve | 24G |
| Z53/29z1 | Rear entertainment system circuit 30 connector sleeve | 2D |
