Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEG
Model 217 up to model year 2018 X28/29(1), X28/30(1), X35/28(1) (Active Parking Assist), X35/28(1) (DISTRONIC PLUS)
Model 222 up to model year 2018 X28/29(1), X28/30(1), X35/28(1) (Active Parking Assist), X35/28(1) (DISTRONIC PLUS)

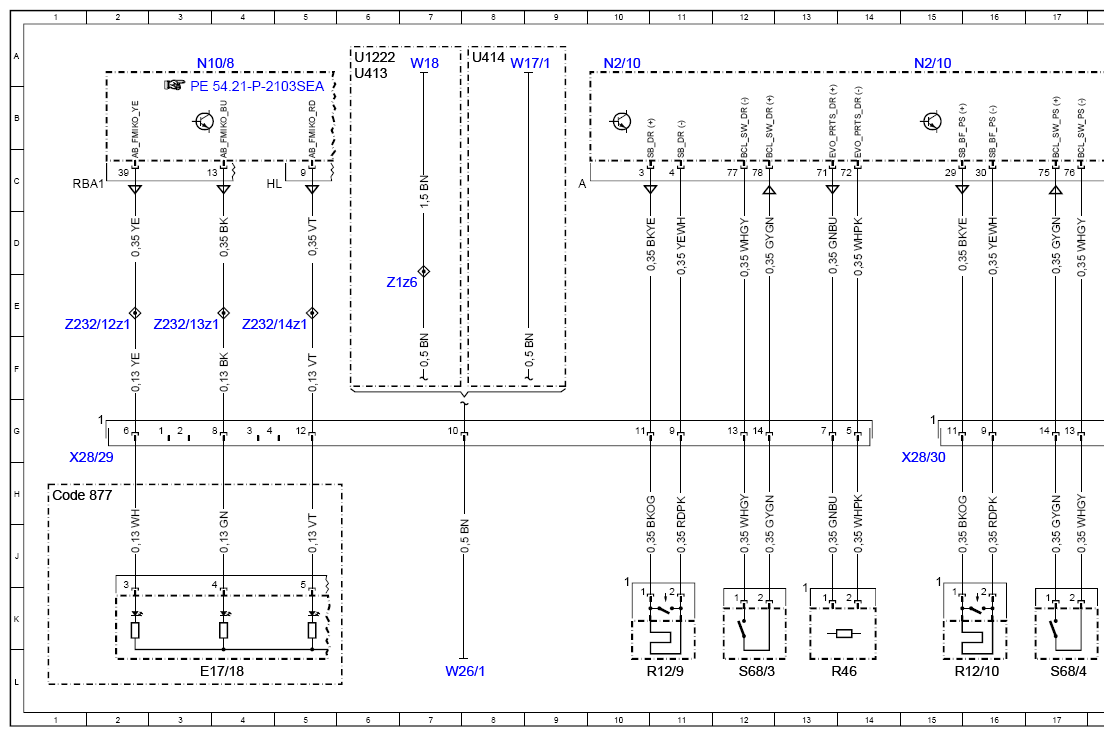

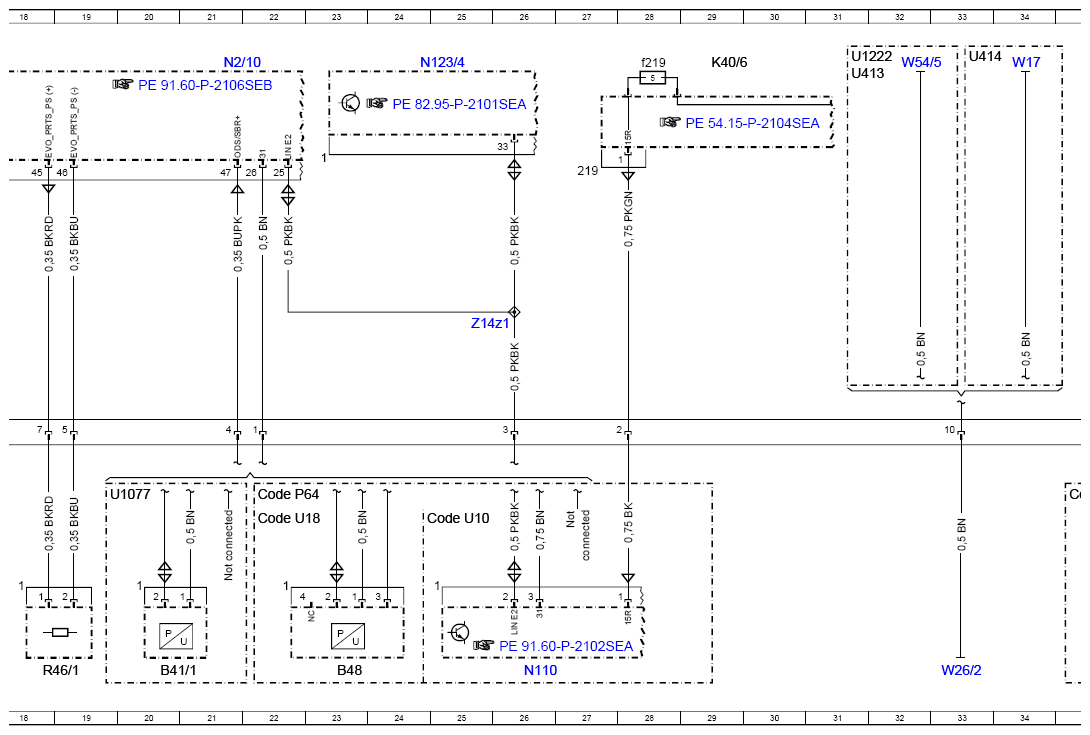

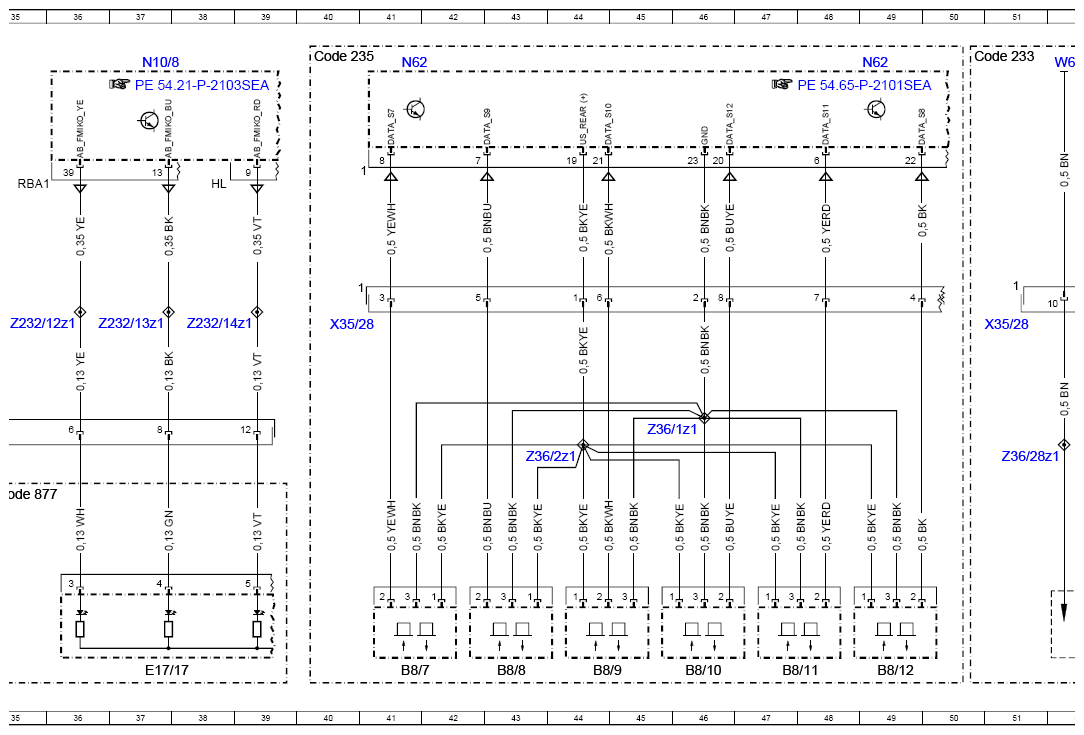

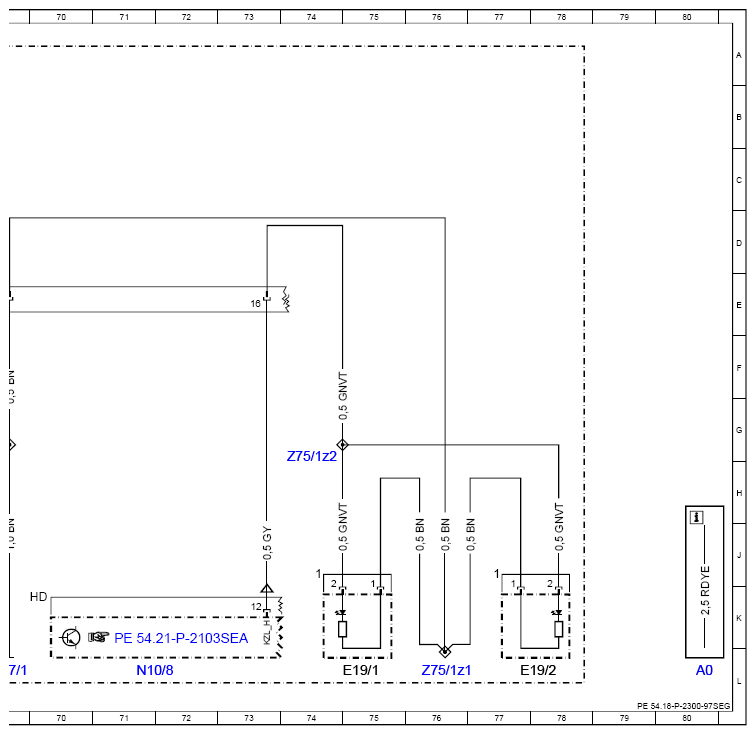

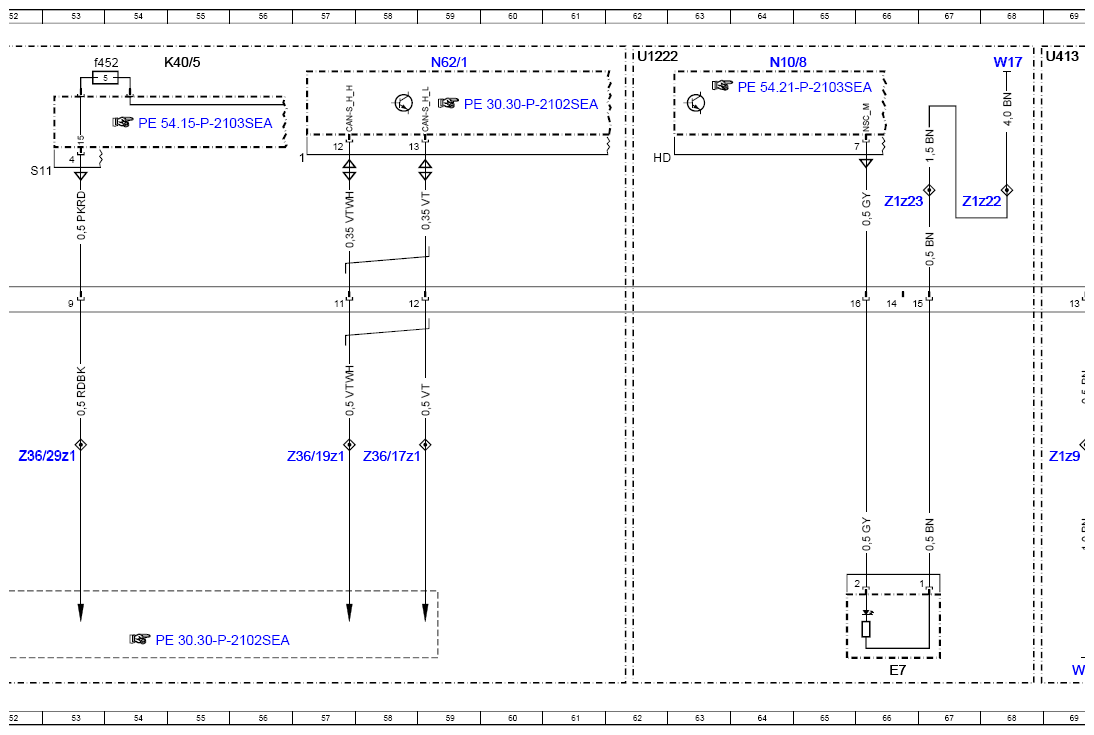

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| B41/1 | Front passenger seat occupied recognition | 20L |
| B48 | Front passenger seat occupied recognition and ACSR | 23L |
| B8/10 | Outer left rear parking system distance sensor | 46L |
| B8/11 | Center left rear parking system distance sensor | 47L |
| B8/12 | Center right rear parking system distance sensor | 49L |
| B8/7 | Outer right rear parking system distance sensor | 41L |
| B8/8 | Inner right rear parking system distance sensor | 43L |
| B8/9 | Inner left rear parking system distance sensor | 44L |
| Code 233 | DISTRONIC PLUS | 50A |
| Code 235 | Active Park Assist | 40A |
| Code 877 | Ambiance illumination | 1H |
| Code 877 | Ambiance illumination | 35H |
| Code P64 | Memory package | 22H |
| Code U10 | Front passenger seat with weight detection | 24H |
| Code U18 | Automatic child seat recognition (ACSR [AKSE]) | 22H |
| E17/17 | Right rear footwell lamp | 37L |
| E17/18 | Left rear footwell lamp | 4L |
| E19/1 | Left license plate lamp | 75L |
| E19/2 | Right license plate lamp | 77L |
| E7 | Center rear fog light | 66L |
| K40/5 | Rear fuse and relay module | 55A |
| K40/5f452 | Fuse 452 | 53A |
| K40/6 | Left fuse and relay module | 29A |
| K40/6f219 | Fuse 219 | 28A |
| N10/8 | Rear SAM control unit | 3A |
| N10/8 | Rear SAM control unit | 37A |
| N10/8 | Rear SAM control unit | 71L |
| N10/8 | Rear SAM control unit | 64A |
| N110 | Weight Sensing System (WSS) control unit | 26L |
| N123/4 | Emergency call system control unit | 25A |
| N2/10 | Supplemental restraint system control unit | 15A |
| N2/10 | Supplemental restraint system control unit | 10A |
| N2/10 | Supplemental restraint system control unit | 21A |
| N62 | Parking system control unit | 41A |
| N62 | Parking system control unit | 49A |
| N62/1 | Radar sensors control unit | 59A |
| R12/10 | Front passenger sidebag squib | 16L |
| R12/9 | Driver sidebag squib | 11L |
| R46 | Driver's seat PRE-SAFE® pulse squib | 14L |
| R46/1 | Front passenger seat PRE-SAFE® pulse squib | 18L |
| S68/3 | Driver seat belt buckle switch | 12L |
| S68/4 | Front passenger seat belt buckle switch | 17L |
| U1077 | Valid without code (P64) Memory package | 19H |
| U1222 | Valid for model series 222 | 6A |
| U1222 | Valid for model series 222 | 31A |
| U1222 | Valid for model series 222 | 62A |
| U413 | Valid for model 217.3 | 6A |
| U413 | Valid for model 217.3 | 31A |
| U413 | Valid for model 217.3 | 69A |
| U414 | Valid for model 217.4 | 8A |
| U414 | Valid for model 217.4 | 33A |
| W17 | Right rear seat ground point | 34A |
| W17 | Right rear seat ground point | 68A |
| W17/1 | Left rear seat ground point | 8A |
| W18 | Left front seat crossmember ground point | 7A |
| W26/1 | Driver sidebag ground point | 7L |
| W26/2 | Front passenger sidebag ground point | 33L |
| W54/5 | Right rear wheel well ground point | 32A |
| W6 | Left wheel arch trunk ground point | 52A |
| W7/1 | Right taillamp trunk ground point | 69L |
| X28/29 | Frame floor assembly/driver seat electrical connector | 2H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 15H |
| X35/28 | Rear bumper parking system electrical connector | 40E |
| X35/28 | Rear bumper parking system electrical connector | 51E |
| Z14z1 | Seat occupied LIN (LIN E2) connector sleeve | 25E |
| Z1z22 | Circuit 31 connector sleeve | 68C |
| Z1z23 | Circuit 31 connector sleeve | 66C |
| Z1z6 | Circuit 31 connector sleeve | 7E |
| Z1z9 | Circuit 31 connector sleeve | 69G |
| Z232/12z1 | LED K1 ambiance illumination connector sleeve (yellow) | 2E |
| Z232/12z1 | LED K1 ambiance illumination connector sleeve (yellow) | 35E |
| Z232/13z1 | LED K2 ambiance illumination connector sleeve (blue) | 3E |
| Z232/13z1 | LED K2 ambiance illumination connector sleeve (blue) | 37E |
| Z232/14z1 | LED K3 ambiance illumination connector sleeve (red) | 5E |
| Z232/14z1 | LED K3 ambiance illumination connector sleeve (red) | 38E |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 58G |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 57G |
| Z36/1z1 | Rear parking system sensors ground line connector sleeve | 45G |
| Z36/28z1 | Rear radar sensors ground line connector sleeve | 51G |
| Z36/29z1 | Rear radar sensors sensor power supply connector sleeve | 53G |
| Z36/2z1 | Rear parking system sensors power supply connector sleeve | 44G |
| Z75/1z1 | License plate lamp connector sleeve | 76L |
| Z75/1z2 | License plate lamp connector sleeve | 74G |
