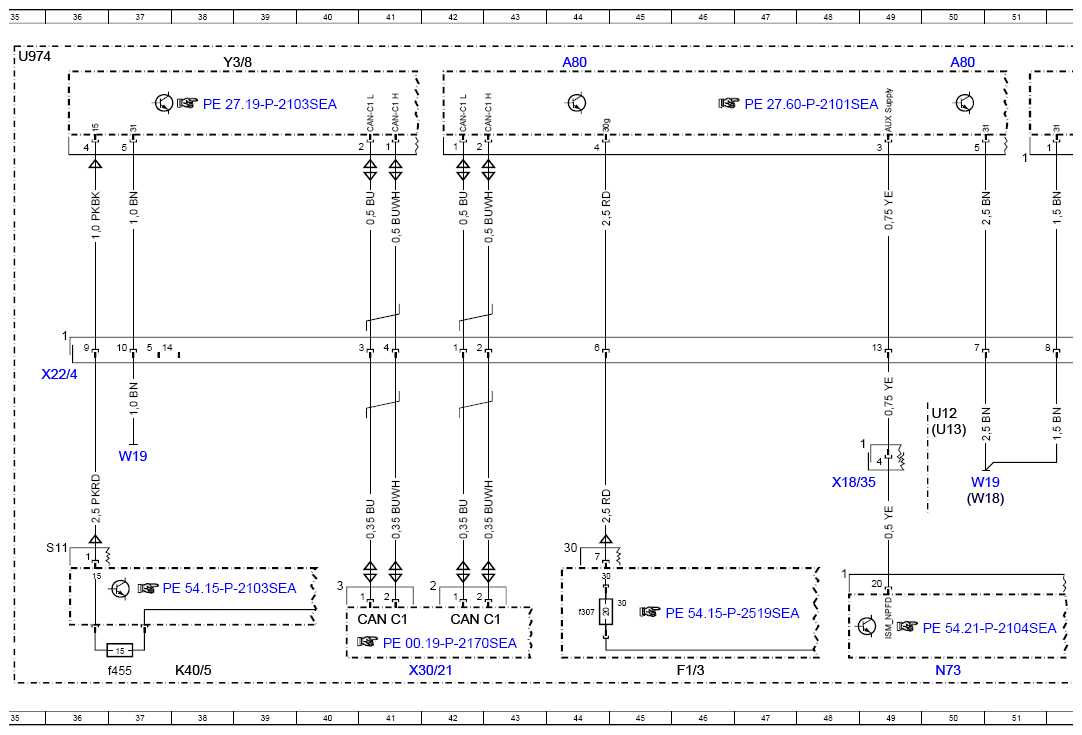

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEF
Model 217 up to model year 2018 X22/4(1), X23/9(1)
Model 222 up to model year 2018 X22/4(1), X23/9(1)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A100 | High-voltage battery module | 8L |
| A80 | Intelligent servo module for DIRECT SELECT | 44A |
| A80 | Intelligent servo module for DIRECT SELECT | 50A |
| A9/5 | Electric refrigerant compressor | 26L |

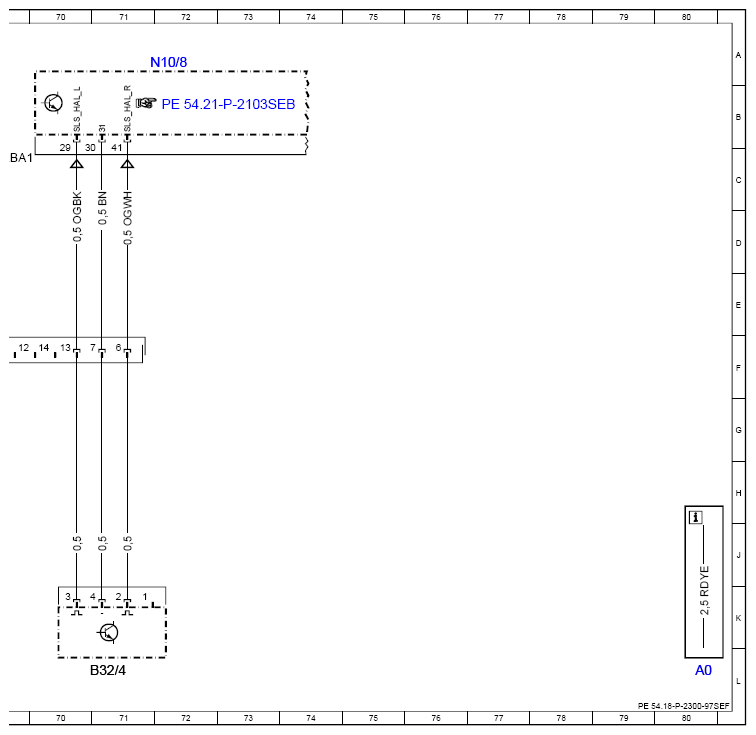

| B32/4 | Rear sun sensor | 71L |
| CAN C1 | Drive train CAN | 41K |
| CAN C1 | Drive train CAN | 16K |
| CAN C1 | Drive train CAN | 33K |
| CAN C1 | Drive train CAN | 53K |
| CAN C1 | Drive train CAN | 42K |
| Code 810 | Sound system | 57A |
| Code 811 | Advanced sound system | 62A |

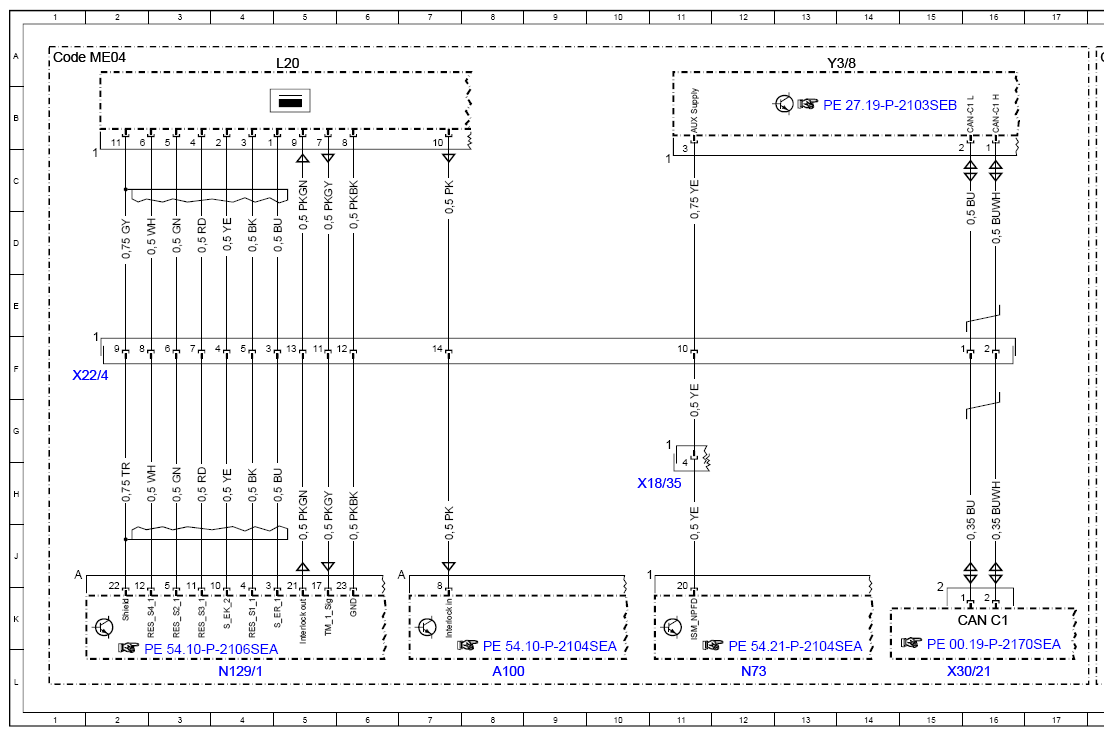

| Code ME04 | Mild hybrid drive | 1A |

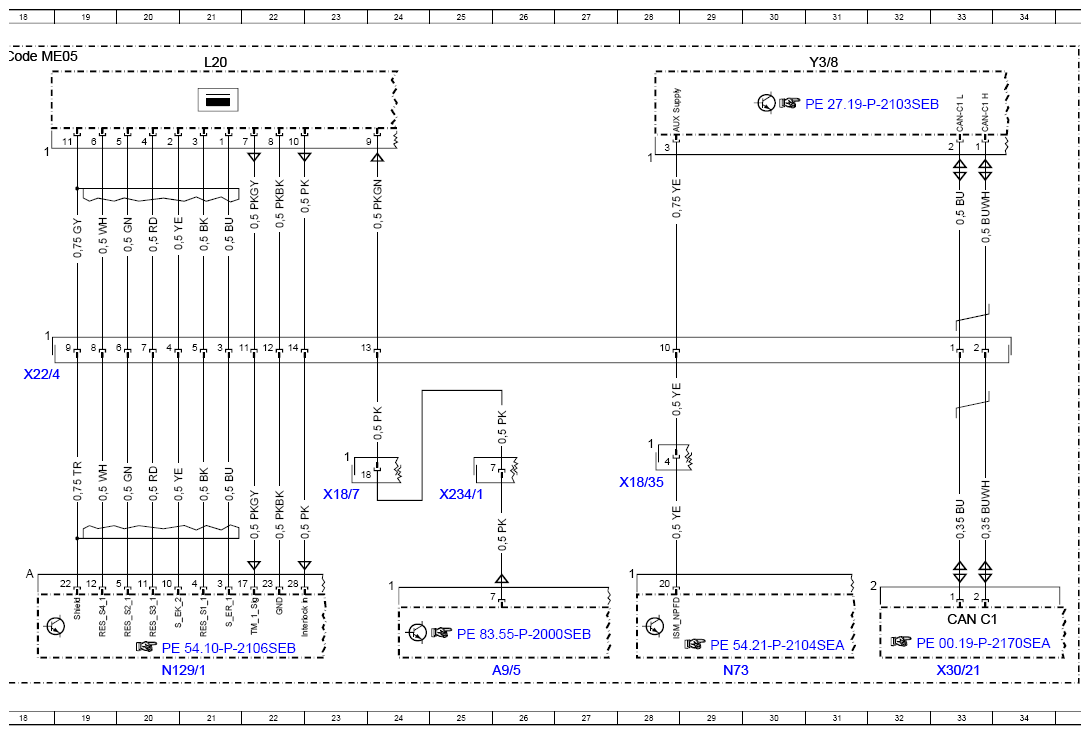

| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 18A |
| F1/3 | Right A-pillar fuse box | 46L |
| F1/3f307 | Fuse 307 | 44K |
| H4/62 | Left rear surround sound system midrange speaker | 59L |
| H4/63 | Right rear surround sound system midrange speaker | 60L |
| H4/92 | Left rear surround sound system tweeter | 67L |
| H4/93 | Left rear surround sound system midrange speaker | 64L |
| H4/94 | Right rear surround sound system tweeter | 68L |
| H4/95 | Right rear surround sound system midrange speaker | 65L |
| K40/5 | Rear fuse and relay module | 38L |
| K40/5f455 | Fuse 455 | 37L |
| L20 | Electric machine rotor position sensor | 5A |
| L20 | Electric machine rotor position sensor | 21A |
| N10/8 | Rear SAM control unit | 72A |
| N129/1 | Power electronics control unit | 4L |
| N129/1 | Power electronics control unit | 20L |

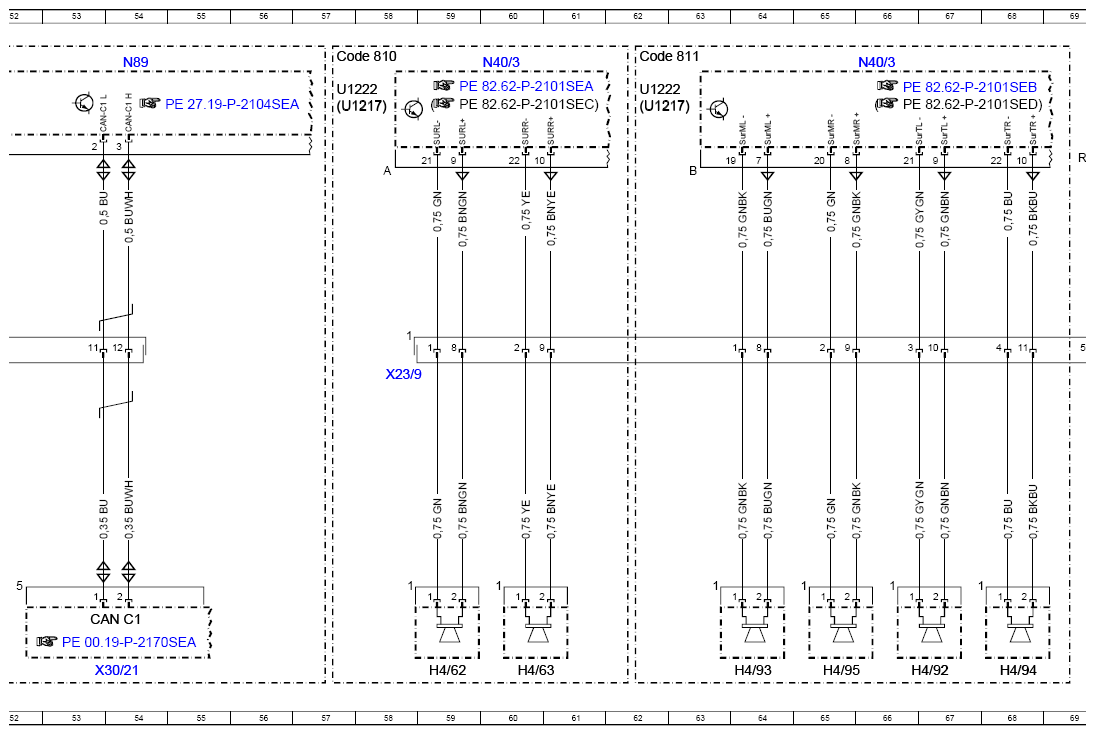

| N40/3 | Sound system amplifier control unit | 66A |
| N40/3 | Sound system amplifier control unit | 60A |
| N73 | Electronic ignition switch control unit | 12L |
| N73 | Electronic ignition switch control unit | 29L |
| N73 | Electronic ignition switch control unit | 50L |
| N89 | Transmission oil auxiliary oil pump control unit | 54A |
| U12 | Valid for left-hand drive vehicles | 50G |
| U1217 | Valid for model series 217 | 57B |
| U1217 | Valid for model series 217 | 62B |
| U1222 | Valid for model series 222 | 57B |
| U1222 | Valid for model series 222 | 62B |
| U13 | Valid for right-hand drive vehicles | 50G |
| U974 | Not valid for hybrid drive | 35A |
| W18 | Left front seat crossmember ground point | 50H |
| W19 | Right front seat crossmember ground point | 37H |
| W19 | Right front seat crossmember ground point | 50H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 11H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 28H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 48H |
| X18/7 | Vehicle interior and engine compartment electrical connector | 23H |
| X22/4 | Transmission/frame floor assembly connecting point | 2F |
| X22/4 | Transmission/frame floor assembly connecting point | 36F |
| X22/4 | Transmission/frame floor assembly connecting point | 18F |
| X23/9 | Rear shelf electrical connector | 58F |
| X234/1 | Refrigerant compressor electrical connector | 25H |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 15L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 33L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 54L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 41L |
| Y3/8 | Fully integrated transmission control control unit | 13A |
| Y3/8 | Fully integrated transmission control control unit | 31A |
| Y3/8 | Fully integrated transmission control control unit | 38A |
