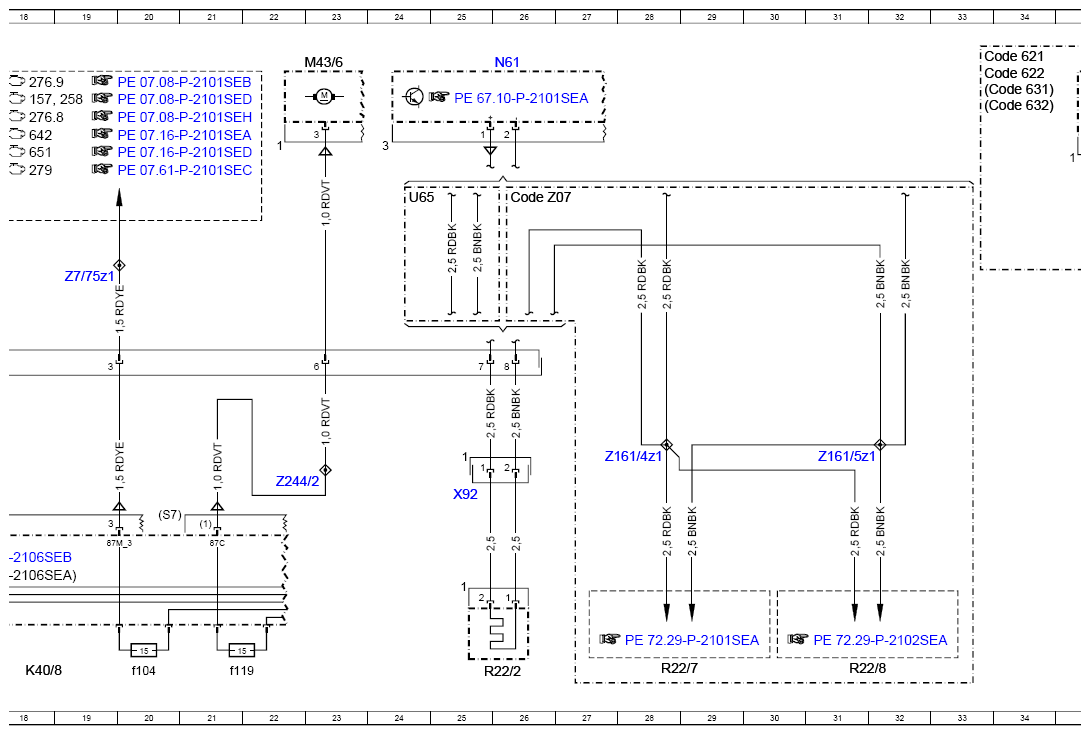

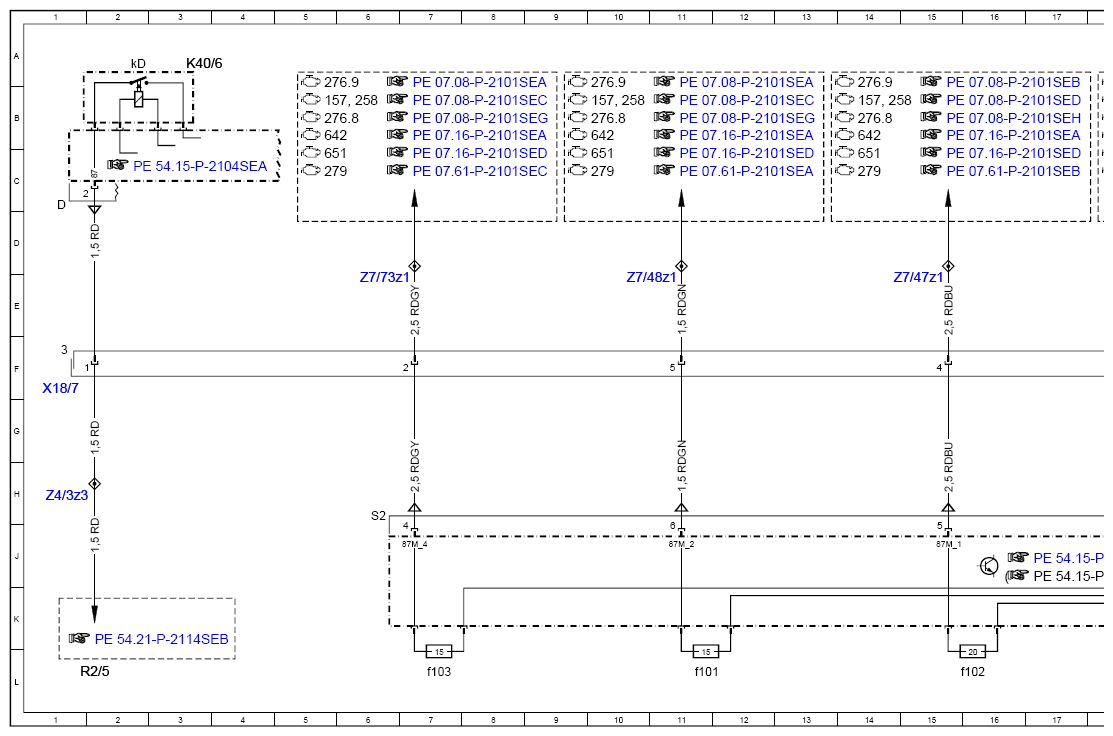

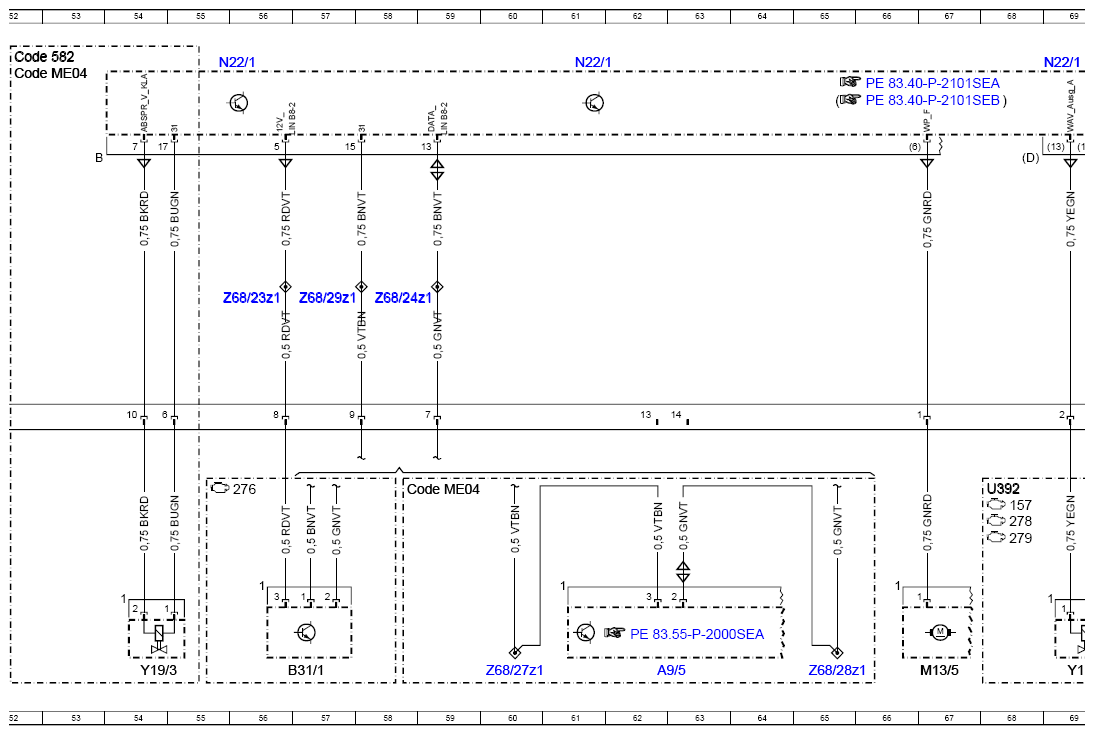

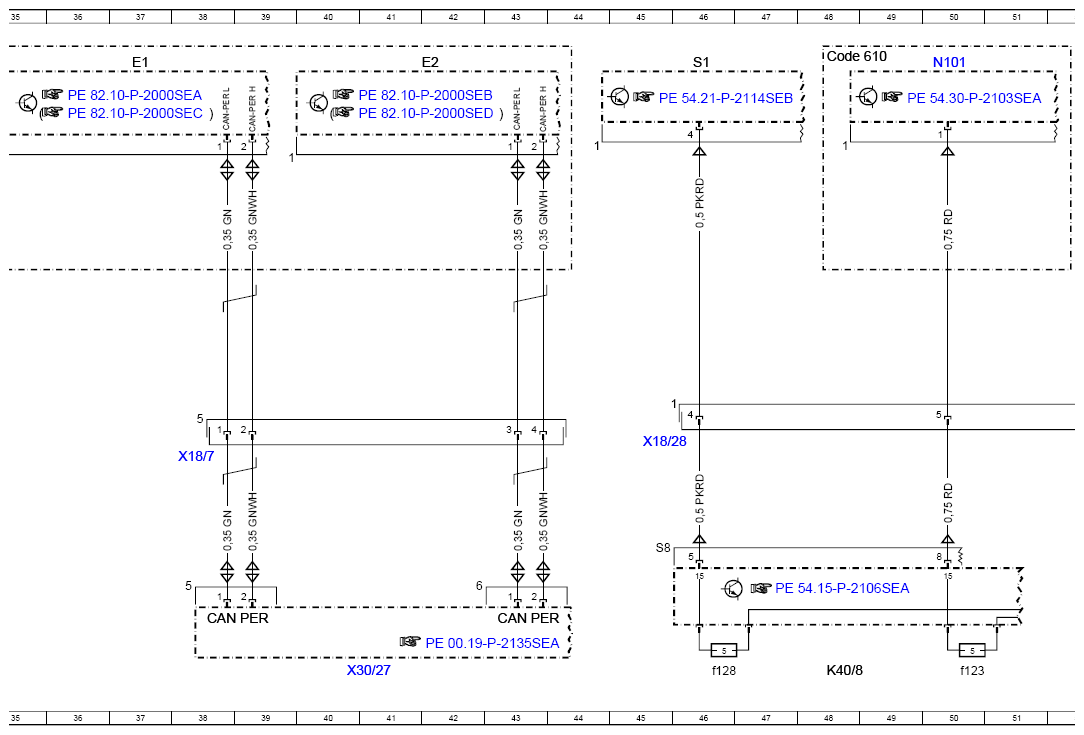

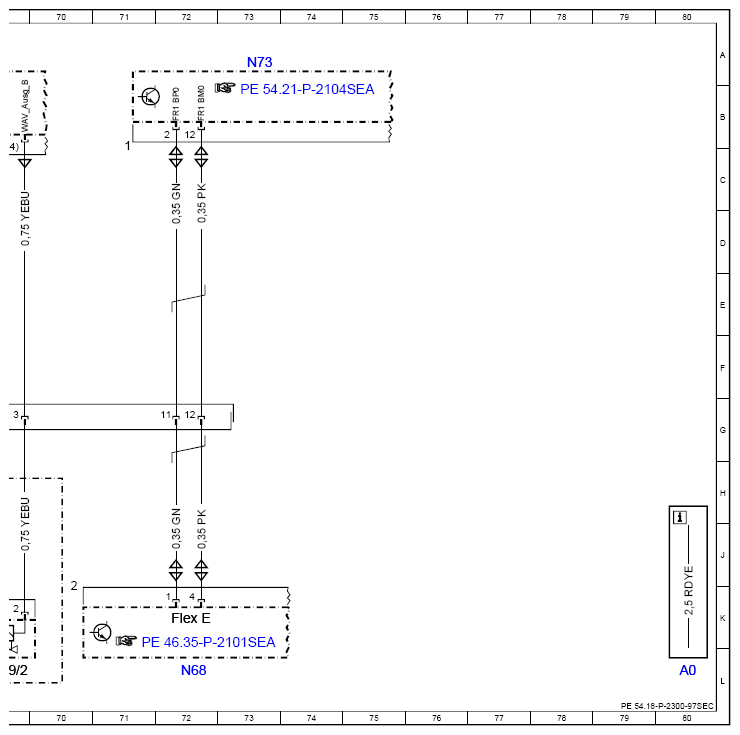

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEC
Model 217 up to model year 2018 X18/7(3), X18/7(5), X18/28(1)
Model 222 up to model year 2018 X18/7(3), X18/7(5), X18/28(1)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A9/5 | Electric refrigerant compressor | 62L |
| B31/1 | Multifunction sensor | 57L |
| CAN PER | Peripherals CAN | 38K |
| CAN PER | Peripherals CAN | 43K |
| Code 582 | Air conditioning in rear | 52A |
| Code 610 | Night View Assist | 48A |
| Code 621 | Intelligent Light System (left-hand traffic) | 33A |
| Code 622 | Intelligent Light System (right-hand traffic) | 33A |
| Code 631 | Static LED headlamp, left-hand traffic | 33B |
| Code 632 | Static LED headlamp, right-hand traffic | 33B |
| Code ME04 | Mild hybrid drive | 58H |
| Code ME04 | Mild hybrid drive | 52A |
| Code Z07 | Top protection | 26C |
| E1 | Left front lamp unit | 37A |
| E2 | Right front lamp unit | 42A |
| Flex E | Chassis FlexRay | 72K |
| K40/6 | Left fuse and relay module | 3A |
| K40/6kD | MAGIC VISION CONTROL relay | 2A |
| K40/8 | Engine fuse and relay module | 18L |
| K40/8 | Engine fuse and relay module | 48L |
| K40/8f101 | Fuse 101 | 11L |
| K40/8f102 | Fuse 102 | 16L |
| K40/8f103 | Fuse 103 | 7L |
| K40/8f104 | Fuse 104 | 20L |
| K40/8f119 | Fuse 119 | 21L |
| K40/8f123 | Fuse 123 | 50L |
| K40/8f128 | Fuse 128 | 46L |
| M13/5 | Coolant circulation pump | 67L |
| M43/6 | Low temperature circuit circulation pump 1 | 23A |
| N101 | Night View Assist control unit | 50A |
| N22/1 | Climate control control unit | 55A |
| N22/1 | Climate control control unit | 61A |
| N22/1 | Climate control control unit | 69A |
| N61 | Windshield heater control unit | 26A |
| N68 | Electrical power steering control unit | 72L |
| N73 | Electronic ignition switch control unit | 73A |
| R2/5 | Upper spray nozzle hose heater | 2L |
| R22/2 | Heated windshield | 26L |
| R22/7 | Left front heated side window | 28L |
| R22/8 | Right front heated side window | 31L |
| S1 | Exterior lights switch | 46A |
| U392 | Valid for gasoline engine 276 except gasoline engine 276.8 | 68H |
| U65 | Valid without code (Z07) Highest protection | 24C |
| X18/28 | Left cockpit/engine compartment electrical connector | 45G |
| X18/7 | Vehicle interior and engine compartment electrical connector | 1F |
| X18/7 | Vehicle interior and engine compartment electrical connector | 38H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 40L |
| X92 | Windshield heater electrical connector | 25H |
| Y19/2 | AC water valve | 69L |
| Y19/3 | Front evaporator shutoff valve | 54L |
| Z161/4z1 | Windshield heater connector sleeve (+) | 28G |
| Z161/5z1 | Windshield heater connector sleeve (-) | 31G |
| Z244/2 | Circuit 87/C2 connector sleeve | 22H |
| Z4/3z3 | Tml. 30 connector sleeve | 1H |
| Z68/23z1 | Connector sleeve, 12V climate control LIN 2 | 56E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 58E |
| Z68/27z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 60L |
| Z68/28z1 | Connector sleeve, data line for climate control LIN 2 | 65L |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 57E |
| Z7/47z1 | Circuit 87/2 connector sleeve | 15E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 11E |
| Z7/73z1 | Circuit 87M4 connector sleeve | 6E |
| Z7/75z1 | Circuit 87M3 connector sleeve | 19E |
