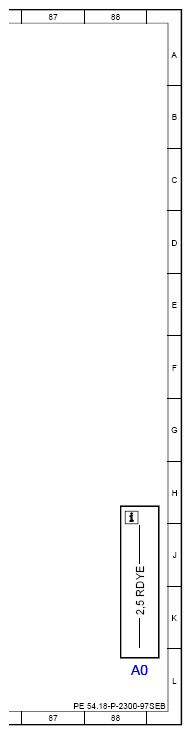

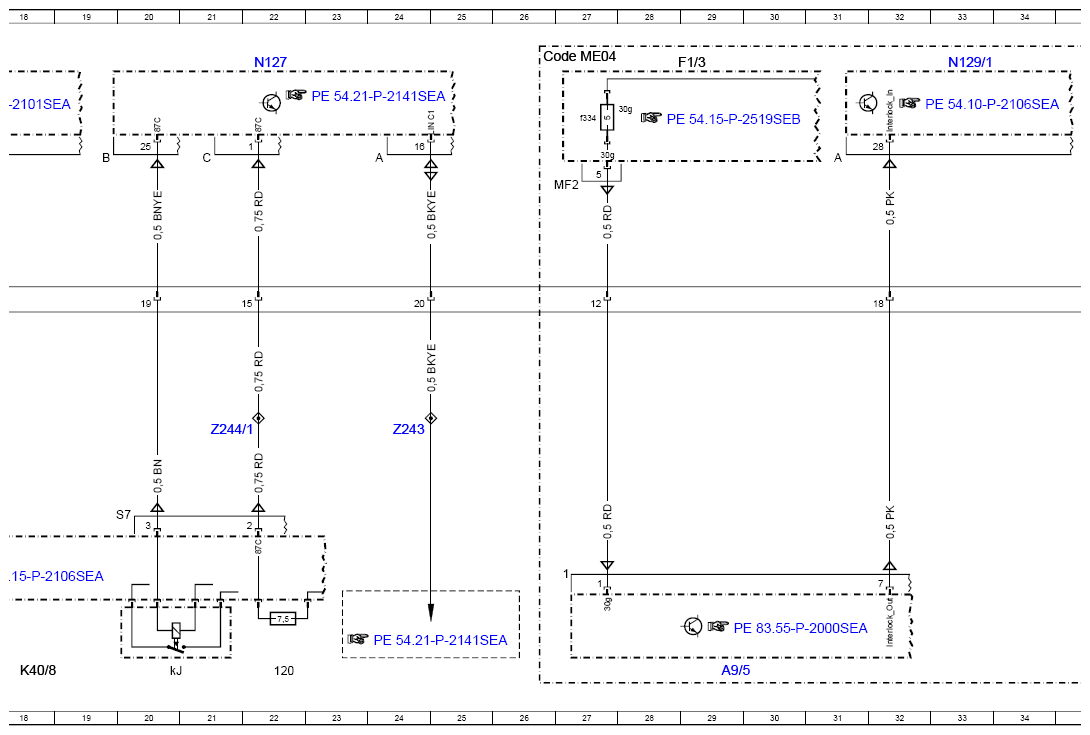

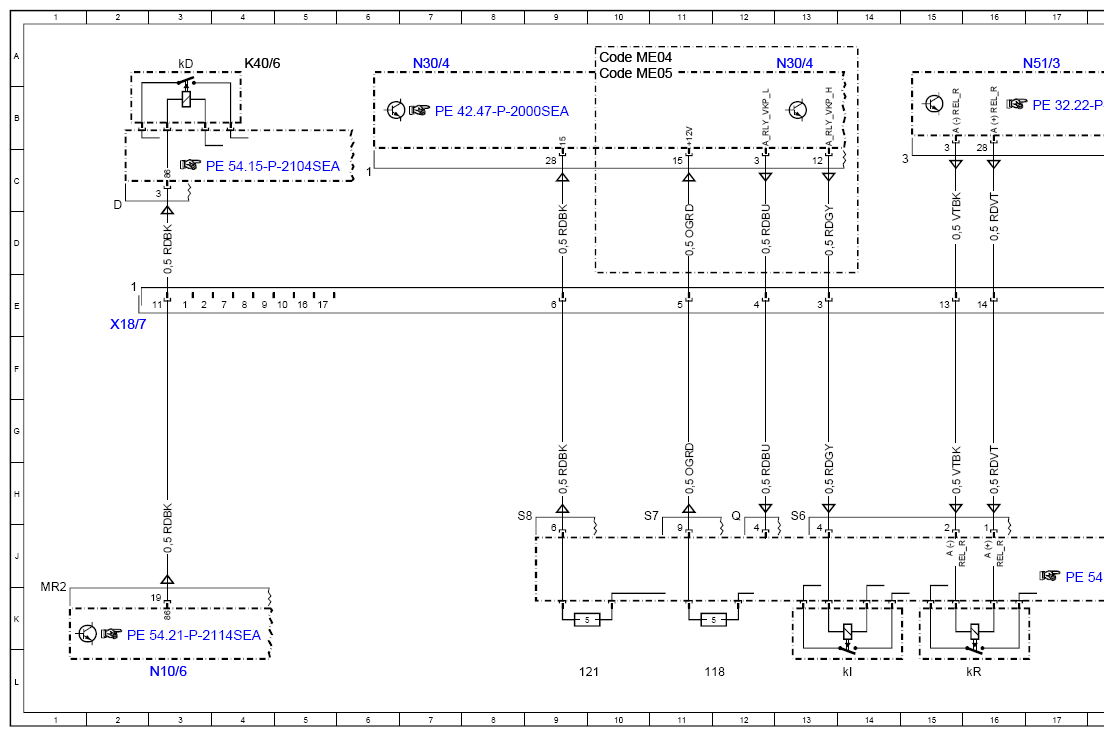

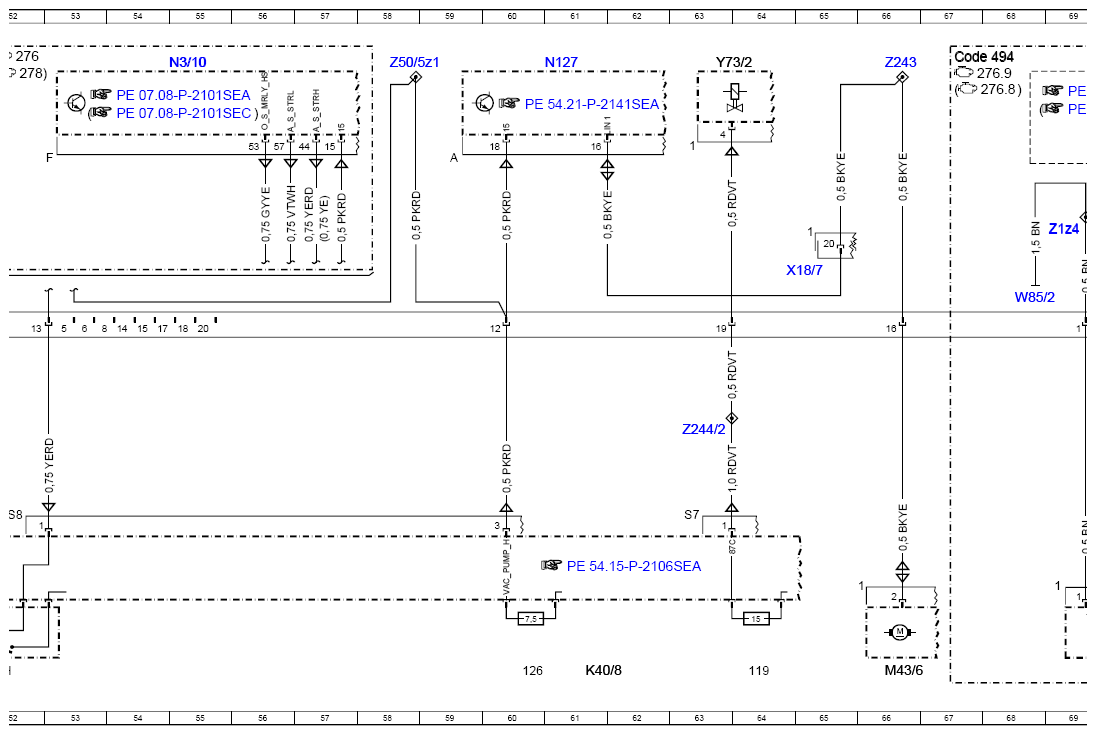

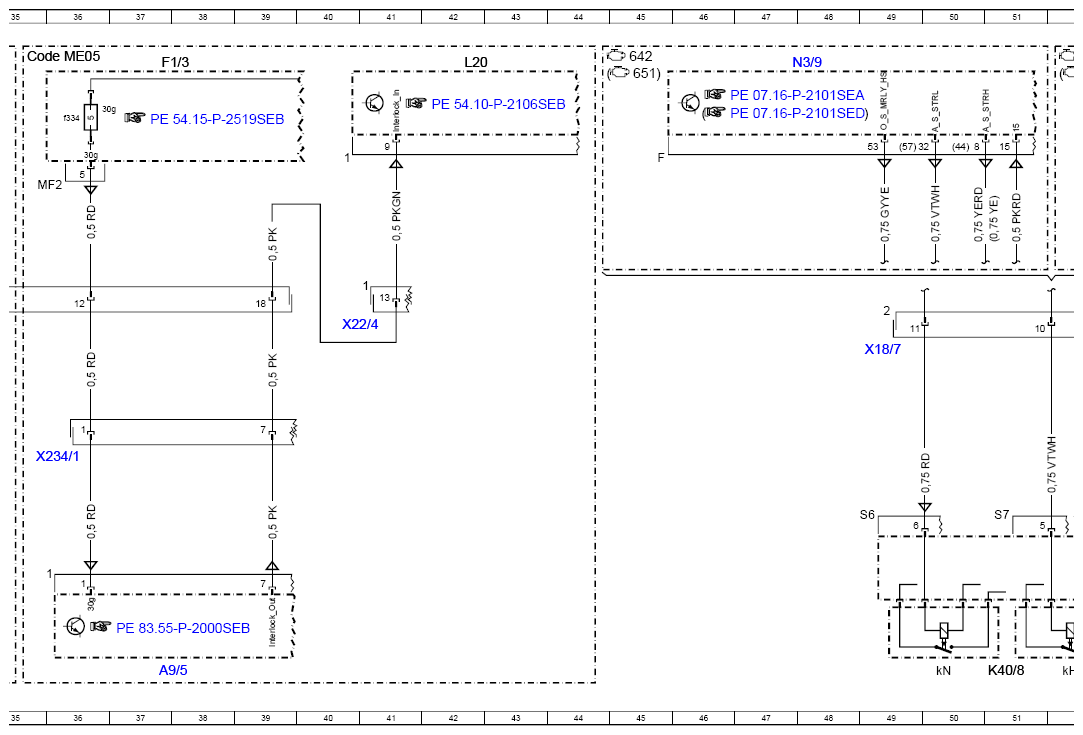

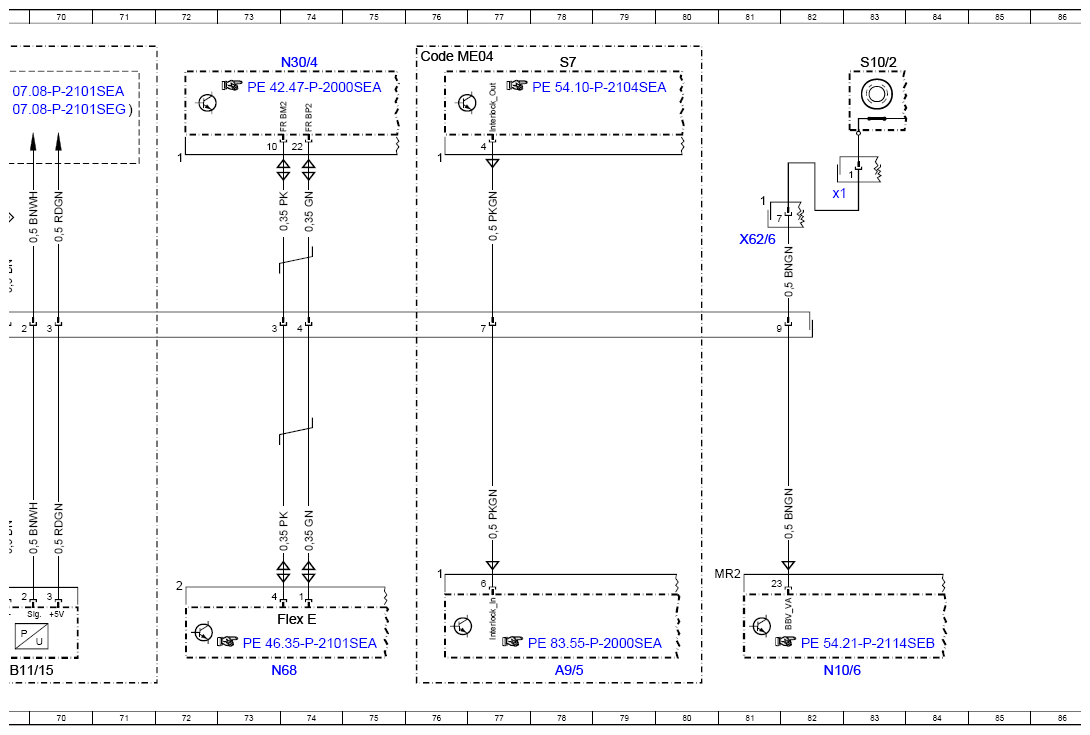

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEB
Model 217 up to model year 2018 X18/7(1), X18/7(2)
Model 222 up to model year 2018 X18/7(1), X18/7(2)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A9/5 | Electric refrigerant compressor | 29L |
| A9/5 | Electric refrigerant compressor | 37L |
| A9/5 | Electric refrigerant compressor | 78L |
| B11/15 | Radiator sensor for engine diagnosis | 69L |
| Code 494 | USA version | 67A |
| Code ME04 | Mild hybrid drive | 10A |
| Code ME04 | Mild hybrid drive | 26A |
| Code ME04 | Mild hybrid drive | 76A |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 10A |
| Code ME05 | Hybrid drive 85kW/90kW variant (incl. plug-in) | 35A |
| F1/3 | Right A-pillar fuse box | 29A |
| F1/3 | Right A-pillar fuse box | 37A |
| F1/3f334 | Fuse 334 | 27B |
| F1/3f334 | Fuse 334 | 36B |
| Flex E | Chassis FlexRay | 74K |
| K40/6 | Left fuse and relay module | 4A |
| K40/6kD | MAGIC VISION CONTROL relay | 3A |
| K40/8 | Engine fuse and relay module | 18L |
| K40/8 | Engine fuse and relay module | 51L |
| K40/8 | Engine fuse and relay module | 61L |
| K40/8f118 | Fuse 118 | 11L |
| K40/8f119 | Fuse 119 | 64L |
| K40/8f120 | Fuse 120 | 22L |
| K40/8f121 | Fuse 121 | 9L |
| K40/8f126 | Fuse 126 | 60L |
| K40/8kH | Starter circuit 50 relay | 52L |
| K40/8kI | Brake vacuum pump relay | 14L |
| K40/8kJ | HYBRID relay | 20L |
| K40/8kN | Circuit 87M relay | 50L |
| K40/8kR | AIRMATIC relay | 16L |
| L20 | Electric machine rotor position sensor | 42A |
| M43/6 | Low temperature circuit circulation pump 1 | 66L |
| N10/6 | Front SAM control unit | 3L |
| N10/6 | Front SAM control unit | 82L |
| N127 | Drivetrain control unit | 22A |
| N127 | Drivetrain control unit | 61A |
| N129/1 | Power electronics control unit | 33A |
| N3/10 | ME-SFI [ME] control unit | 55A |
| N3/9 | CDI control unit | 48A |
| N30/4 | Electronic Stability Program control unit | 7A |
| N30/4 | Electronic Stability Program control unit | 13A |
| N30/4 | Electronic Stability Program control unit | 74A |
| N51/3 | AIRMATIC control unit | 17A |
| N68 | Electrical power steering control unit | 73L |
| S10/2 | Right front brake wear sensor | 83A |
| S10/2x1 | Right front brake wear sensor electrical connector | 82C |
| S7 | High-voltage disconnect device | 78A |
| W85/2 | Front passenger footwell frame floor assembly ground point | 68E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 2E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 49F |
| X18/7 | Vehicle interior and engine compartment electrical connector | 65E |
| X22/4 | Transmission/frame floor assembly connecting point | 41E |
| X234/1 | Refrigerant compressor electrical connector | 36H |
| X62/6 | Front axle electrical connector, right distributor | 81D |
| Y73/2 | Low-temperature circuit switchover valve 2 | 63A |
| Z1z4 | Circuit 31 connector sleeve | 69D |
| Z243 | Drivetrain LIN connector sleeve | 24G |
| Z243 | Drivetrain LIN connector sleeve | 66A |
| Z244/1 | Connector sleeve, circuit 87/C1 | 21G |
| Z244/2 | Circuit 87/C2 connector sleeve | 63G |
| Z50/5z1 | Tml. 15 connector sleeve | 58A |
