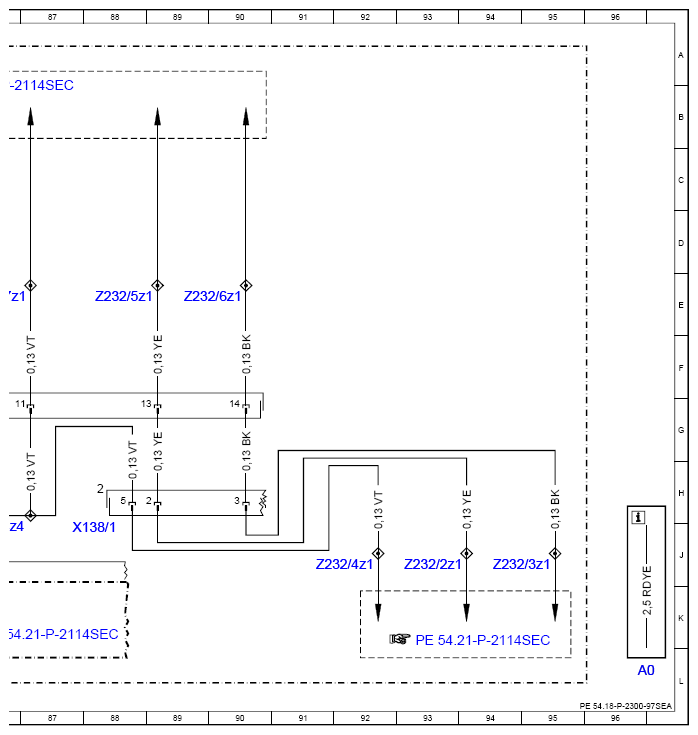

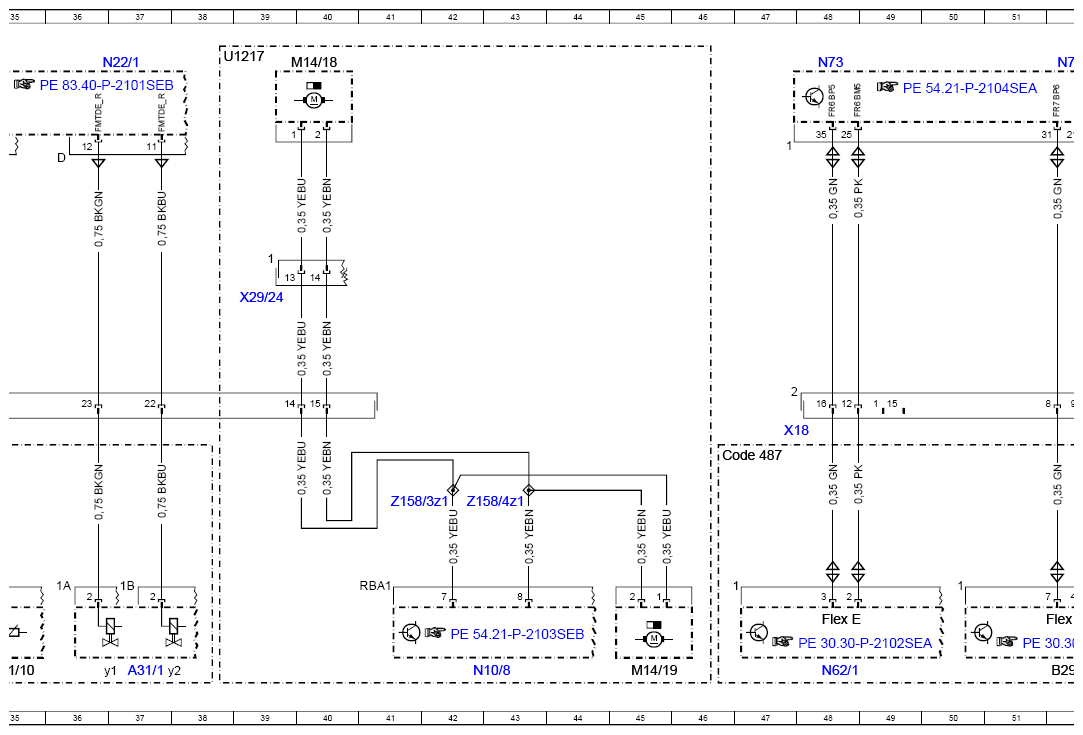

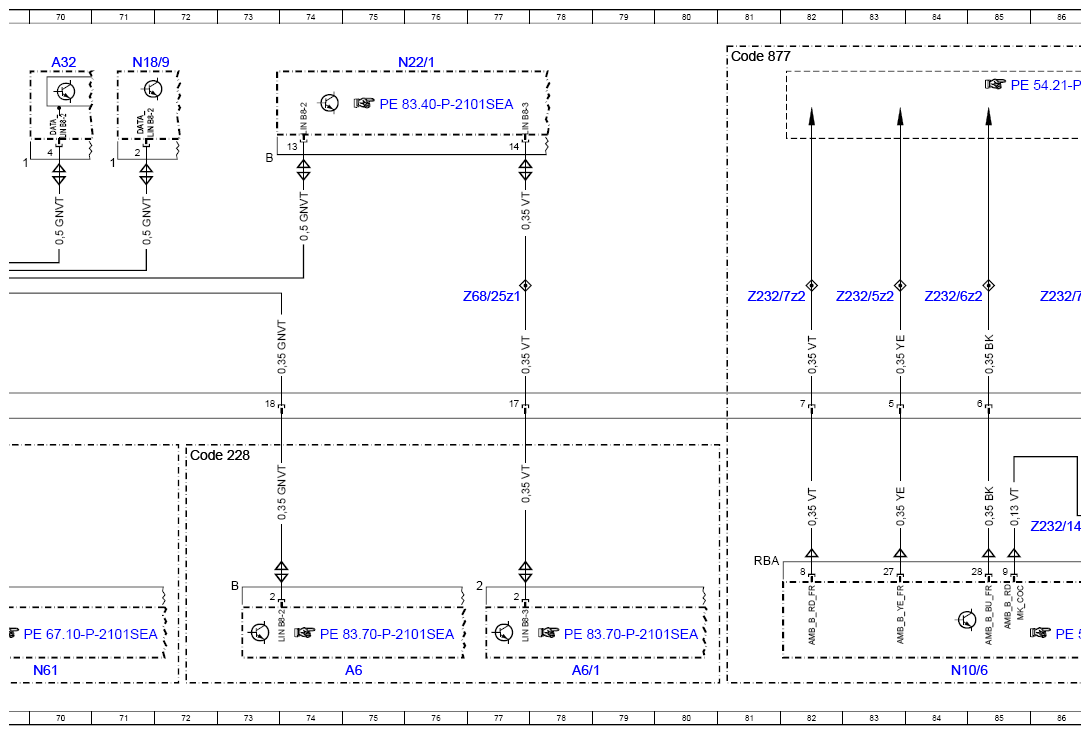

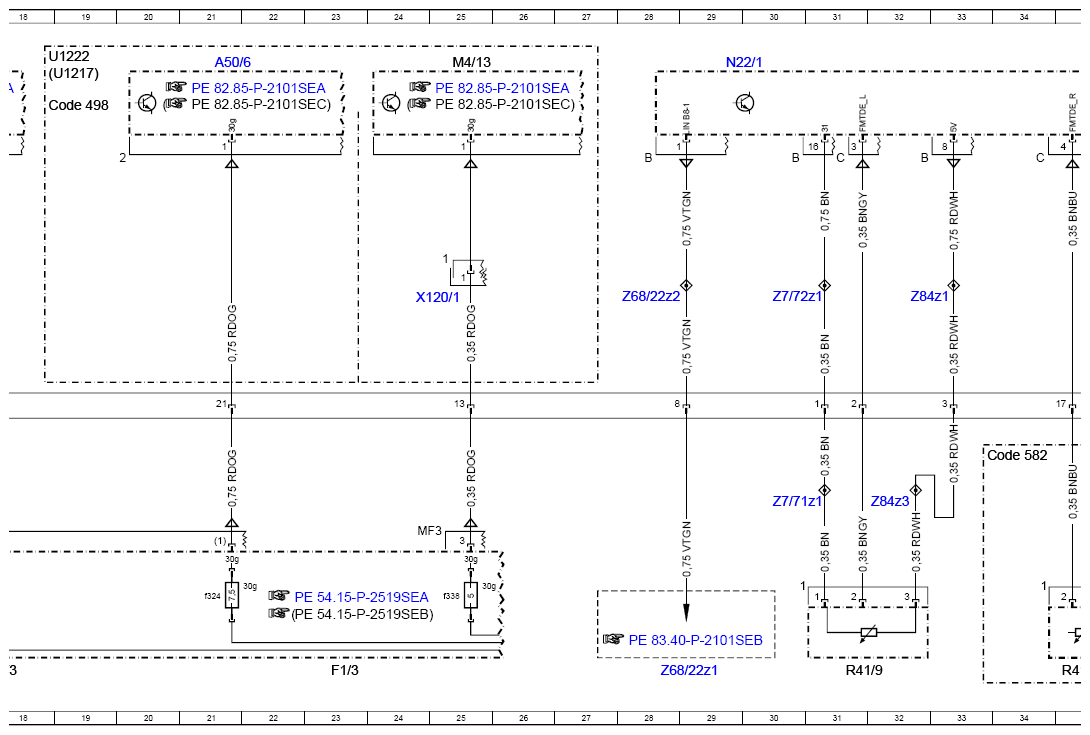

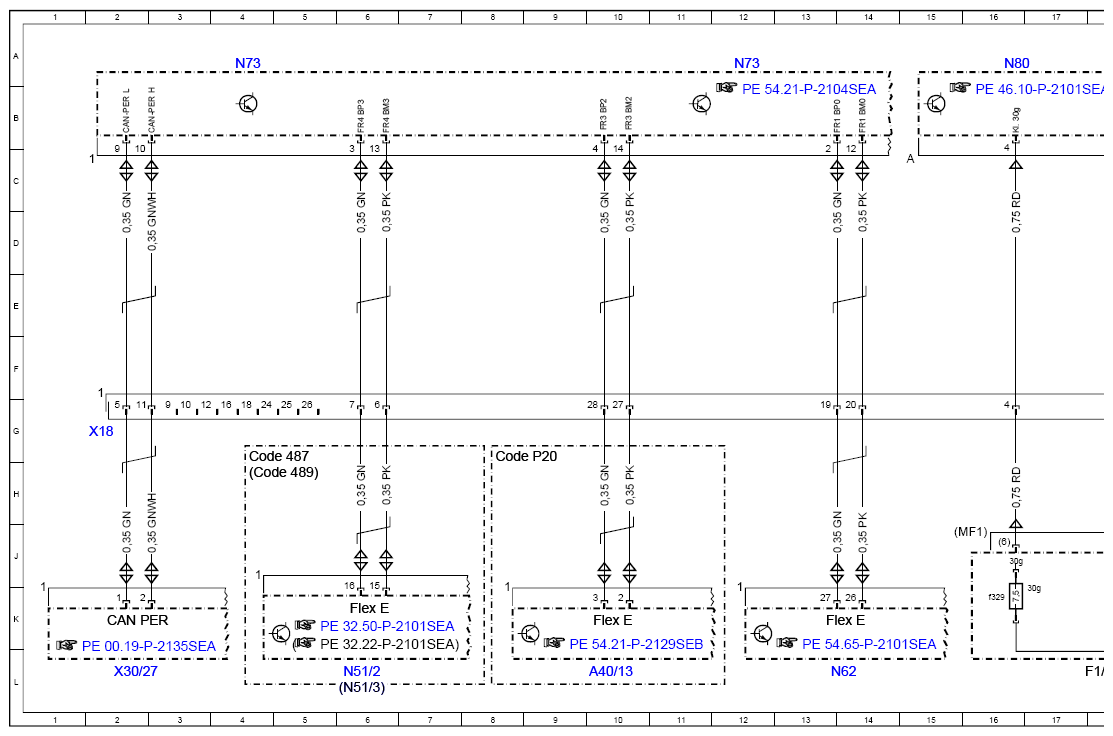

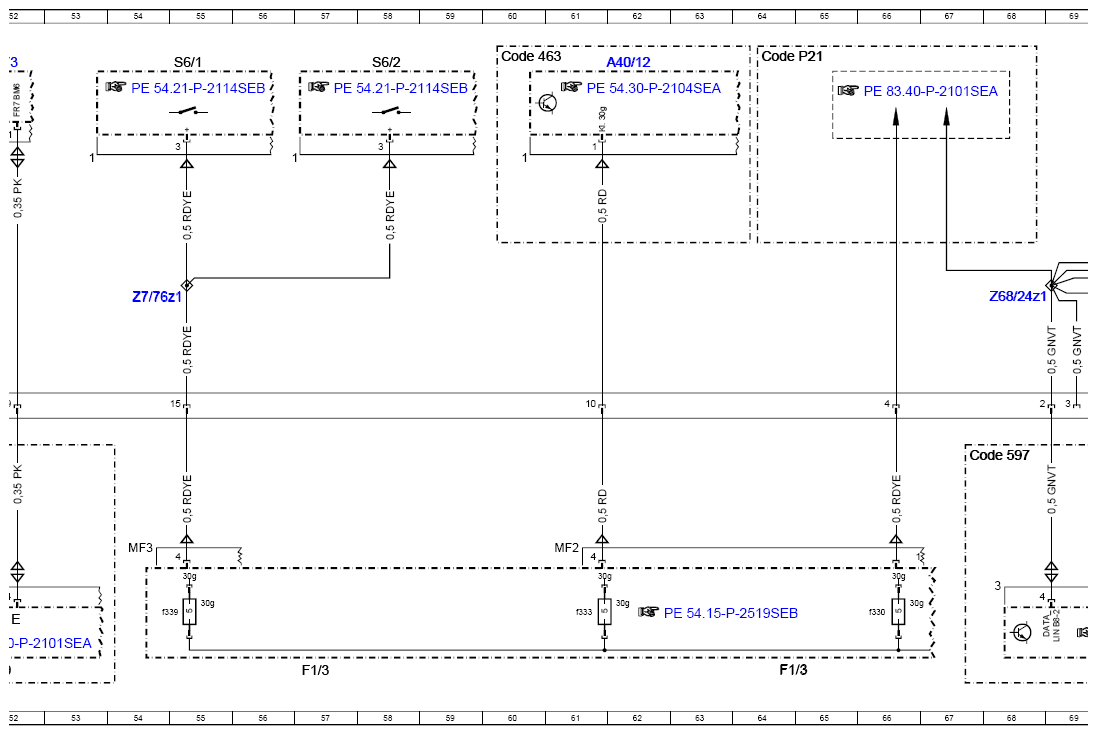

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97SEA
Model 217 up to model year 2018 X18(1), X18(2)
Model 222 up to model year 2018 X18(1), X18(2)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A31/1 | Rear heating system valve unit | 37L |
| A31/1y1 | Left duovalve | 36L |
| A31/1y2 | Right duovalve | 37L |
| A32 | AC housing | 70A |
| A40/12 | Head-up display | 62A |
| A40/13 | Stereo multifunction camera | 10L |
| A50/6 | Dedicated Short-Range Communications control unit | 21A |
| A6 | Stationary heater unit | 75L |
| A6/1 | Stationary heater radio remote control receiver | 78L |
| B29 | Front long-range radar sensor | 52L |
| CAN PER | Peripherals CAN | 2K |
| Code 228 | Stationary heater | 72G |
| Code 463 | Head-up display | 60A |
| Code 487 | MAGIC BODY CONTROL | 4G |
| Code 487 | MAGIC BODY CONTROL | 46G |
| Code 489 | AIRMATIC | 4H |
| Code 498 | Japan version | 18B |
| Code 582 | Air conditioning in rear | 33G |
| Code 597 | Heated windshield | 67G |
| Code 877 | Ambiance illumination | 81A |
| Code P20 | Driver assistance package | 8G |
| Code P21 | AIR-BALANCE package | 64A |
| F1/3 | Right A-pillar fuse box | 18L |
| F1/3 | Right A-pillar fuse box | 57L |
| F1/3 | Right A-pillar fuse box | 64L |
| F1/3 | Right A-pillar fuse box | 23L |
| F1/3f324 | Fuse 324 | 21K |
| F1/3f329 | Electrical fuse 329 | 16K |
| F1/3f330 | Fuse 330 | 66K |
| F1/3f333 | Fuse 333 | 61K |
| F1/3f338 | Fuse 338 | 25K |
| F1/3f339 | Fuse 339 | 54K |
| Flex E | Chassis FlexRay | 6K |
| Flex E | Chassis FlexRay | 10K |
| Flex E | Chassis FlexRay | 13K |
| Flex E | Chassis FlexRay | 48K |
| Flex E | Chassis FlexRay | 52K |
| M14/18 | Glove compartment central locking actuator motor | 40A |
| M14/19 | Stowage compartment central locking actuator motor | 45L |
| M4/13 | COMAND fan motor | 25A |
| N10/6 | Front SAM control unit | 84L |
| N10/8 | Rear SAM control unit | 42L |
| N18/9 | Driver side air vent ionizer | 71A |
| N22/1 | Climate control control unit | 29A |
| N22/1 | Climate control control unit | 37A |
| N22/1 | Climate control control unit | 76A |
| N51/2 | Active Body Control control unit | 6L |
| N51/3 | AIRMATIC control unit | 6L |
| N61 | Windshield heater control unit | 70L |
| N62 | Parking system control unit | 14L |
| N62/1 | Radar sensors control unit | 48L |
| N73 | Electronic ignition switch control unit | 4A |
| N73 | Electronic ignition switch control unit | 12A |
| N73 | Electronic ignition switch control unit | 48A |
| N73 | Electronic ignition switch control unit | 52A |
| N80 | Steering column module control unit | 16A |
| R41/10 | Right rear center air vent potentiometer | 35L |
| R41/9 | Left rear center air vent potentiometer | 31L |
| S6/1 | Driver-side instrument panel button group | 55A |
| S6/2 | Center instrument panel button group | 58A |
| U1217 | Valid for model series 217 | 18A |
| U1217 | Valid for model series 217 | 38A |
| U1222 | Valid for model series 222 | 18A |
| X120/1 | External fan electrical connector, Audio/COMAND display | 25E |
| X138/1 | Front center console electrical connector | 88J |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 48G |
| X29/24 | Cockpit glove compartment electrical connector | 39E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 2L |
| Z158/3z1 | Connector sleeve 1 for glove compartment/stowage compartment central locking motors | 41H |
| Z158/4z1 | Connector sleeve 2 for glove compartment/stowage compartment central locking motors | 43H |
| Z232/14z4 | LED K3 ambiance illumination connector sleeve (red) | 86J |
| Z232/2z1 | Center console ambiance illumination connector sleeve (yellow) | 93J |
| Z232/3z1 | Center console ambiance illumination connector sleeve (blue) | 94J |
| Z232/4z1 | Center console ambiance illumination connector sleeve (red) | 92J |
| Z232/5z1 | Cockpit ambiance illumination connector sleeve (yellow) | 88E |
| Z232/5z2 | Cockpit ambiance illumination connector sleeve (yellow) | 83E |
| Z232/6z1 | Cockpit ambiance illumination connector sleeve (blue) | 90E |
| Z232/6z2 | Cockpit ambiance illumination connector sleeve (blue) | 84E |
| Z232/7z1 | Cockpit ambiance illumination connector sleeve (red) | 86E |
| Z232/7z2 | Cockpit ambiance illumination connector sleeve (red) | 81E |
| Z68/22z1 | Connector sleeve, 12V climate control LIN 1 | 28L |
| Z68/22z2 | Connector sleeve, 12V climate control LIN 1 | 28E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 68E |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 77E |
| Z7/71z1 | Ground connection connector sleeve | 30H |
| Z7/72z1 | Sensor ground connector sleeve | 30E |
| Z7/76z1 | Cockpit circuit 30G connector sleeve | 54E |
| Z84z1 | Connector sleeve 5 V climate control potentiometer, left and right side air vent | 32E |
| Z84z3 | Connector sleeve 5 V climate control potentiometer, left and right side air vent | 32H |
