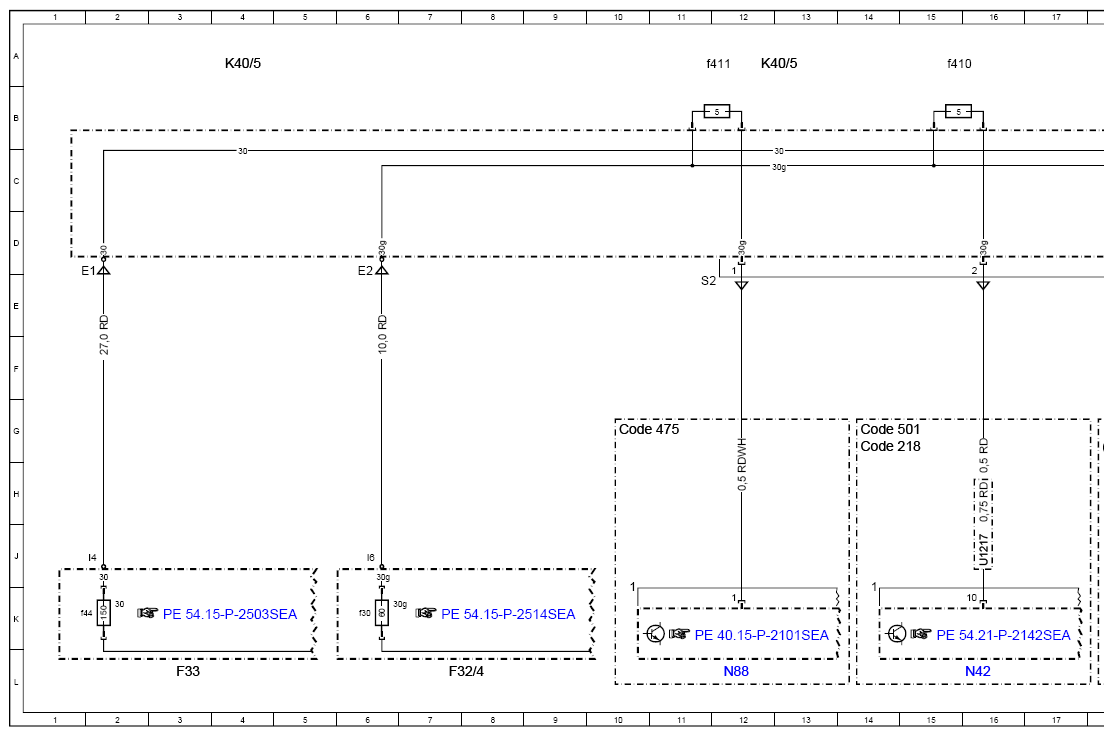

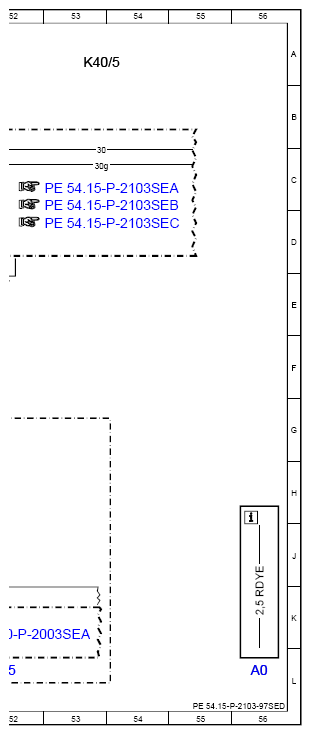

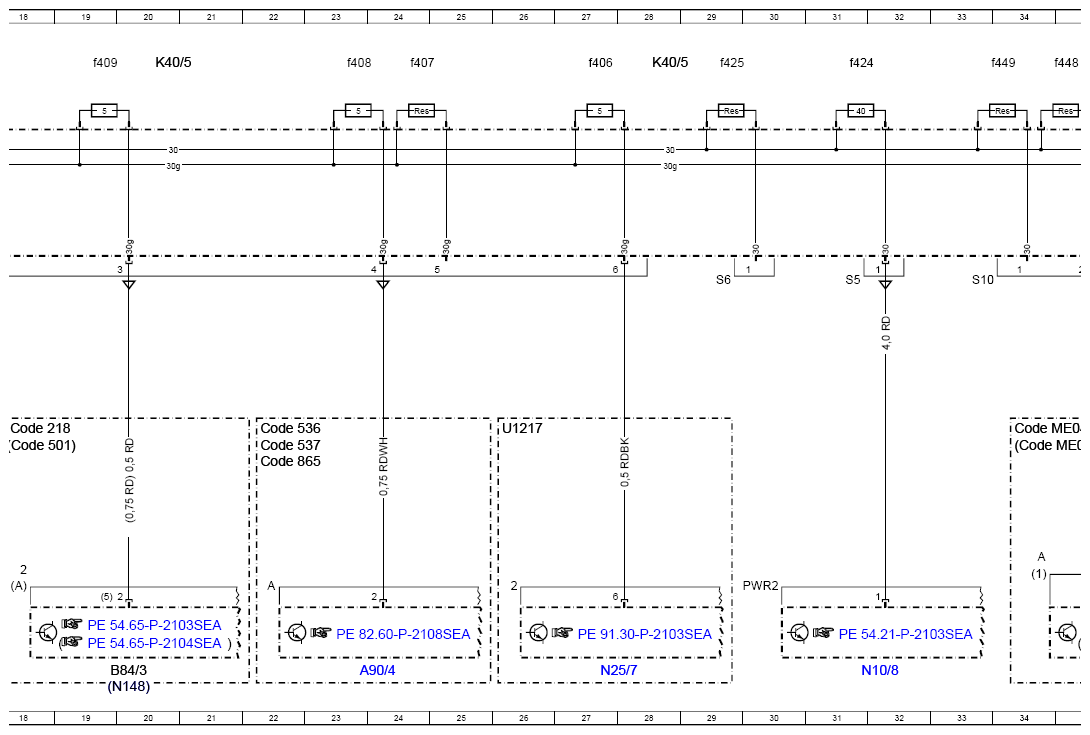

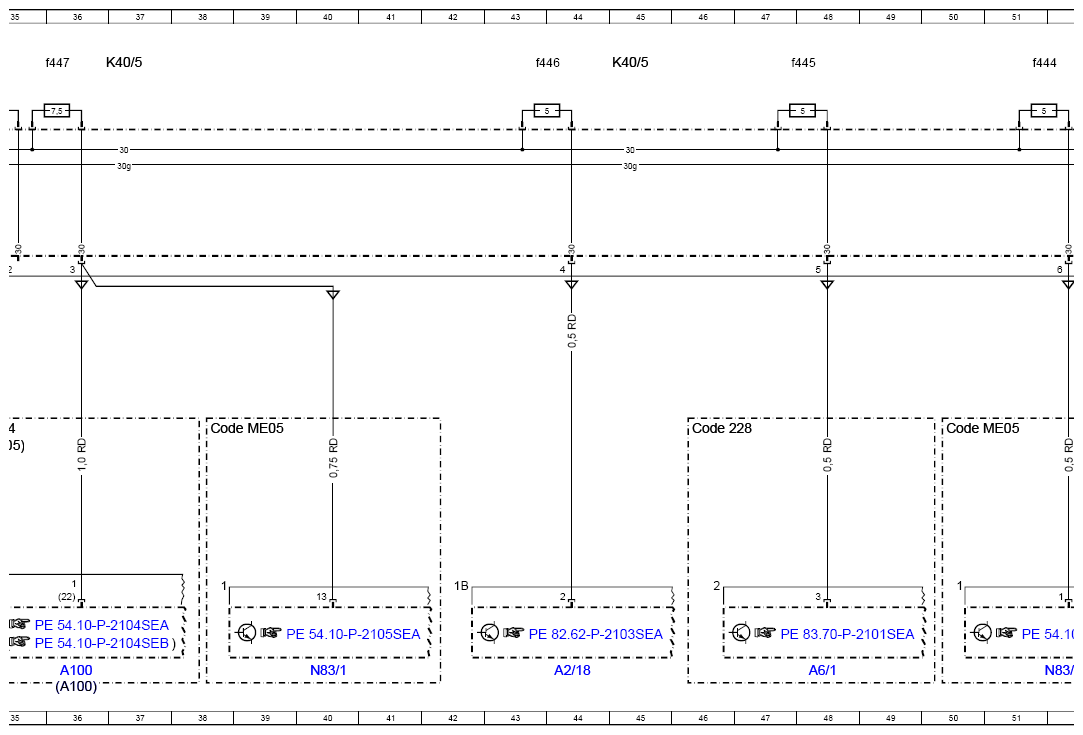

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97SED
Model 217 up to model year 2018
Fuse and relay module K40/5, Sheet 4
Model 222 up to model year 2018
Fuse and relay module K40/5, Sheet 4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A100 | High-voltage battery module | 36L |
| A100 | High-voltage battery module | 36L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 44L |
| A6/1 | Stationary heater radio remote control receiver | 48L |
| A90/4 | Tuner unit | 24L |
| B84/3 | Backup camera | 20L |
| Code 218 | Backup camera | 14G |
| Code 218 | Backup camera | 18G |
| Code 228 | Stationary heater | 46G |
| Code 475 | Tire pressure monitor | 10G |
| Code 501 | 360 degree camera | 14G |
| Code 501 | 360 degree camera | 18G |
| Code 536 | SIRIUS satellite radio | 22G |
| Code 537 | Digital radio | 22G |
| Code 865 | TV tuner | 22H |
| Code ME04 | Mild hybrid drive | 34G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 34G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 38G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 50G |
| F32/4 | Vehicle interior prefuse box | 7L |
| F32/4f30 | Fuse 30 | 6K |
| F33 | Rear prefuse box | 3L |
| F33f44 | Fuse 44 | 1K |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 37A |
| K40/5 | Rear fuse and relay module | 45A |
| K40/5 | Rear fuse and relay module | 53A |
| K40/5f406 | Fuse 406 | 27A |
| K40/5f407 | Fuse 407 | 24A |
| K40/5f408 | Fuse 408 | 23A |
| K40/5f409 | Fuse 409 | 19A |
| K40/5f410 | Fuse 410 | 15A |
| K40/5f411 | Fuse 411 | 11A |
| K40/5f424 | Fuse 424 | 31A |
| K40/5f425 | Fuse 425 | 29A |
| K40/5f444 | Fuse 444 | 51A |
| K40/5f445 | Fuse 445 | 47A |
| K40/5f446 | Fuse 446 | 43A |
| K40/5f447 | Fuse 447 | 36A |
| K40/5f448 | Fuse 448 | 35A |
| K40/5f449 | Fuse 449 | 34A |
| N10/8 | Rear SAM control unit | 32L |
| N148 | 360° camera control unit | 20L |
| N25/7 | AIRSCARF control unit | 27L |
| N42 | Camera cover control unit | 16L |
| N83/1 | DC/DC converter control unit | 40L |
| N83/5 | Charger | 52L |
| N88 | Tire pressure monitor control unit | 12L |
| U1217 | Valid for model series 217 | 16J |
| U1217 | Valid for model series 217 | 26G |
