Remove/Install Fanfare Horns - AR54.35-P-1555LC

Model 217

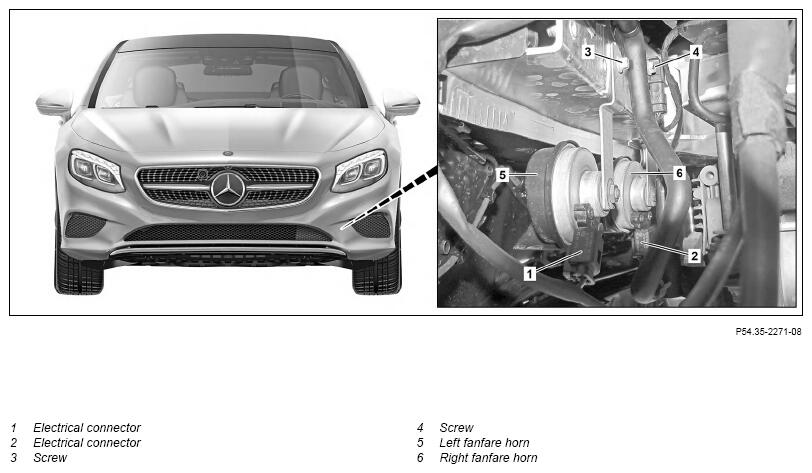

Fig 1: Fanfare Horns Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front engine compartment paneling		AR61.20-P-1105LF
2	Move wheel to appropriate steering angle and detach fender liner in front area	Model 217 with code 487 (Active Body Control (ABC))	AR88.10-P-1300LF
3	Detach electrical connection (1) or electrical connection (2)
4	Remove bolt (3) or bolt (4) and remove left horn (5) or right horn (6)	Bolt, horn to crossmember	*BA54.35-P-1001-01F
5	Install in the reverse order

SIGNALING SYSTEM

Number	Designation		Model 217
BA54.35-P-1001-01F	Bolt, horn to crossmember	Nm	8
