Remove/Install Park Pawl Capacitor - AR54.10-P-1126LCA
Model 217.4
| Remove/install | |||
| 1 | Remove front luggage compartment lining | AR68.30-P-4602LCA | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| 2 | Remove body panel between the rear wheel wells | AR63.10-P-0661-05LCA | |
| *BA64.10-P-1002-01C | |||

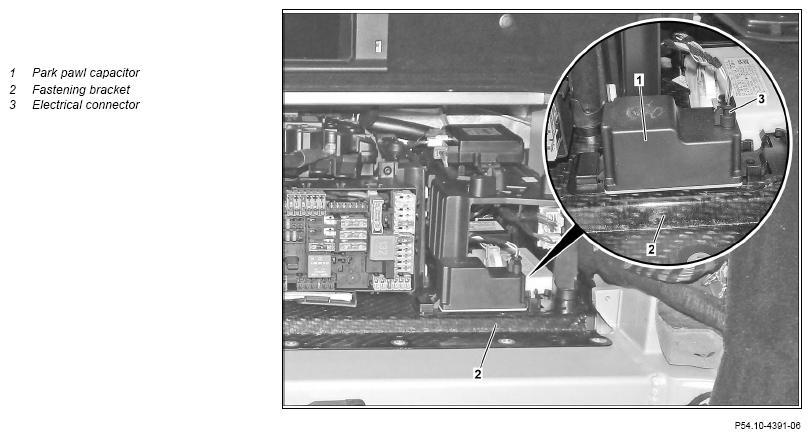

| 3 | Unclip park pawl capacitor (1) from mounting bracket (2) | ||
| 4 | Unlock and disconnect electrical connection (3), and remove park pawl capacitor (1) | ||
| 5 | Install in the reverse order |
REAR PANEL
| Number | Designation | Model 217 | ||
|---|---|---|---|---|
| BA64.10-P-1002-01C | Bolt, partition wall for trunk to body | M6 | Nm | 12 |
