Wiring Diagram Interior Illumination - PE82.20-P-2000-97SEG

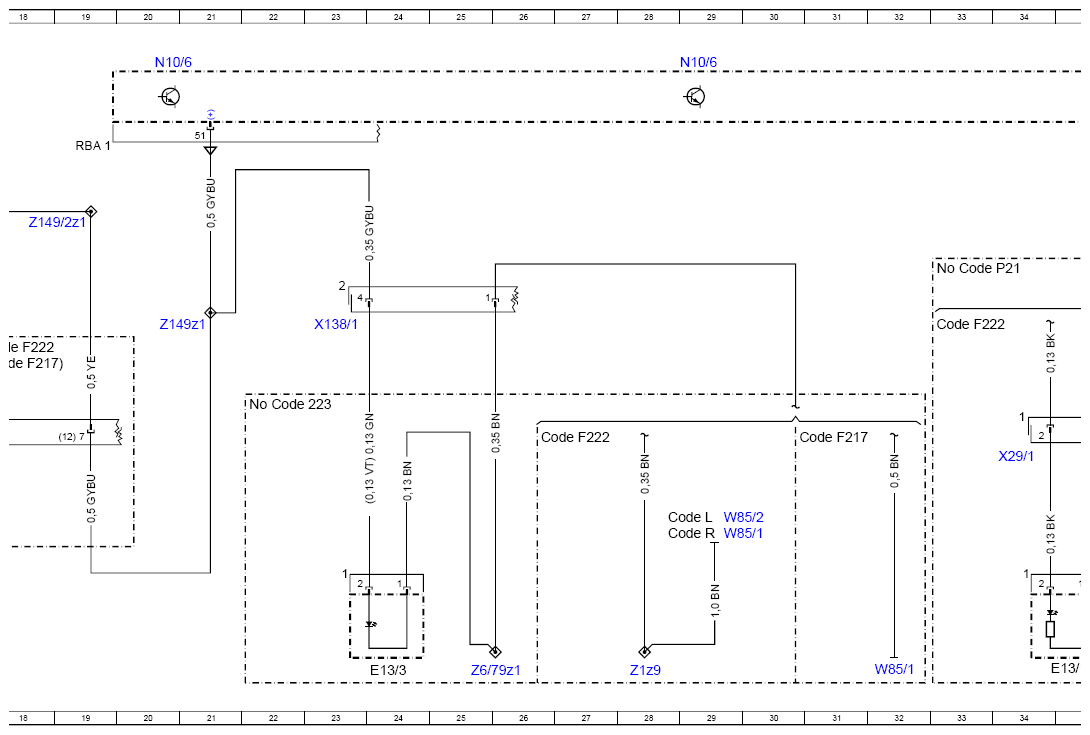

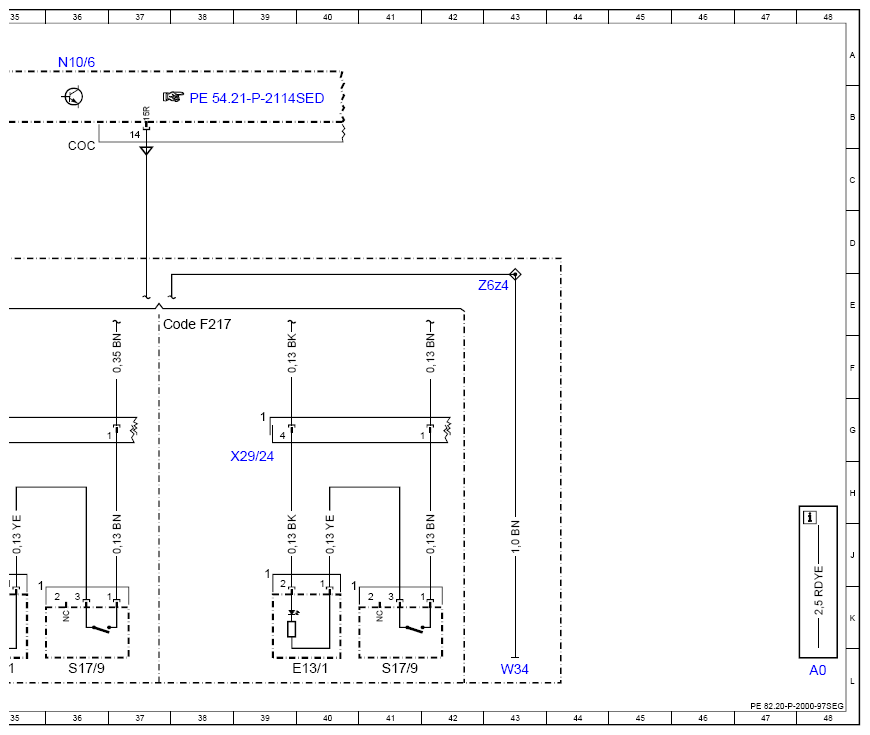

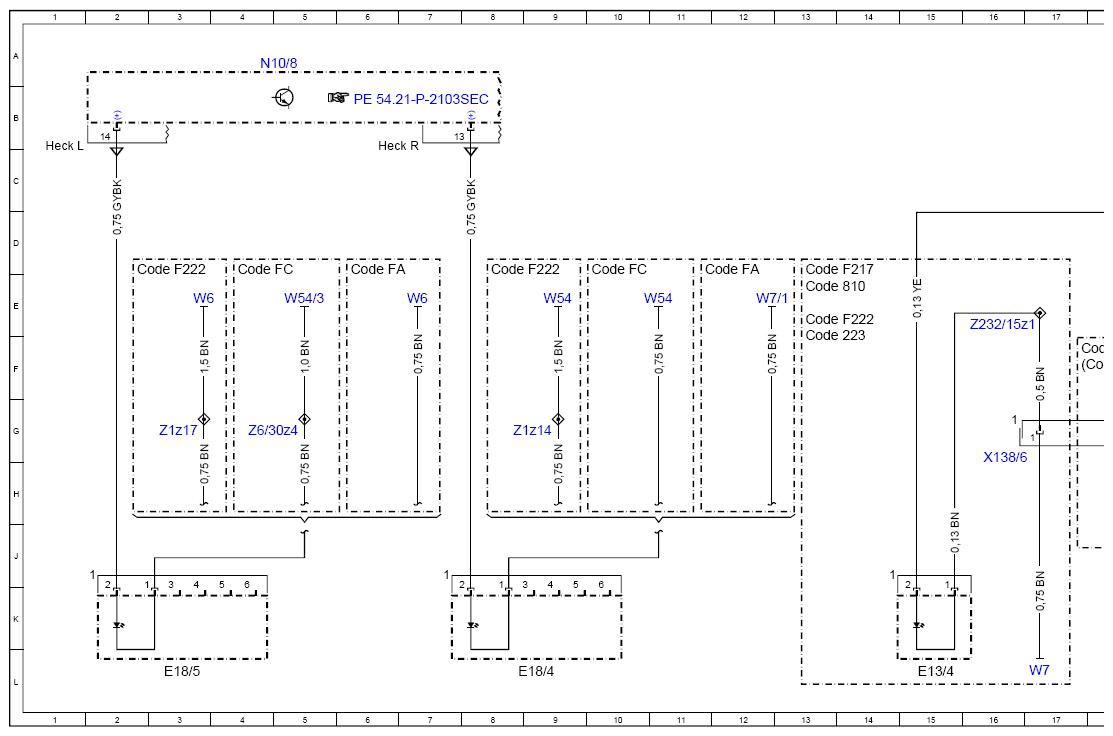

Model 217, 222 as of model year 2018 Trunk lamps E18/4 and E18/5, stowage compartment lamps E13/3 and E13/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 13F |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 22G |
| Code 810 | Sound system | 13E |
| Code F217 | MODEL SERIES 217 | 13E |
| Code F217 | MODEL SERIES 217 | 17F |
| Code F217 | MODEL SERIES 217 | 30G |
| Code F217 | MODEL SERIES 217 | 37E |
| Code F222 | MODEL SERIES 222 | 2E |
| Code F222 | MODEL SERIES 222 | 8E |
| Code F222 | MODEL SERIES 222 | 13E |
| Code F222 | MODEL SERIES 222 | 17F |
| Code F222 | MODEL SERIES 222 | 26G |
| Code F222 | MODEL SERIES 222 | 33E |
| Code FA | CABRIOLET | 6E |
| Code FA | CABRIOLET | 11E |
| Code FC | COUPE | 4E |
| Code FC | COUPE | 10E |
| Code L | LEFT-HAND DRIVE | 28H |
| Code P21 | AIR-BALANCE package | 33D |
| Code R | RIGHT-HAND DRIVE | 28J |
| E13/1 | Glove box lamp | 35L |
| E13/1 | Glove box lamp | 40L |
| E13/3 | Stowage compartment illumination | 24L |
| E13/4 | Rear center console stowage compartment ambiance illumination | 15L |
| E18/4 | Right luggage compartment lamp | 9L |
| E18/5 | Left luggage compartment lamp | 3L |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 29A |
| N10/8 | Rear SAM control unit | 4A |
| S17/9 | Glove box lamp switch | 36L |
| S17/9 | Glove box lamp switch | 41L |
| W34 | Left footwell ground point | 43L |
| W54 | Right rear wheel well ground point | 9E |
| W54 | Right rear wheel well ground point | 11E |
| W54/3 | Left rear wheel well ground point | 5E |
| W6 | Left wheel arch trunk ground point | 3E |
| W6 | Left wheel arch trunk ground point | 7E |
| W7 | Right wheel house trunk ground point | 17L |
| W7/1 | Right tail lamp trunk ground point | 12E |
| W85/1 | Driver footwell frame floor assembly ground point | 32L |
| W85/1 | Driver footwell frame floor assembly ground point | 29J |
| W85/2 | Front passenger footwell frame floor assembly ground point | 29H |
| X138/1 | Front center console electrical connector | 23E |
| X138/6 | Rear center console electrical connector | 16H |
| X29/1 | Glove compartment electrical connector | 34G |
| X29/24 | Cockpit glove compartment electrical connector | 39G |
| Z149/2z1 | Center console wiring harness connector sleeve, circuit 58d | 19D |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 21E |
| Z1z14 | Circuit 31 connector sleeve | 9G |
| Z1z17 | Circuit 31 connector sleeve | 3G |
| Z1z9 | Circuit 31 connector sleeve | 28L |
| Z232/15z1 | Circuit 31 connector sleeve | 16E |
| Z6/30z4 | Circuit 31 connector sleeve | 5G |
| Z6/79z1 | Circuit 31 connector sleeve | 25L |
| Z6z4 | Circuit 31 connector sleeve | 43E |
