Remove/Install Telephone Antenna Splitter - AR82.70-P-8956LCM
Model 217.4
with code 379 (Telephone module with Bluetooth® (SAP profile))
with code 899 (Multifunction telephony)
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

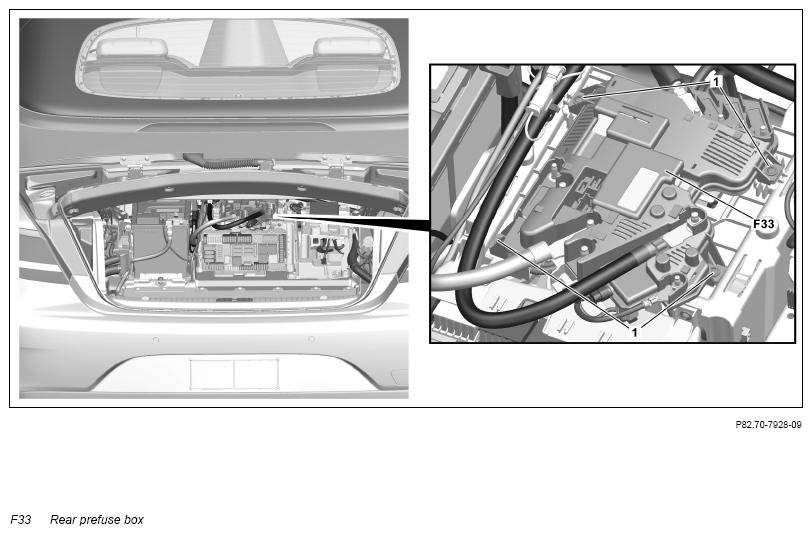

| 1 | Detach rear prefuse box (F33) and place to one side with electric lines still connected until telephone antenna changeover switch (A2/168) is accessible | AR54.15-P-1340LC | |

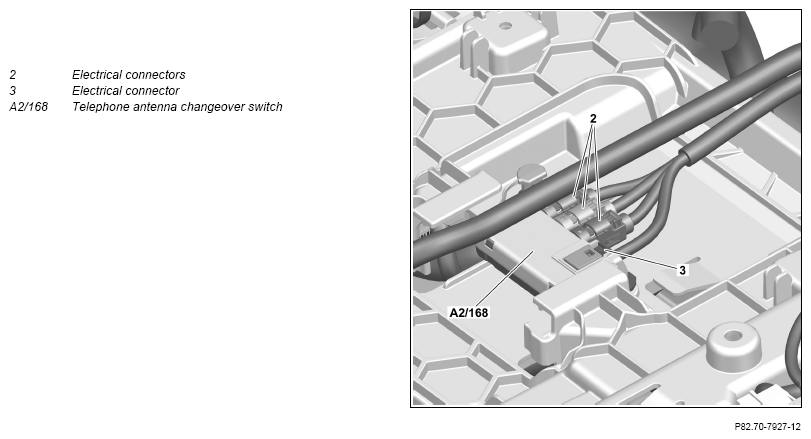

| 2 | Separate electrical connectors (2) | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unclip telephone antenna changeover switch (A2/168) upward and remove from vehicle | ||
| 5 | Install in the reverse order |
