Remove/Install Remote Parking Pilot/Stationary Heater/Telephony Antenna Splitter - AR82.70-P-0013LCN
Model 217.4
with code 379 (Telephone module with Bluetooth® (SAP profile))
with code 503 (Remote-controlled parking)
Model 217.4
with code 503 (Remote-controlled parking)
with code 899 (Multifunction telephony)

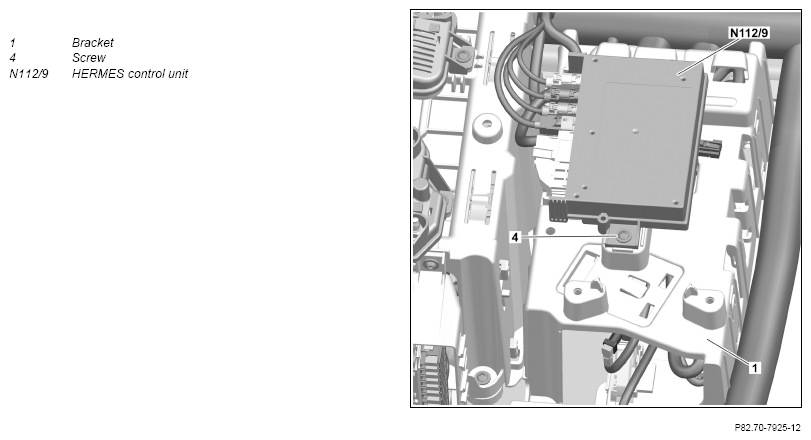

Shown on removed holder and hidden HERMES control unit
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove luggage compartment paneling | AR68.30-P-4820LCA | |
| 3 | Remove front luggage compartment lining | AR68.30-P-4602LCA | |
| 4 | Remove screw (4) and place HERMES control unit (N112/9) to one side with lines still connected | ||
| 5 | Disconnect electrical connectors from slots (2) | ||
| 6 | Disconnect electrical connector from slot (3) | ||

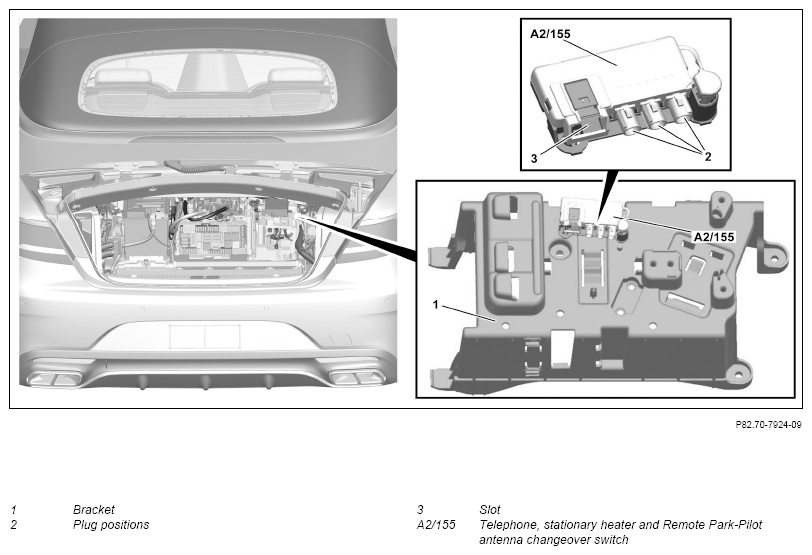

| 7 | Unclip telephone, stationary heater and Remote Parking Pilot antenna changeover switch (A2/155) upward from holder (1) and remove from vehicle | ||
| 8 | Install in the reverse order |
