Install Electrical Wiring Harness For DAB Tuner - AZ82.60-P-0031-03LC

Model 217.3

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK

Courtesy of MERCEDES-BENZ USA

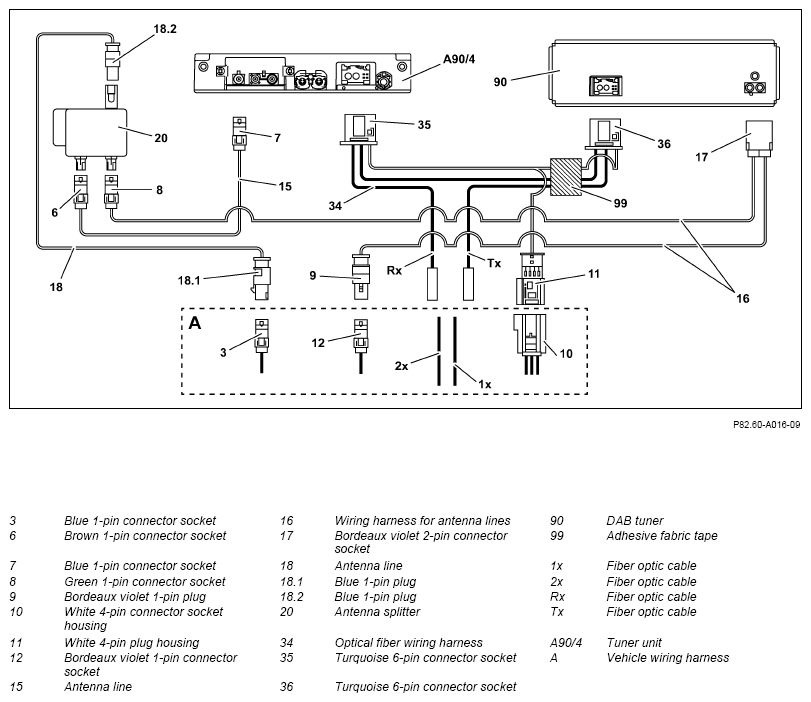

Wrap fiber-optic cables and electric lines of wiring harness for fiber-optic cables (34) with fabric tape (99).
Dimensions:
1. 150 mm
2. 20 mm
The turquoise 6-pin connector socket (36) is located at the end of the longer fiber-optic cables.

Courtesy of MERCEDES-BENZ USA
Connect white 4-pin connector socket housing (10) to white 4-pin plug housing (11).
Attach turquoise 6-pin connector socket (35) to tuner unit (A90/4).
Wrap fiber-optic cable adapter (26), white 4-pin connector socket housing (10) and white 4-pin plug housing (11) with fabric tape (52).

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
Route wiring harness for fiber-optic cables (34) to installation location of DAB tuner.
At a later point, the wiring harness for fiber-optic cables (34) is strapped down together with the wiring harness for antenna lines (16) and fixed in place with the felt bands (58).
