Install Waistline Reinforcement For Rear Fender - Ar63.50-P-0003-03LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

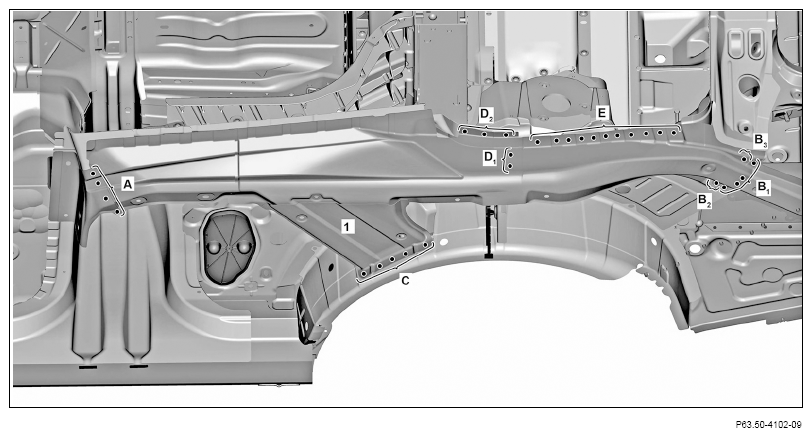

1. Install beltline reinforcement (1) for rear fender, fit and fix in place.
2. Beltline reinforcement (1) for rear fender (areas A, B₁ , B₂ , B ₃ , C, D₁ , D₂ and E)

   Courtesy of MERCEDES-BENZ USA

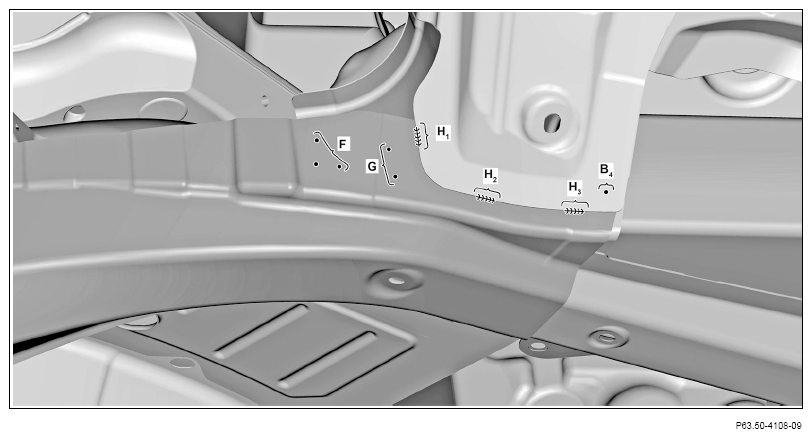

3. Beltline reinforcement (1) for rear fender (areas F, G and B₄ )

   Braze approx. 30 mm long seam.

4. Beltline reinforcement (1) for rear fender (areas H₁ , H₂ and H ₃ )
