Cut Off Rear Fender - Ar63.50-P-1400-02LC

Model 217.3

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

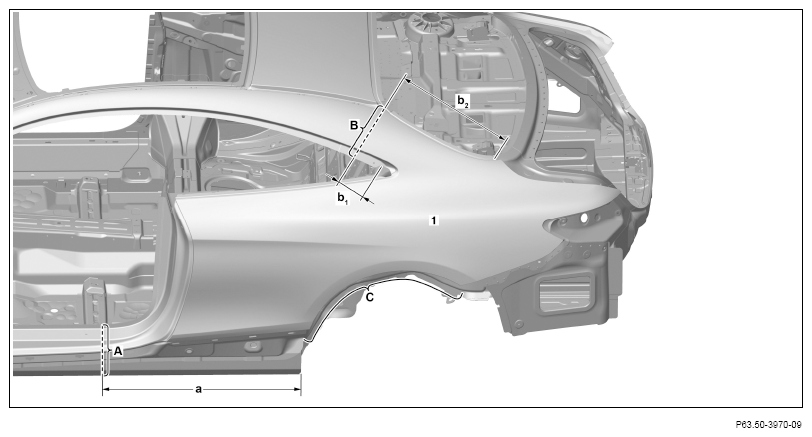

1. Mark separating points on rear fender (1) and cut (areas A and B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions:

   a = approx. 930 mm

   b₁ = approx. 90 mm

   b₂ = approx. 480 mm

   If connections are to be offset in area B, observe overlapping of approx. 10 mm.

   Separation point can be selected freely according to damage in consideration of foam parts and structural foam parts (area B).

2. Separate adhesive bead between outer rear wheel well and rear fender (1) (area C).

   The rear fender is bonded to the outer rear wheel well (1).

   Courtesy of MERCEDES-BENZ USA

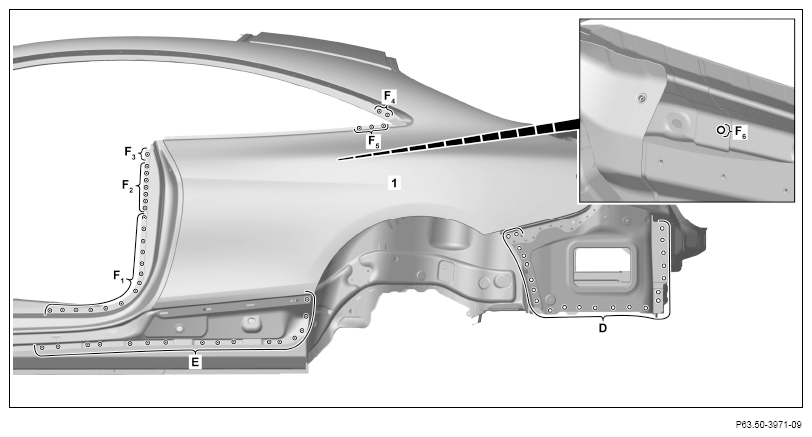

3. Drill clinch connections on rear fender (1) with Ø 6 mm (area D).

   The clinch connections can also be separated with a riveter for self-piercing and flow-form rivets.

4. Expose spot welds on rear fender (1) and cut out (areas F₁ , F₂ , F ₃ , F₄ , F₅ and E).

   Cut out weld spots through two sheet metal thicknesses (area F₂ ).

5. Expose rivet on rear fender (1) and drill out (area F₆ ).

   Courtesy of MERCEDES-BENZ USA

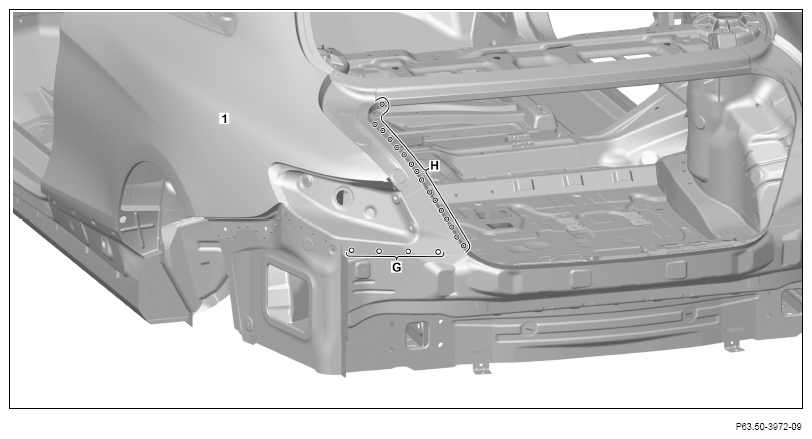

6. Expose self-piercing riveting on rear longitudinal member (1) and drill with Ø 6 mm (area G).
7. Expose spot welds on rear fender (1) and cut out (area H).

   Courtesy of MERCEDES-BENZ USA

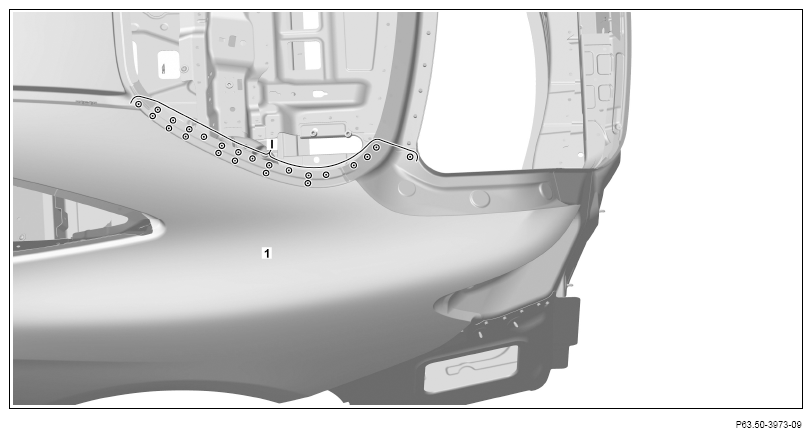

8. Expose spot welds on rear fender (1) and cut out (area I).

   Courtesy of MERCEDES-BENZ USA

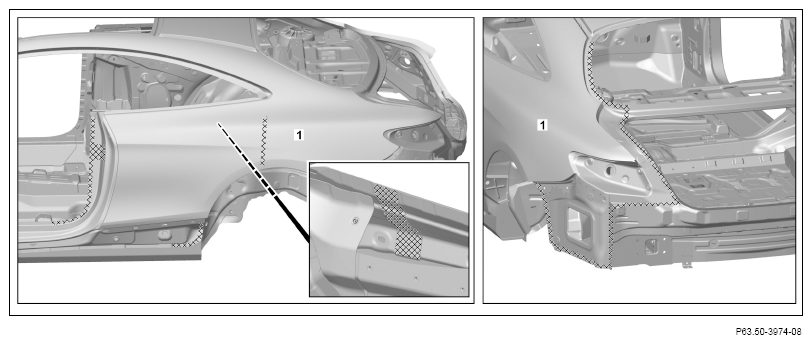

9. Heat rear fender (1) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

   Courtesy of MERCEDES-BENZ USA

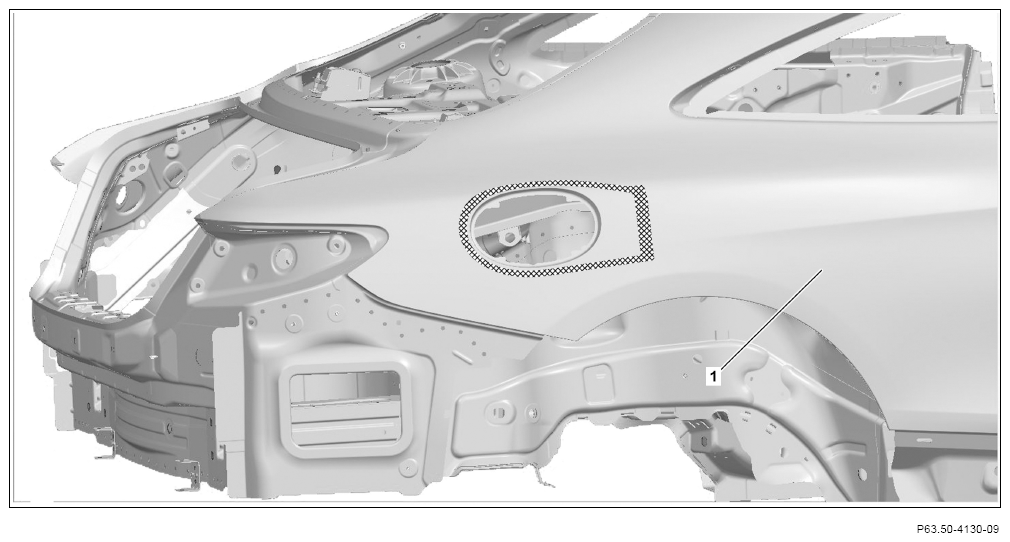

10. Heat rear fender (1) in crosshatched area.

    Remove rear fender (1).

    Cross-hatched area is bonded.

11. Right side of vehicle.

    Courtesy of MERCEDES-BENZ USA

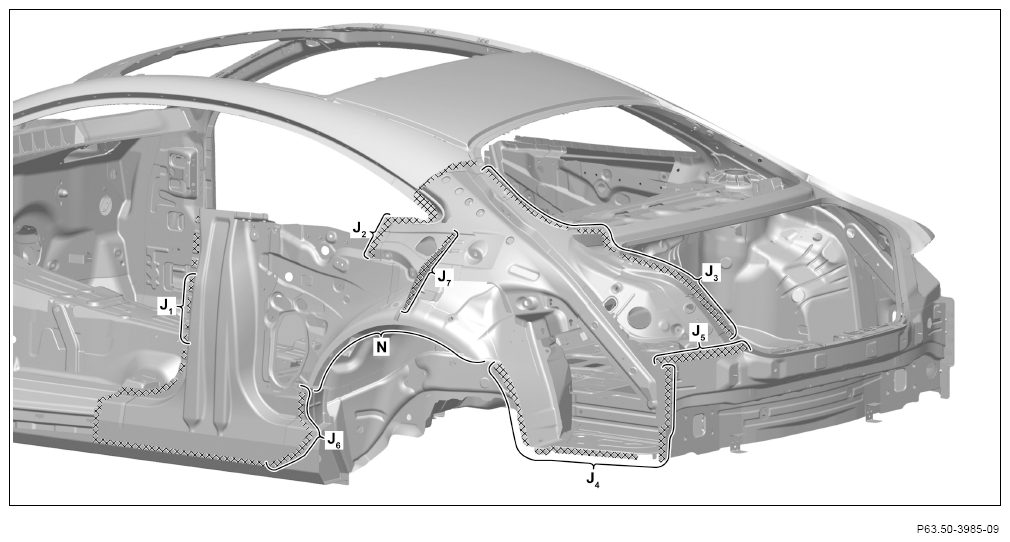

12. Remove remaining adhesive material in area of outer rear wheel well (area N).
13. Remove loose remaining adhesive material.

    A maximum of 2 mm of adhesive may be left.

14. Repair bare parts with touchup applicator.
15. Sand down mating surfaces to bare metal in cross-hatched areas.
16. Sand down spot weld flanges to bare metal on both sides.
17. Remove grinding dust and drill chips.
18. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas J₁ , J₂ , J₃ , J ₄ , J₅ , and J₆ ).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
