Remove Rear CROSSMEMBER - Ar64.20-P-1100-01LF

MODEL 217.3

MODEL 222

Courtesy of MERCEDES-BENZ USA

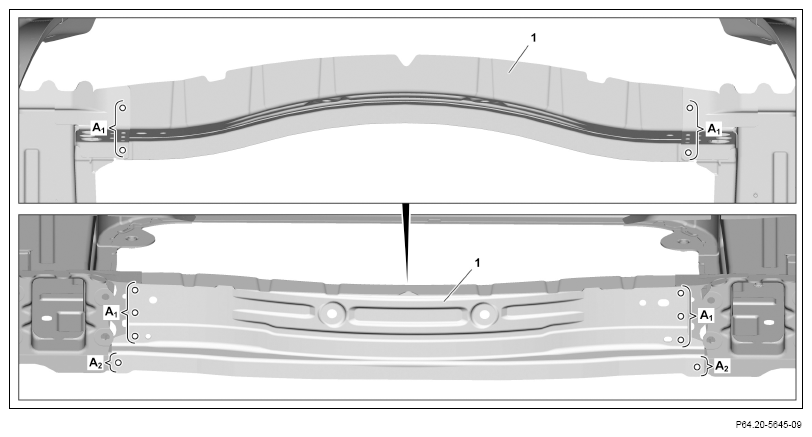

Shown on MODEL 222

1. Expose self-piercing rivet on rear crossmember (1) and drill with Ø 6 mm bit (areas A₁ ).

   The self-piercing rivets can also be separated with a riveter for self-piercing and flow-form rivets.

2. Expose clinch connections on rear crossmember (1) and drill with Ø 6 mm bit (areas A₂ ).

   The clinch connections can also be separated with a riveter for self-piercing and flow-form rivets.

   Courtesy of MERCEDES-BENZ USA

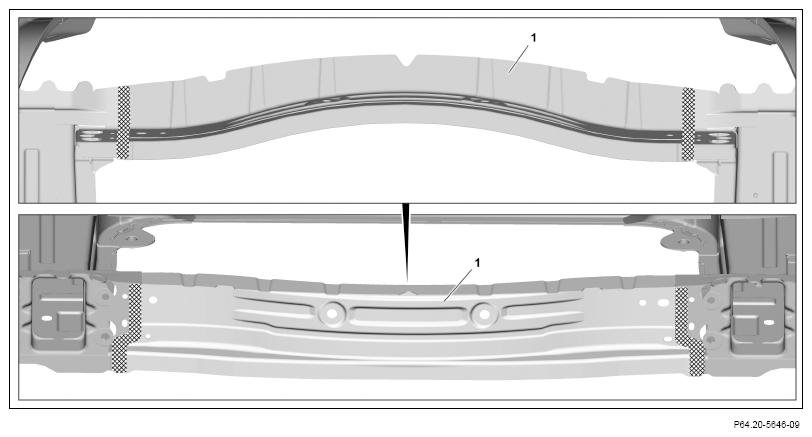

   Shown on MODEL 222

3. Heat rear crossmember (1) in crosshatched areas.

   Cross-hatched areas are bonded.

4. Remove rear crossmember (1).

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 222

5. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar side wall.

   Observe pretreatment of bonding surfaces.
