Remove Rear CROSSMEMBER - Ar64.20-P-1100-01LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

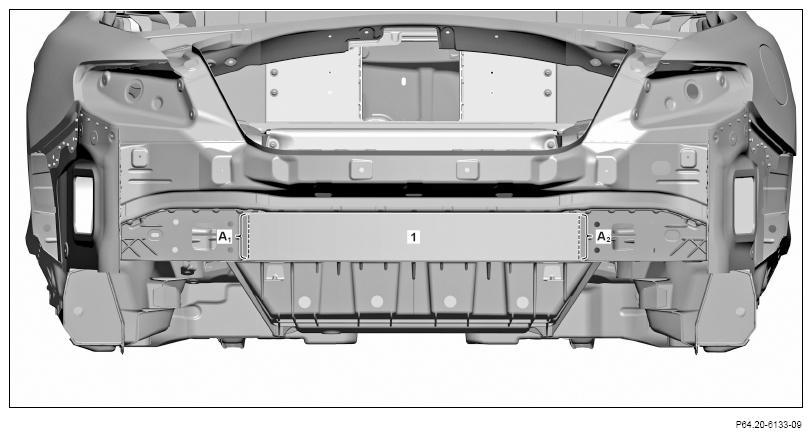

1. Expose weld seams on rear crossmember (1) and cut (areas A₁ and A₂ ).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Position separating points along welds.

   Courtesy of MERCEDES-BENZ USA

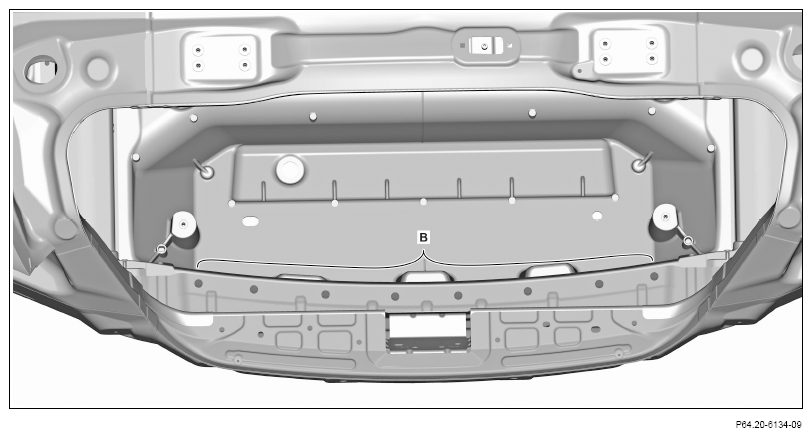

2. Unscrew flow hole bolts (area B).

   Courtesy of MERCEDES-BENZ USA

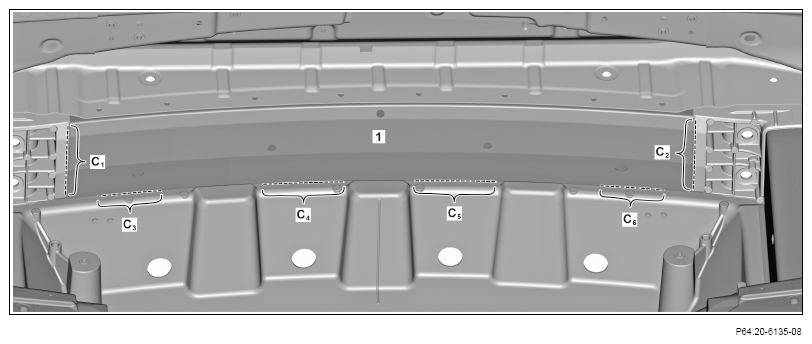

3. Expose weld seams on rear crossmember (1) and cut (areas C₁ , C ₂ , C₃ , C ₄ , C₅ and C ₆ ).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Position separating points along welds.

   Courtesy of MERCEDES-BENZ USA

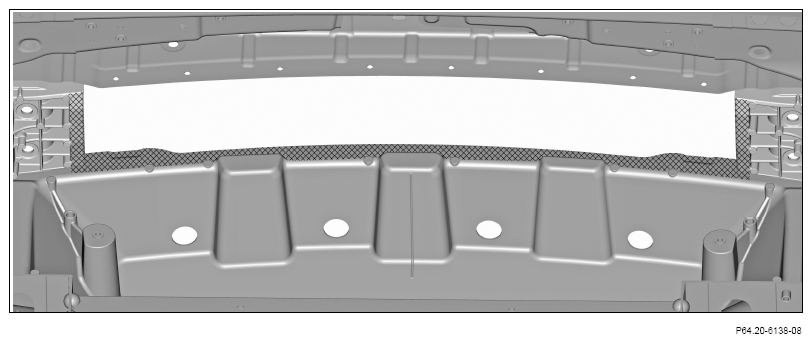

4. Heat rear crossmember (1) in crosshatched area.

   Cross-hatched area is bonded.

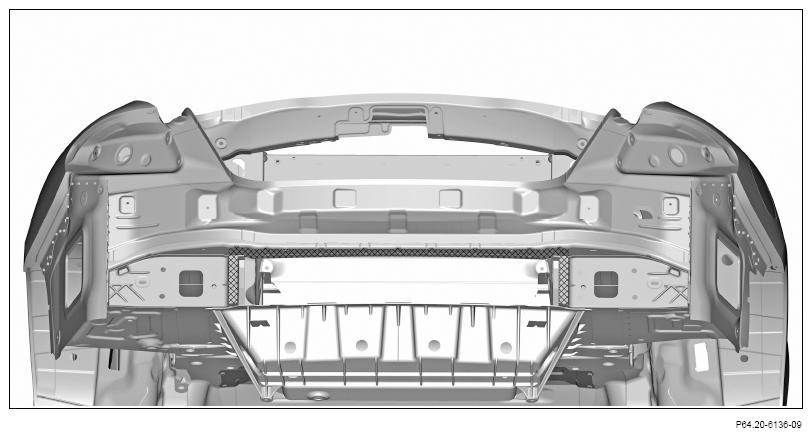

5. Remove rear crossmember (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

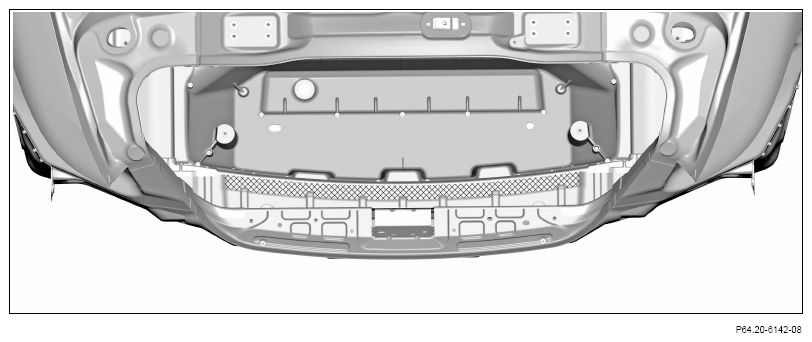

6. Grind weld seams down flat.
7. Grind mating surfaces down to bare metal in crosshatched area.

   Observe pretreatment of bonding surfaces.

8. Remove grinding dust.
