Prepare Bottom Rear Center Section For Installation - Ar64.20-P-1000-07LF

MODEL 217.3

MODEL 222

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222

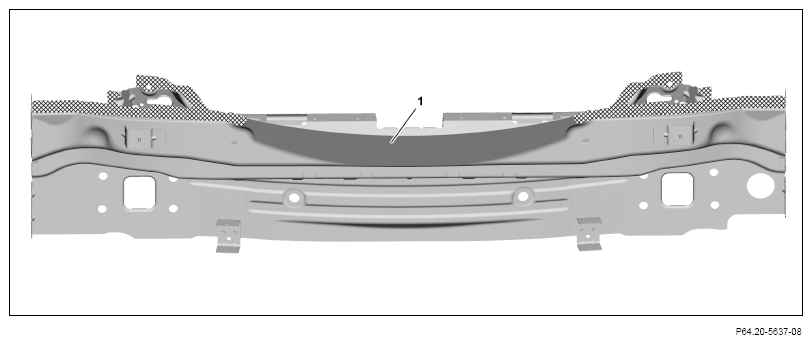

1. Grind mating surfaces on rear center section (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 222

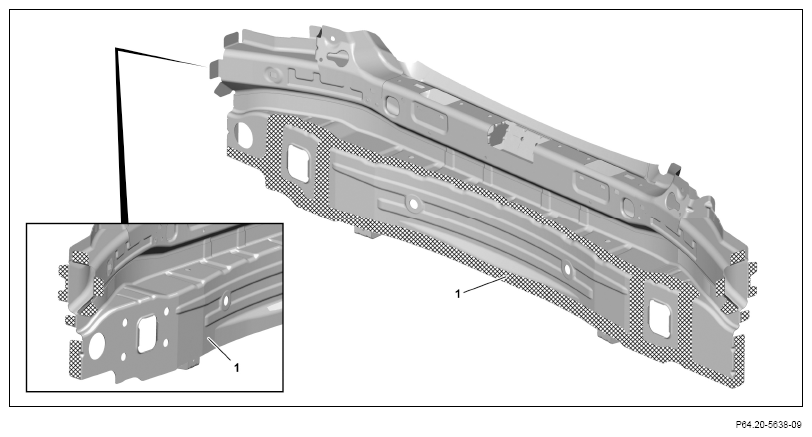

2. Grind mating surfaces on rear center section (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

3. Remove grinding dust.
