Prepare Bottom Rear Center Section For Installation - Ar64.20-P-1000-07LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

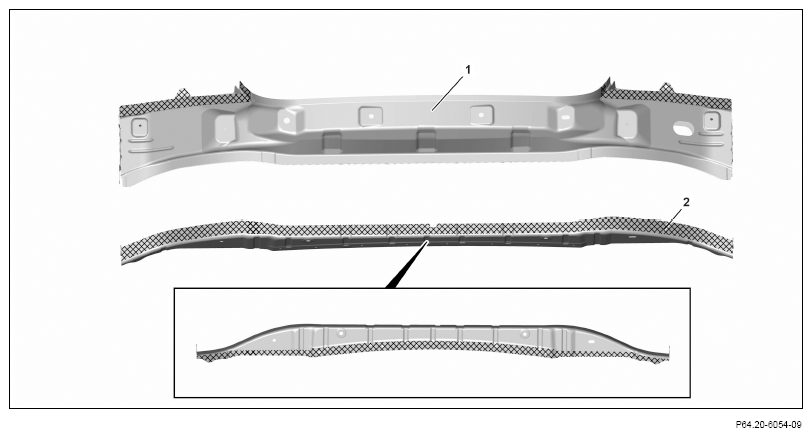

1. Grind mating surfaces on bottom rear center section (1) and bottom rear center section mount (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

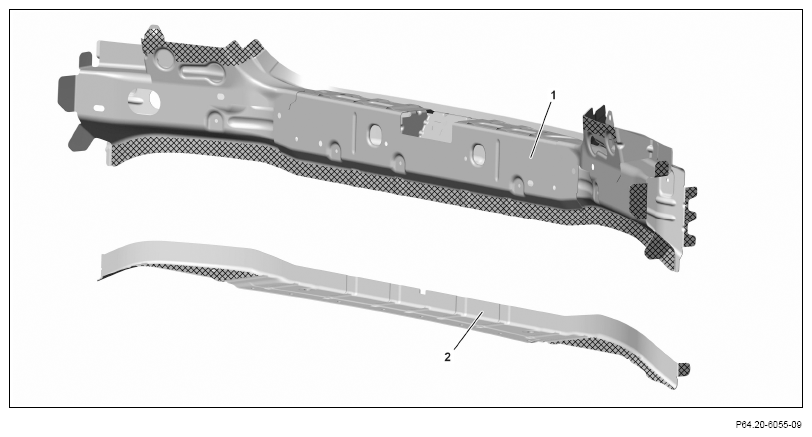

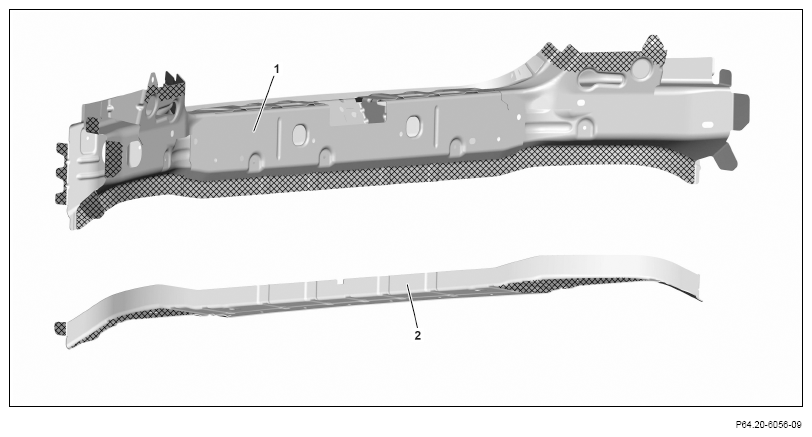

2. Grind mating surfaces on bottom rear center section (1) and bottom rear center section mount (2) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

3. Remove grinding dust.
