Install Rear Center Section - Ar64.20-P-1050-04LCA
Model 217.4
The higher-level service document as well as the safety information in the service document must be observed.
- Install bottom rear-end center section (1) and fit.
- Install bottom rear-end center section mount (2) and fit.
- Install rear bumper and fit.
- Install tail lamps and fit.
- Install seal and fit.
- Install lock striker and fit.
- Check gaps using
feeler gauge and adjust.
- Fix bottom rear center section (1) and bottom rear center section mount (2) in place.
- Remove striker eye.
- Remove seal.
- Remove taillamps.
- Remove rear bumper.

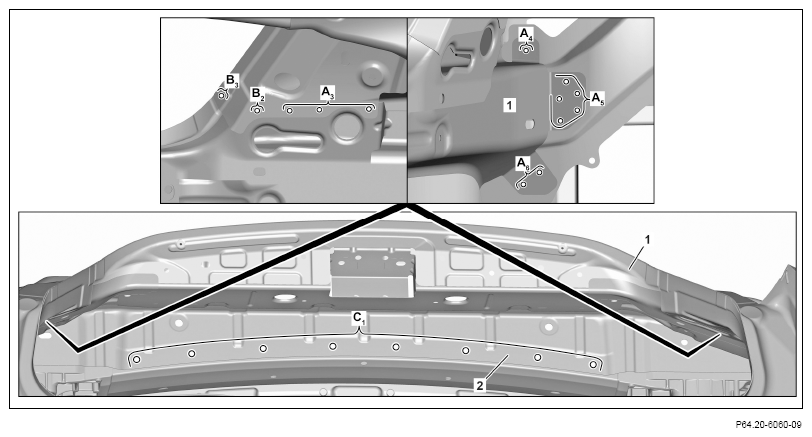

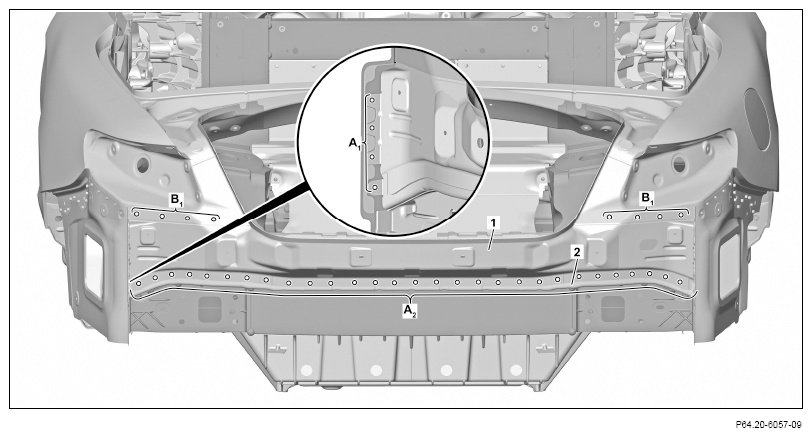

- Drill rivet holes on bottom rear-end center section (1) with a diameter of 6.7 mm and countersink (areas B1).
- Drill rivet holes on bottom rear-end center section (1) and bottom rear-end center section mount (2) with a diameter of 6.7 mm (areas A1).
Only if a riveter for punching and flow form rivets is not used for installation.
- Drill rivet holes on bottom rear-end center section (1) and mount bottom rear-end center section (2) with a diameter of 6.7 mm (area A2).
Drill rivet holes in center of overlap of bottom rear center section (1) and bottom rear center section mount (2) at a distance of 55 mm to one another.
- Mark position on rivet holes of bottom rear center section (1).
The distance of the rivet holes to the outer edge must be at least 10 mm.

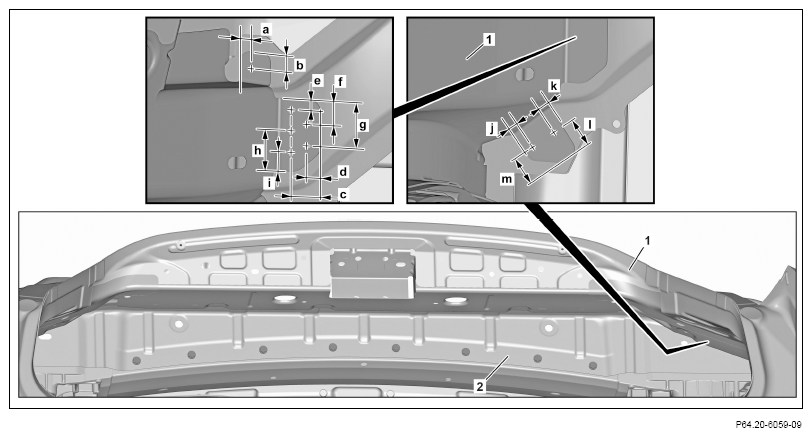

Dimensions:
a = approx. 17 mm
b = approx. 11 mm
c = approx. 22 mm
d = approx. 11 mm
e = approx. 15 mm
f = approx. 25 mm
g = approx. 43 mm
h = approx. 26 mm
i = approx. 11 mm
j = approx. 11 mm
k = approx. 11 mm
l = approx. 20 mm
m = approx. 25 mm
- Drill rivet holes on the bottom rear-end center section (1) with a diameter of 6.7 mm (area B3
).
Only if a riveter for punching and flow form rivets is not used for installation.
- Drill rivet holes on the bottom rear-end center section (1) with a diameter of 6.7 mm (area E2 ).
- Drill rivet holes on bottom rear-end center section (1) with a diameter of 6.7mm (areas A3
, A4
, A5
, A6
).
The distance of the rivet holes to the outer edge must be at least 10 mm.
- Drill rivet holes on the bottom rear-end center section mount (2) with a diameter of 6.7 mm (area C1
).
Drill through present bolt holes.
- Remove bottom rear center section (1).
- Deburr rivet holes on bottom rear center section (1) and body on both sides.
- Remove drilling chips.

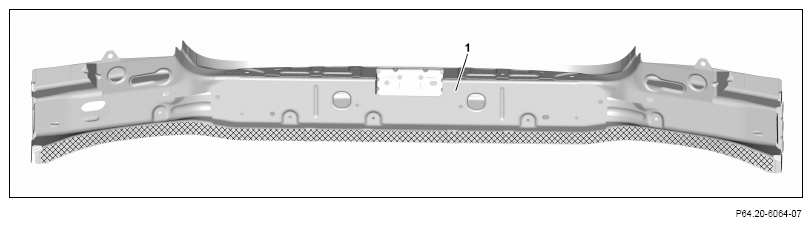

- Apply 2-component adhesive to crosshatched area of body.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

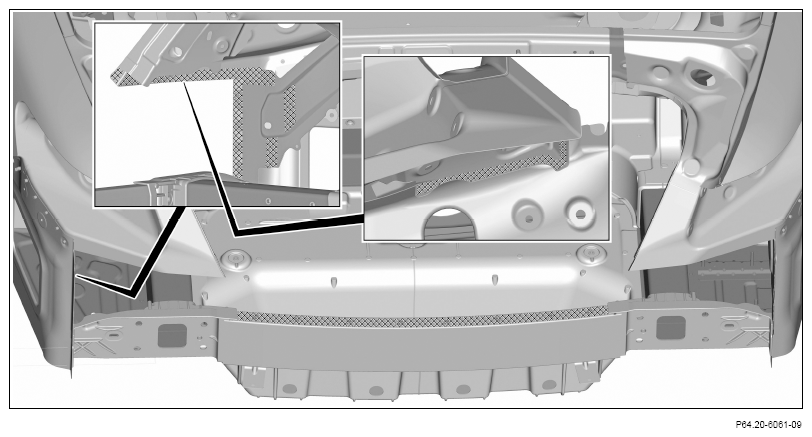

- Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- install bottom rear center section (1) and fix in place.

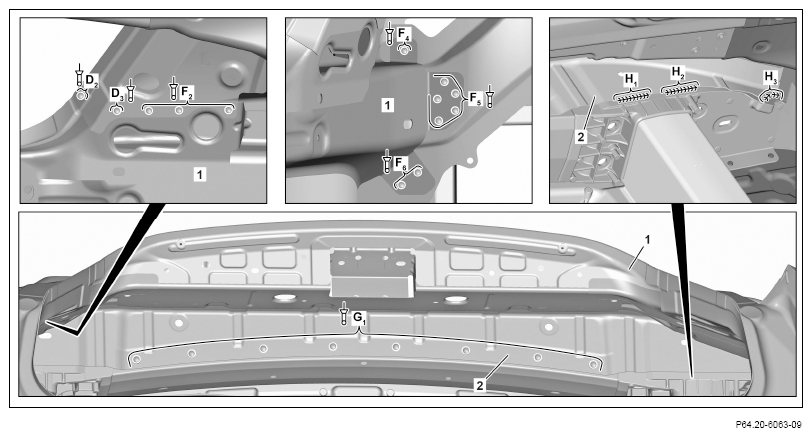

- Rivet bottom rear-end center section (1) with blind rivets with a diameter of 6.4 x 12 (areas D1 ).
- Rivet bottom rear-end center section (1) with blind rivets with a diameter of 6.5 x 12.5 (areas F1
).
Flow form rivets with structure 4 mm to 5.15 mm clamping range (S3) can also be used if a riveter for punching and flow form rivets is used for installation (area F1 ).
- Rivet bottom rear-end center section (1) with blind rivets with a diameter of 6.5 x 12.5 (areas E1
).
Flow form rivets with structure 4 mm to 5.15 mm clamping range (S3) can also be used if a riveter for punching and flow form rivets is used for installation (area E1 ).
- Arrest transition between bottom rear center section (1) and rear fender at bead edge for seal with clamping pliers until 2-component adhesive has cured.
- Rivet bottom rear-end center section (1) with blind rivets with a diameter of 6.4 x 12 (areas D2
, D3
, F2
, F4
, F5
, F6
).
%flow form rivets with structure up to 3.5 mm clamping range (S1) can also be used if a riveter for punching and flow form rivets is used for installation (area D2 ).
- Rivet bottom rear-end center section mount (2) with blind rivets with a diameter of 6.5 x 12.5 (area G1 ).
- Bottom rear-end center section mount (2) on longitudinal member console
(areas H1 , H2 , H3 ).
Perform inert gas welds as stitch welds with a length of approx. 55 mm (H1 , H2 , H3 ).
