Install Rear CROSSMEMBER - Ar64.20-P-1100-05LF

MODEL 217.3

MODEL 222

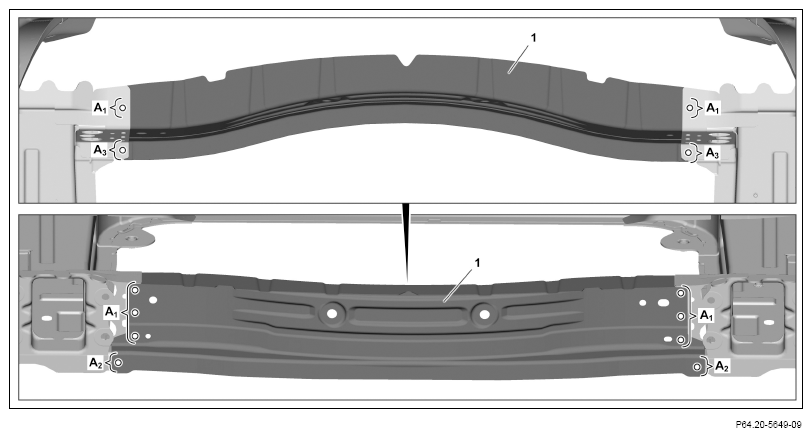

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 222

1. Install rear crossmember (1), fit and fix in place.
2. Drill Ø 6.7 mm rivet holes in rear crossmember (1) (areas A₁ ).

   Only if riveter for punch and flow form rivets is used for installation.

   Rivet holes are drilled later when installing bottom rear center section (areas A₂ ).

3. Drill Ø 6.7 mm rivet holes in rear crossmember (1) and countersink (areas A₃ ).

   Only if riveter for punch and flow form rivets is used for installation.

4. Remove rear crossmember (1).
5. Deburr rivet holes on rear crossmember (1) and body on both sides.
6. Remove drilling chips.

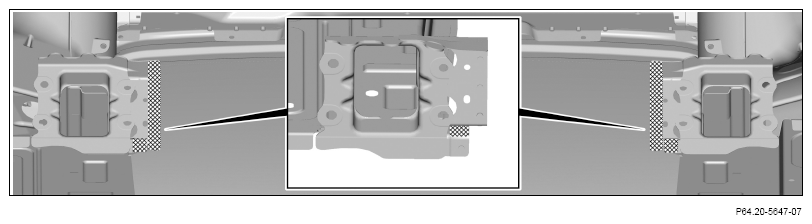

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 222

7. Apply 2-component adhesive to body in crosshatched areas.

   Observe pretreatment of bonding surfaces. Observe manufacturer's specifications for drying and processing time of adhesive.

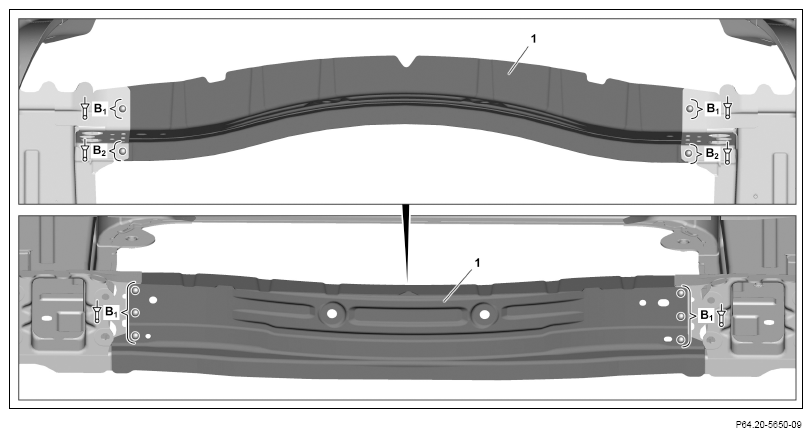

   Courtesy of MERCEDES-BENZ USA

   Shown on MODEL 222

8. Install rear crossmember (1) and fix in place.
9. Rivet rear crossmember (1) with Ø 6, 5x12 5 rivet (areas B₁ ).

   Flow-form rivets with a clamping range of up to 3.5 mm "S1" can also be used, if a riveter for self-piercing and flow-form rivets is used for installation.

10. Rivet rear crossmember (1) with Ø 6.4x14 rivet (areas B₂ ).

    Flow-form rivets with a clamping range of up to 3.5 mm "S1" can also be used, if a riveter for self-piercing and flow-form rivets is used for installation.
